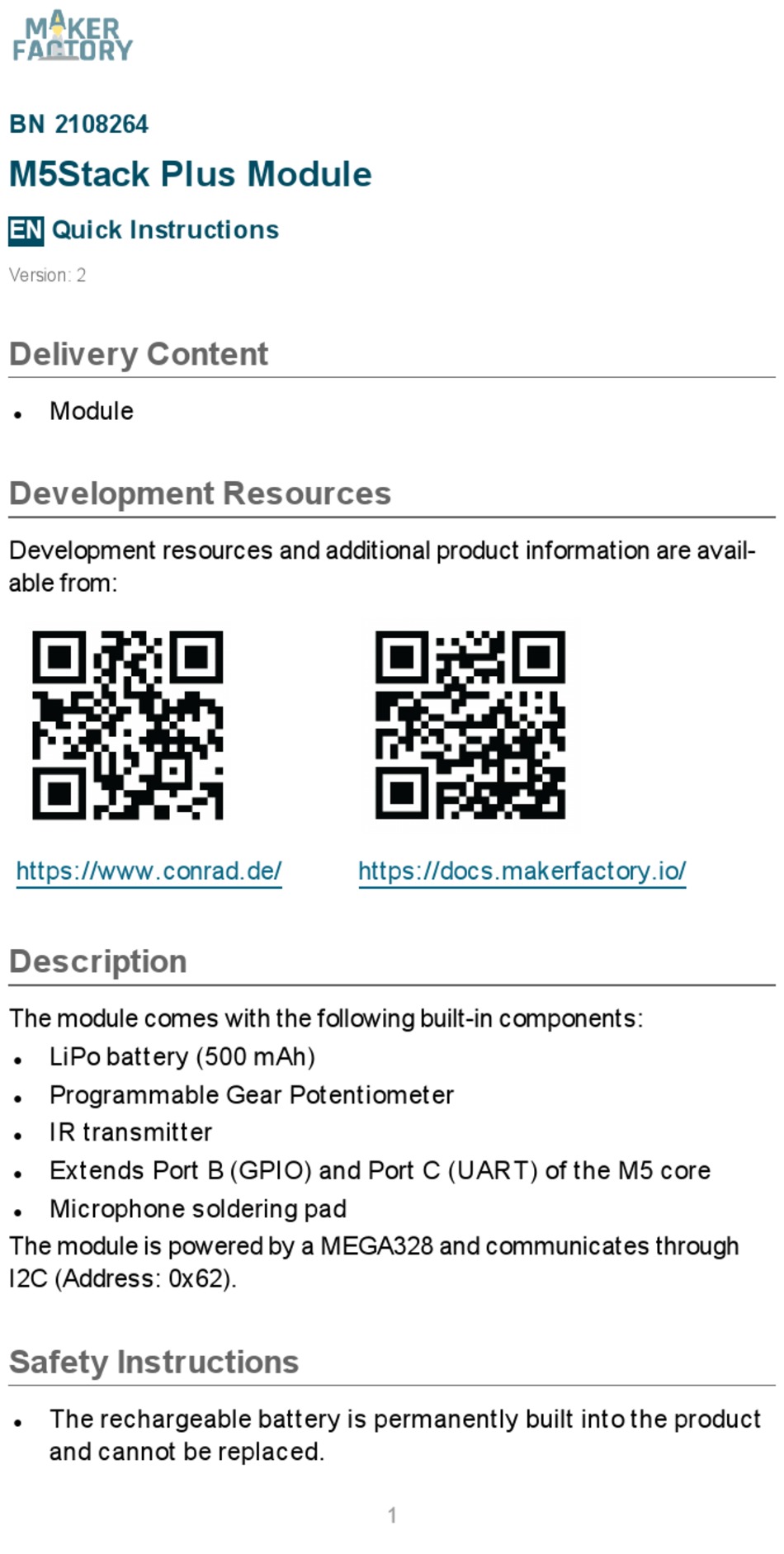

BN 2108264
M5Stack Plus Module
EN
Quick Instructions
Version: 2
Delivery Content
Module
l
Development Resources
Development resources and additional product information are avail-
able from:
https://www.conrad.de/
Description
The module comes with the following built-in components:
LiPo battery (500 mAh)
l
Programmable Gear Potentiometer
l
IR transmitter
l
Extends Port B (GPIO) and Port C (UART) of the M5 core
l
Microphone soldering pad
l
The module is powered by a MEGA328 and communicates through
I2C (Address: 0x62).
Safety Instructions
The rechargeable battery is permanently built into the product
l
and cannot be replaced.
https://docs.makerfactory.io/
1
