Inhaltszusammenfassung für Maker Factory HC-05 SPP
Seite 1

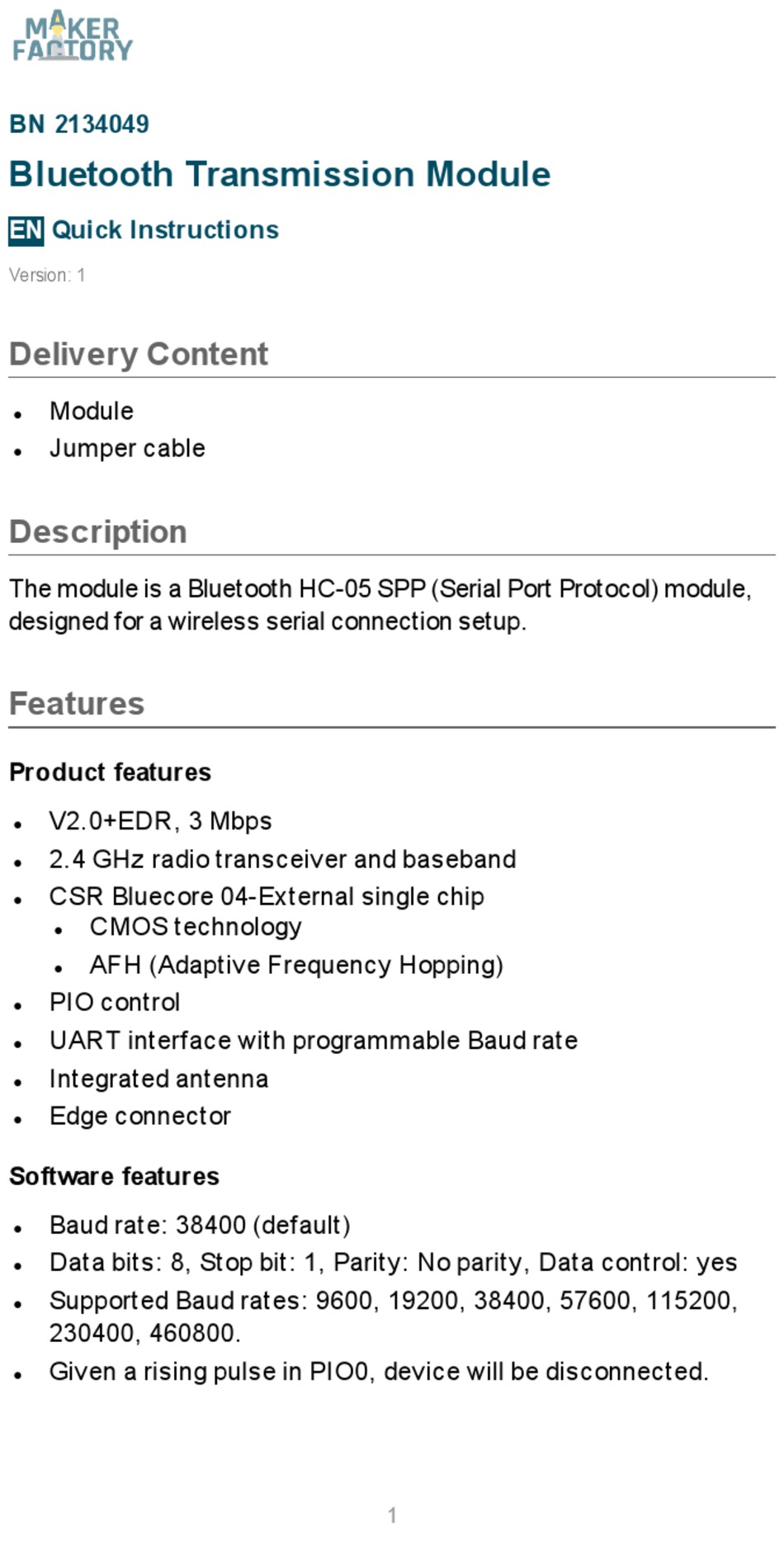

Quick Instructions Version: 1 Delivery Content Module Jumper cable Description The module is a Bluetooth HC-05 SPP (Serial Port Protocol) module, designed for a wireless serial connection setup. Features Product features V2.0+EDR, 3 Mbps 2.4 GHz radio transceiver and baseband...
Status instruction port PIO1: low (disconnected) high (connected) PIO10 and PIO11 can be connected to red and blue LED sep- arately. When master and slave are paired, red and blue LED blinks 1 time/2s, while disconnected only the blue LED blinks 2 times/s.
Legal Notice This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D- 92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data pro- cessing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
Kurzanleitung Version: 1 Lieferumfang Modul Brückenkabel Beschreibung Das Modul ist ein Bluetooth HC-05 SPP (Serial Port Protocol) Modul, das für eine drahtlose serielle Verbindung entwickelt wurde. Produktmerkmale Produktmerkmale V2.0+EDR, 3 Mbps 2,4 GHz Radio Transceiver und Baseband CSR Bluecore 04-External Single Chip...
Status des PIO1 Ports: niedrig (getrennt) hoch (verbunden) PIO10 und PIO11 lassen sich getrennt an die rote und blaue LED koppeln. Wenn Master und Slave gekoppelt sind, blinkt die rote und blaue LED 1 mal/2s. Während die Verbindung getrennt ist, blinkt nur die blaue LED 2 mal/s. Verbindet sich beim Einschalten automatisch mit dem letzten Gerät (default).
Datenrate (max.) 3 Mbps Empfindlichkeit -80 dBm 9600, 19200, 38400, 57600, 115200, Unterstützte Baudraten 230400, 460800 Frequenz 2,402 - 2,480 GHz Sendeleistung (max.) +4 dBm Sendereichweite (max.) 10 m Abmessungen (ca.) 36 x 16 x 10 mm Gewicht (ca.) Konformitätserklärung (DOC) Hiermit erklärt Conrad Electronic SE, Klaus-Conrad-Straße 1, D- 92240 Hirschau, dass dieses Produkt der Richtlinie 2014/53/EU ent- spricht.
Seite 8
Impressum Dies ist eine Publikation der Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). Alle Rechte einschließlich Übersetzung vorbehalten. Reproduktionen jeder Art, z. B. Fotokopie, Mikroverfilmung, oder die Erfassung in elek- tronischen Datenverarbeitungsanlagen, bedürfen der schriftlichen Genehmigung des Herausgebers. Nachdruck, auch auszugsweise, verboten.
