3. BEFORE INSTALLATION

Upon receipt of the device, check for any damages on packaging or product. DO NOT
PROCEED with installation if any damages is found, contact your supplier.
Do not use extension leads with the device. This can pose a danger particularly in the vicinity of a
swimming pool.
Make sure the place you choose for installation meets the following conditions:
- Ambient temperature from -10~42°C
- 45 to 90 percent relative humidity, non-condensing
- Below 1000m above sea level
- No direct sunlight
- Good ventilation

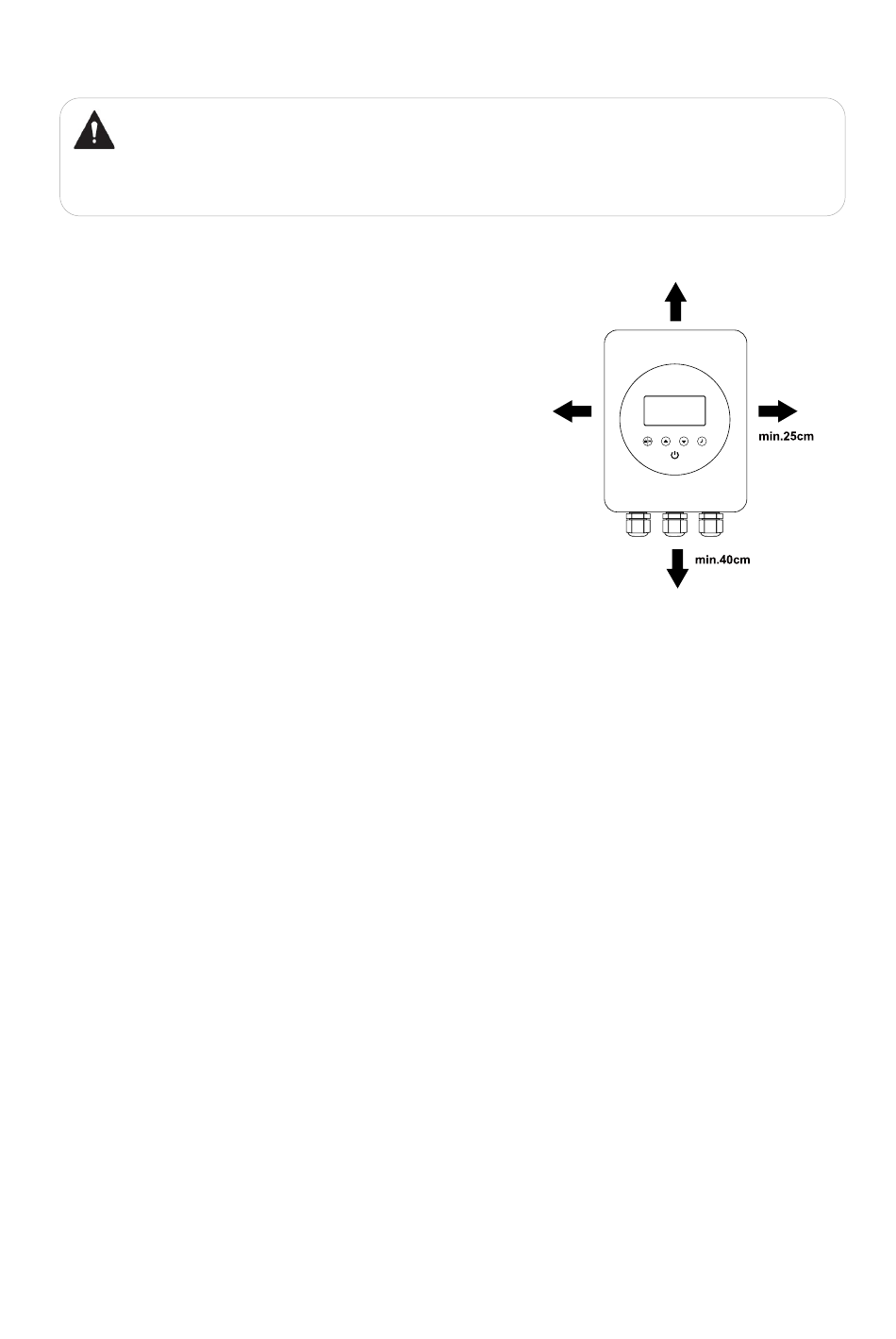

For an efficient cooling, please make sure it is installed
with a minimum clearance surrounding it (Fig2), a blocked
ventilation or an enclosed space with limited air flow may
cause over heat or potential cease of working of the unit.

4. CONNECTING TO POOL PUMP

Please follow these steps and the wiring diagram for correct connection. The warranty may be
compromised if the device is not installed in accordance with instructions described in this
manual
Only 1 pump can be connected to the inverter. Please do not connect any other appliance to the
output.
Mark the hole locations on the wall, install the expansion plugs supplied, fit in the screws and
hang the device on screws.
4.1 Turn off all electrical supply to the pool pump, unplug it from the main switch or at the
chlorinator which provides electrical power to the pump.
4.2 Plug the pool pump into the device's power outlet (marked PUMP CONNECTION ONLY).
4.3 Plug the device into the main switch/chlorinator/timer connection where the pump was
originally plugged into.
4.4 Switch all power back on.
4.5 Ensure chlorinator/timer is active.
4.6 Now the device is ready to run.
2
Fig. 2
