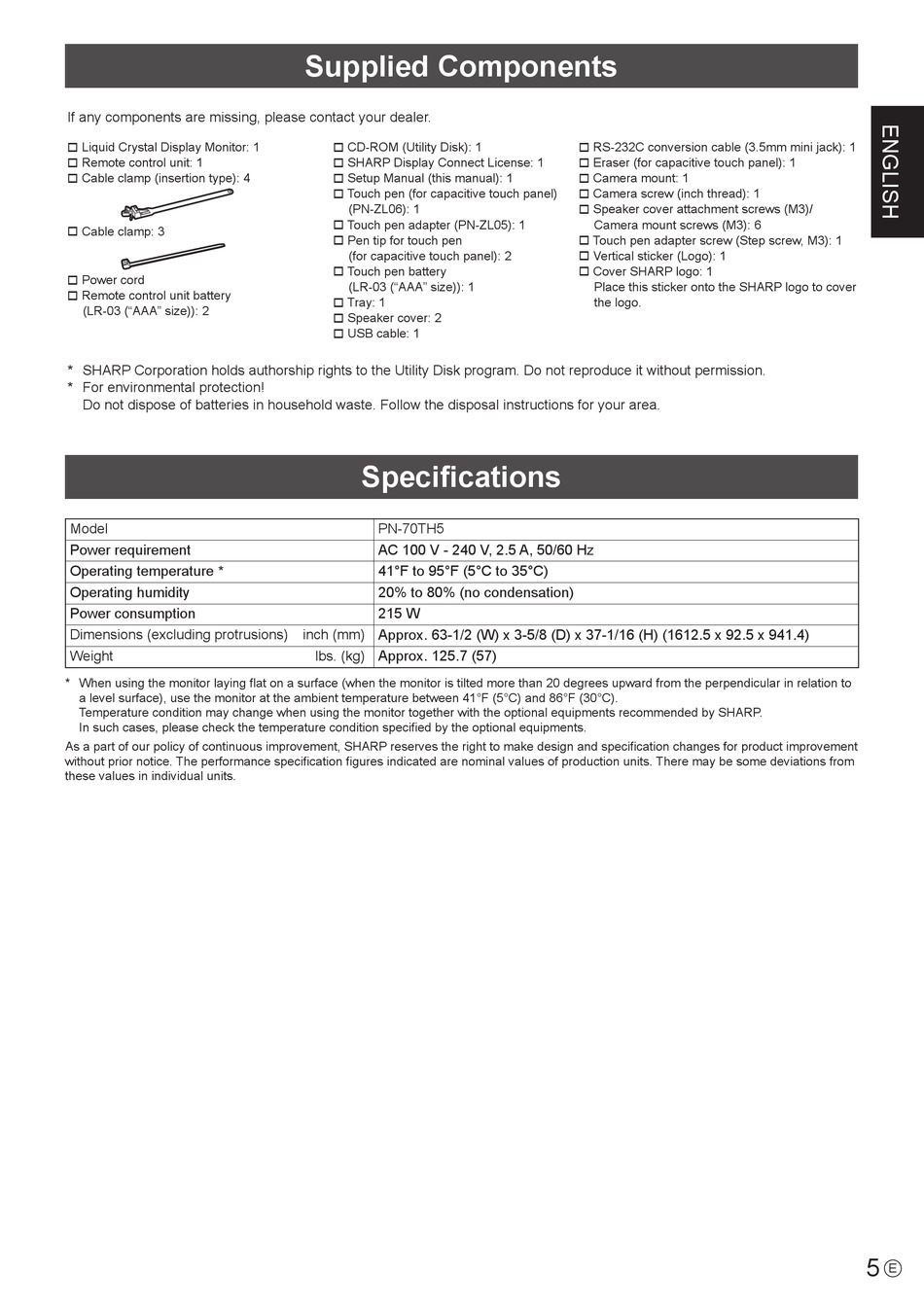

Supplied Components; Specifications - Sharp PN Serie Installationsanleitung

If any components are missing, please contact your dealer.
 Liquid Crystal Display Monitor: 1
 Remote control unit: 1
 Cable clamp (insertion type): 4
 Cable clamp: 3
 Power cord
 Remote control unit battery
(LR-03 ("AAA" size)): 2
* SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.
* For environmental protection!
Do not dispose of batteries in household waste. Follow the disposal instructions for your area.
Model
Power requirement
Operating temperature *
Operating humidity
Power consumption
Dimensions (excluding protrusions) inch (mm) Approx. 63-1/2 (W) x 3-5/8 (D) x 37-1/16 (H) (1612.5 x 92.5 x 941.4)
Weight
* When using the monitor laying flat on a surface (when the monitor is tilted more than 20 degrees upward from the perpendicular in relation to
a level surface), use the monitor at the ambient temperature between 41°F (5°C) and 86°F (30°C).
Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP.
In such cases, please check the temperature condition specified by the optional equipments.
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement
without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from
these values in individual units.

Supplied Components

 CD-ROM (Utility Disk): 1
 SHARP Display Connect License: 1
 Setup Manual (this manual): 1
 Touch pen (for capacitive touch panel)
(PN-ZL06): 1
 Touch pen adapter (PN-ZL05): 1
 Pen tip for touch pen
(for capacitive touch panel): 2
 Touch pen battery
(LR-03 ("AAA" size)): 1
 Tray: 1
 Speaker cover: 2
 USB cable: 1

Specifications

PN-70TH5
AC 100 V - 240 V, 2.5 A, 50/60 Hz
41°F to 95°F (5°C to 35°C)
20% to 80% (no condensation)
215 W
lbs. (kg) Approx. 125.7 (57)
 RS-232C conversion cable (3.5mm mini jack): 1
 Eraser (for capacitive touch panel): 1
 Camera mount: 1
 Camera screw (inch thread): 1
 Speaker cover attachment screws (M3)/
Camera mount screws (M3): 6
 Touch pen adapter screw (Step screw, M3): 1
 Vertical sticker (Logo): 1
 Cover SHARP logo: 1
Place this sticker onto the SHARP logo to cover
the logo.
