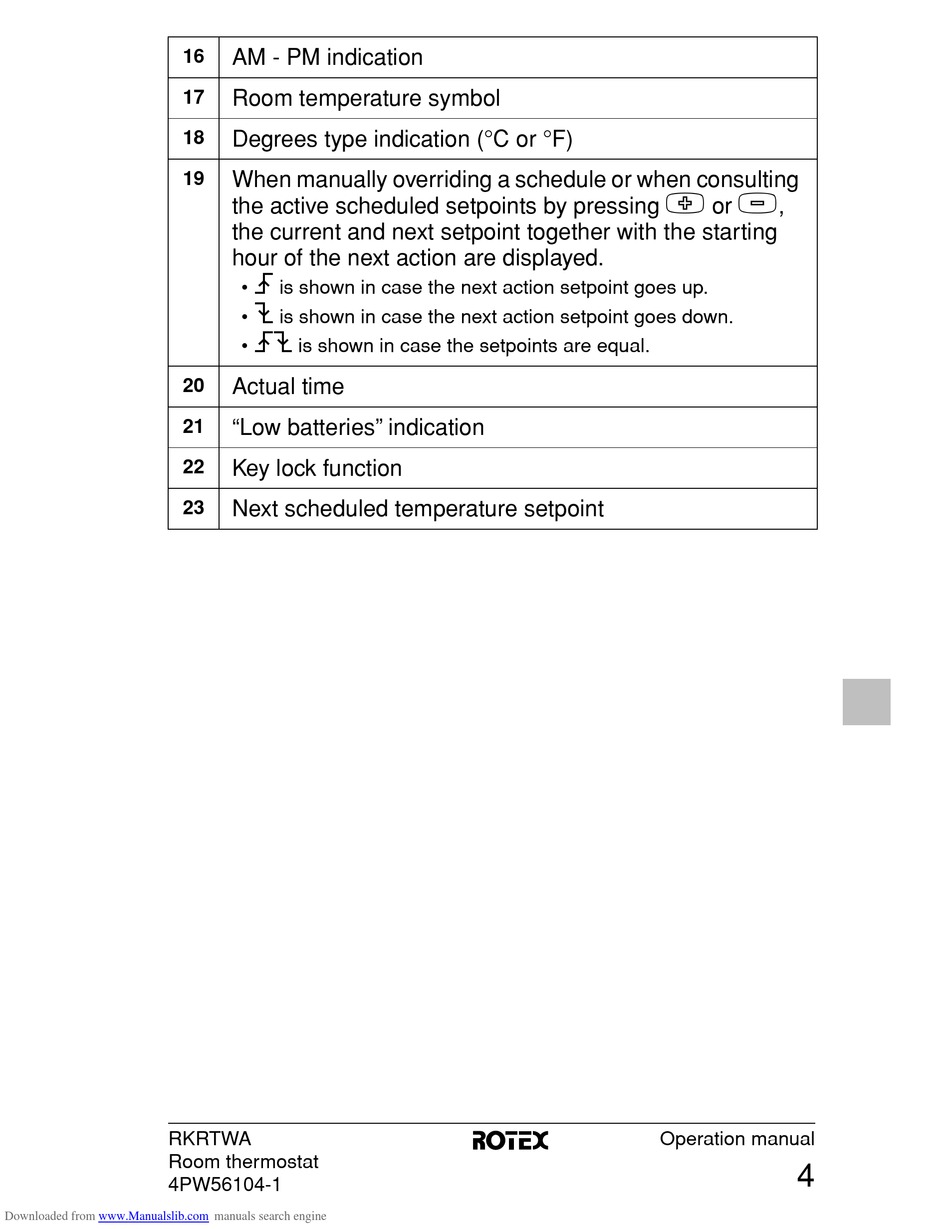

Rotex RKRTWA Bedienungsanleitung Seite 29

16
17
18
19
20
21
22
23
RKRTWA
Room thermostat
4PW56104-1
Downloaded from www.Manualslib.com
AM - PM indication
Room temperature symbol
Degrees type indication (°C or °F)
When manually overriding a schedule or when consulting
the active scheduled setpoints by pressing
the current and next setpoint together with the starting
hour of the next action are displayed.
V
• is shown in case the next action setpoint goes up.
W
• is shown in case the next action setpoint goes down.
VW
• is shown in case the setpoints are equal.
Actual time
"Low batteries" indication
Key lock function
Next scheduled temperature setpoint
manuals search engine

or ,
Operation manual
4
