Installationsanleitung
IQ8TAL Technischer Alarmbaustein
Installation Instruction
IQ8TAL Technical Alarm Module
(Art.-Nr. / Part No. 804868)
Technische Änderungen vorbehalten!
798928
Technical changes reserved!
D
GB
02.2014 / AA
© 2014 Honeywell International Inc.
Novar GmbH a Honeywell Company
Dieselstraße 2, D-41469 Neuss
Internet:
www.esser-systems.com
E-Mail:
info@esser-systems.com
D
Verdrahtungsfolge der Ringleitung beachten!
Klemmen 1-4 IN (Eingang)  OUT (Ausgang).
Fernmeldekabel I-Y (St) Y n x 2 x 0,8 mm mit besonderer
Kennzeichnung oder Brandmeldekabel verwenden!
Durch den Anschluss der Kabelabschirmung werden die
Signalleitungen gegen Störeinflüsse geschützt.
Anschlusskabel im IQ8TAL zum Schutz vor Feuchtigkeit mit
Abtropfschlaufe verlegen.
Vor Anschaltung von induktiven Lasten und Alarmgebern
prüfen, ob – je nach Komponente – der Einsatz der beiliegenden
Diode (Typ 1N4007) erforderlich ist!
Ergänzende und aktuelle Informationen
Die Produktangaben entsprechen dem Stand der Drucklegung und
können durch Produktänderungen, geänderte Normen / Richtlinien
ggf.
von
den
hier
genannten
Aktualisierte Informationen und Konformitätserklärungen siehe
www.esser-systems.com.
Dokumentation der Brandmelderzentrale bzgl. Normen, lokalen
Anforderungen und Systemvoraussetzungen beachten!
esserbus
und essernet
sind in Deutschland eingetragene
®
®
Warenzeichen.
GB
Observe the correct wiring sequence for the loop!
Terminals 1-4 IN (Input)  OUT (Output).
Use designated communication cable I-Y (St) Y n x 2 x 0.8 mm
or fire alarm cable!
Connection of the cable shield to the ground terminal protects
the signal cables against interference.
Install inlaying cable with a dripping bend to protect the device
from dampness.
Before connecting inductive loads and alarm devices ensure for
each connected device if the supplied diode (type 1N4007) is
required for a proper wiring!
Additional and updated Informations
The product specification relate to the date of issue and may
differ due to modifications and/or amended Standards and
Regulations from the given information. For updated information
and declaration of conformity refer to www.esser-systems.com.
Observe technical manuals of the FACP to ensure compliance
to standards and local requirements of Systems features!
esserbus
and essernet
are registered trademarks in Germany.
®
®
Achtung!
Diese Anleitung ist vor der Inbetriebnahme des Gerätes genau
durchzulesen.
Installationsanleitung verursacht werden, erlischt die Gewährleistung. Für
Folgeschäden, die daraus resultieren, wird keine Haftung übernommen.
Sicherheitshinweise
Den Melder NICHT an einer 230 V AC Nennspannung und nur im
vorgesehenen Temperaturbereich betreiben.
Die Wartung und Reparatur des Melders nur durch eine Fachkraft, die
mit den damit verbundenen Gefahren und Vorschriften vertraut ist.
Die Veränderung oder ein Umbau des IQ8TAL ist nicht zulässig.
Allgemein / Anwendung

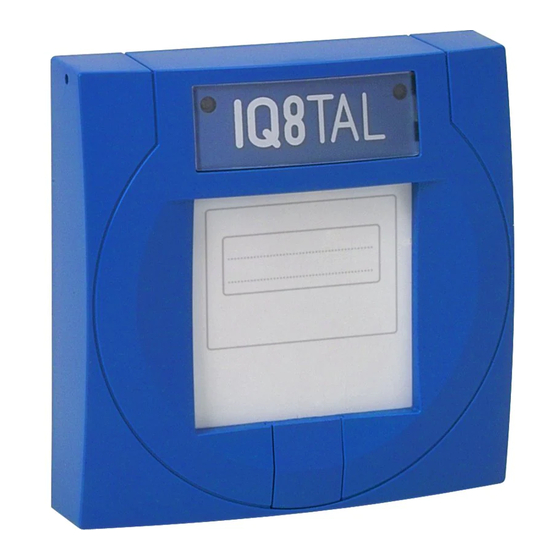

Der Technische Alarmbaustein IQ8TAL wird zur Auslösung einer
Gefahrenmeldung in trockenen, nicht explosionsgefährdeten Betriebsstätten
eingesetzt. Die Betriebsbereitschaft des IQ8TAL wird durch die blinkende
grüne LED (H) angezeigt (Abb. 4).
Systemvoraussetzungen
BMZ / Gerät
IQ8Control
FlexES Control
IQ8TAL
Bedienung
Rückstellen: Zum Einstecken des Schlüssels die Schlüssellochabdeckung
(A) hochschieben (Abb. 1).
Testbetrieb:
Öffnen:
Schließen:
Symbolik:
Kunststoff-
scheibe:
Abdeckung:
Art.-Nr. 704965
(Option)
Installation
unter Putz
auf Putz
Anschaltungen
Die Anschaltung der IQ8TAL erfolgt über die esserbus
Ringleitung der Brandmelderzentrale. IQ8TAL müssen auf der Ringleitung in
eigenen Meldergruppen zusammengefasst werden. Kabel nur innerhalb des
Gehäuses abisolieren. Die Anschaltung erfolgt über die Anschlussklemmen 1-4.
Diese können zur Vereinfachung der Installation abgezogen werden. Die
Abschirmungen der Anschlusskabel müssen mit einer Schraubklemme
untereinander verbunden werden. In dem Montagegehäuse steht dazu eine
integrierte Anschlussklemme zur Verfügung (Abb. 7).
Sondermelder
An den Anschlussklemmen 7 / 8 können Standard-Handmelder oder manuelle
Sondermelder wie z.B. Ex-Handfeuermelder (Art.-Nr. 761697) angeschaltet
werden. Den letzten Melder mit einem 10 KOhm (± 5 %) bzw. dem integrierten
Abschlusswiderstand beschalten.
Leitungstrenner
Die Leitungstrenner gewährleisten die Funktionstüchtigkeit der Anlage, falls
ein Segment der Ringleitung durch Kurzschluss ausfällt. Bei einem
Kurzschluss der Ringleitung öffnen die Leitungstrenner vor und hinter dem
Kurzschluss und schalten den Teil der Ringleitung zwischen den
Leitungstrennern ab. Ein einfacher Drahtbruch beeinträchtigt die Funktion
der Ringleitung nicht.
Kontakteingang
An diesen IQ8TAL kann ein ext. Schließer- bzw. Öffnerkontakt angeschaltet
werden. Bei einer Auslösung wird die Adresse und der programmierte
Zusatztext des IQ8TAL angezeigt. Leitungslänge max. 500 Meter!
Den letzten Kontakt mit einem 10 KOhm (± 5 %) Abschlusswiderstand
Informationen
abweichen.
beschalten (Abb. 11 / 12).
Wird kein Kontakt bzw. Melder angeschlossen, so muss der 10 KOhm (± 5 %)
Widerstand direkt an den Klemmen 7/8 angeschlossen werden (Abb. 10).
Kontaktverhalten / Betriebsart
An den Anschlussklemmen 5 / 6 stehen potentialfreie Kontakte eines Relais
zur Verfügung (Abb. 10). Der Relaisausgang wird mit dem Auslösen dieses
IQ8TAL aktiviert. Werkseitig ist das Relais als Schließer eingestellt. Der
Relaisausgang kann in den Kundendaten der Brandmelderzentrale als
Steuergruppe programmiert und mit der Programmiersoftware tools 8000
als Öffner konfiguriert werden.
Max. Kontaktbelastung : 30 V DC / 1 A oder 30 V AC / 1 A
Technische Daten
Betriebsspannung
Ruhestrom
Alarmstrom
Melderzahl
Alarmanzeige
Betriebsanzeige
Anschlussklemmen
Anwendungstemperatur
Lagertemperatur
Schutzart
Gehäuse
Farbe
Gewicht
Maße-Gehäuse (B x H x T)
Maße mit Montagegehäuse
Spezifikation
VdS-Anerkennung
Leistungserklärung
D
Bei
Schäden
die
durch
Nichtbeachtung
Programmiersoftware
Systemsoftware
tools 8000
ab Version V3.08
ab Version V4.01
ab Version V1.16
ab Version V6.07
Schlüssel (C) nach rechts (K) drehen bis sich die Scheibe
senkt und die Auslösung (F) angezeigt wird (Abb. 4). Zum
Rückstellen nach dem Test die Scheibe mit einer
Linksdrehung des Schlüssels bis zum Endanschlag (L)
wieder nach oben drücken.
Schlüssel mit den beiden Kunststoffzapfen in die
Öffnungen der Unterseite einstecken (Abb. 2) und
Verriegelung aufdrücken. Das Gehäuseoberteil leicht
nach oben ankippen und von dem Gehäuseunterteil
abnehmen.
Entriegelung
mit
dem
Schlüssel
bis
zum
Endanschlag drehen (Abb. 6). Gehäuseoberteil leicht
angekippt auf die oberen Vertiefungen des Unterteiles
aufsetzen und vorsichtig bis zum Einrasten zudrücken.
Bei offenem Gehäuse transparente Abdeckung (D/E)
lösen und entnehmen. Beschriftungsfeld von vorne
einlegen, ausrichten, lagerichtig Abdeckung einsetzen
und andrücken (Abb. 3).
Schlüssel bis zum rechten Endanschlag drehen (Abb. 5).
Scheibe lagerichtig (J) in die Gehäusevertiefung einlegen
und durch Linksdrehung des Schlüssels bis zum
Endanschlag nach oben drücken (Abb. 6).
Zur Erhöhung der Schutzart von IP 43 auf IP 55.
Die Abdeckung (M) wird in die seitlichen Vertiefungen (N)
des Gehäuseoberteils eingesetzt und kann zusätzlich
verplombt (B) werden (Abb. 2/9).
Der
IQ8TAL
wird
auf
einer
Standard-Schalterdose
(Ø 55 – 60 mm) montiert.
Der IQ8TAL inkl. Aufputzgehäuse (Option) oder mit
Montagerahmen zur universellen Wandbefestigung (Option)
wird auf einer glatten, geeigneten Wandfläche, z.B. mit
Dübeln (S6) und 2 Schrauben (Länge  40 mm) befestigt
(Abb. 7/8).
/ esserbus
®
:
8 V DC bis 42 V DC
:
ca. 45 µA @ 19 V DC
:
ca. 9 mA @ 19 V DC, gepulst
:
max. 127 TAL pro Ringleitung
:
rote LED
:
grüne LED
:
max. 1,5 mm² (AWG 30-14)
:
-20 °C bis +70 °C
:
-30 °C bis +75 °C
:
IP 43 (im Gehäuse)
:
IP 55 (mit Option 704965)
:
PC/ASA Kunststoff
:
blau (ähnlich RAL 5015)
:
ca. 110 g
:
88 x 88 x 27 (mm)
:
88 x 88 x 63 (mm)
:
EN 54-17 : 2005 / -18 : 2005
:
G 209138
:
DoP-20792130701
Important!
These instructions must be studied carefully before commissioning the
der
device. Any damage caused by failure to observe the installation
instructions voids the warranty. Furthermore, no liability can be accepted for
any consequential damage arising from such failure.
Safety information
NEVER connect the MCP directly to a 230 V AC rated voltage and only
operate in the specified ambient temperature range.
Only qualified technicians who are fully familiar with all the associated
hazards and the applicable legislation and regulations may perform
maintenance and repair work on the call point.
The IQ8TAL may not be changed or modified in any way.
General / Application
The Technical Alarm Module IQ8TAL is designated for hazard alarms in dry
workplaces not subject to explosion hazards. The operation mode is
displayed via the flashing green LED (H - Fig. 4).
System requirements
FACP / device
System software
IQ8Control
from Version V3.08
FlexES Control
from Version V4.01
IQ8TAL
from Version V6.07
Operation
Reset: Push up the keyhole cover (A) to insert the key (Fig. 1).
Test mode:
Turn key (C) clockwise (K) until the screen moves
downwards and the activation (F) is indicated (Fig. 4). To
reset the detector after a test simply turn key (L) to the left
stop position to lift screen upwards.
Opening:
Insert the key with the both tenons in the opening at the
bottom of the housing (Fig. 2) to release the cover lock.
Lift up the bottom edge of the cover a little to release it
and then remove it.
Closing:
Turn key lock anti-clockwise until the left stop position
linken
(Fig. 6). Position the upper edge of the cover in the
groove at the top of the base and then press the cover
down until it locks into position.
With the housing open, remove the transparent plastic
Symbolism:
cover (D/E) by prising it out. Insert the appropriate
identification label from the front. Align the cover and
snap it back into place (Fig. 3).
Plastic screen:
Turn key lock clockwise until the right stop position
(Fig. 5). Insert screen aligned (J) in the front recess und
move screen upwards by turning the key anti-clockwise
until the left stop position (Fig. 6).
Hinged cover:
To increase the protection rating from IP 43 up to IP 55.
Part No. 704965
The hinged cover (M) is fixed by the sideway dents (N) of
(Option)
the housing and may be sealed (B) if required (Fig. 2/9).
Installation
Flush mounting
The IQ8TAL is installed on a conventional standard
housing (Ø 55 – 60 mm).
Surface
The IQ8TAL is installed on a back box for surface
mounting
mounting (option) or with a universal installation frame for
wall mounting (option). The call point securely on a
suitable wall with a smooth surface, e.g. with 2 screws
(length  40 mm) and dowels (S6) (Fig. 7/8).
Wiring
The IQ8TAL can be connected to the esserbus
-Plus
®
fire alarm control panel. IQ8TAL must be configured together in their own
detector zones. Only remove insulation from cable sections inside the
housing. For wiring use terminals 1-4. These terminals can be removed to
simplify the installation. The cable shield of the connection cable must be
interconnected by using a single terminal block. The mounting box provides
an integrated terminal for the shield connection (Fig. 7).
Third-party detector
The terminals 7 / 8 are suitable to connect conventional manual call points or
manual Third-party detectors e.g. manual call points for Ex-areas
(Part No. 761697). The last detector must be terminated with a 10 KOhm (± 5 %)
or the integrated End-of-line resistor.
Zone isolator
The zone isolators ensure that the system continues to function even if a
segment of the loop circuit fails due to a short circuit. When a short circuit
occurs the zone isolators before and after the short circuit open,
disconnecting the section of the loop between the isolators. Simple wire
breaks do not affect the functionality of the loop circuit.
Contact
An external NO or NC contact may be connected to a single IQ8TAL. When
an alarm is triggered the address and the programmed additional text of the
IQ8TAL to which the contact is connected are displayed automatically.
Cable length max. 500 metres! Terminate the last contact with a 10 KOhm
(± 5 %) End-of-line resistor (Fig. 11 / 12).
If no external contact or detector is connected the 10 KOhm (± 5 %)
terminating resistor must be installed directly to terminals 7/8 (Fig. 10).
Contact response /Operating mode
The dry contacts of a relay are available on terminals 5 / 6 (Fig. 10). The
relay output is activated automatically when this IQ8TAL is triggered. The
relay is operated as NO contact by factory settings. The relay output can be
programmed as a control zone in the customer data of the fire alarm control
panel and the NC (normally closed) operating mode must be programmed
with the programming software tools 8000.
Maximum contact rating : 30 V DC / 1 A or 30 V AC / 1 A
Specifications
Power supply
Quiescent current
Alarm current
No. of call points
Alarm indicator
Operation indicator
Connection terminals
Application temperature
Storage temperature
Protection rating
Housing
Colour
Weight
Housing dimensions (w x h x d)
Dimensions with back box
Specification
VdS approval
Declaration of Performance
GB
Programming software
tools 8000
from Version V1.16
/ esserbus
-PLus loop of a
®
®
:
8 V DC to 42 V DC
:
approx. 45 µA @ 19 V DC
:
approx. 9 mA @ 19 V DC, pulsed
:
max. 127 TAL per loop
:
red LED
:
green LED
:
max. 1,5 mm² (AWG 30-14)
:
-20 °C to +70 °C
:
-30 °C to +75 °C
:
IP 43 (in housing)
:
IP 55 (with option 704965)
:
PC/ASA plastic
:
blue (similar RAL 5015)
:
approx. 110 g
:
88 x 88 x 27 (mm)
:
88 x 88 x 63 (mm)
:
EN 54-17 : 2005 / -18 : 2005
:
G 209138
:
DoP-20792130701

Werbung

loading

Inhaltszusammenfassung für Honeywell ESSER IQ8TAL

  • Seite 1 Reset: Push up the keyhole cover (A) to insert the key (Fig. 1). Rückstellen: Zum Einstecken des Schlüssels die Schlüssellochabdeckung 02.2014 / AA © 2014 Honeywell International Inc. (A) hochschieben (Abb. 1). Test mode: Turn key (C) clockwise (K) until the screen moves Testbetrieb: Schlüssel (C) nach rechts (K) drehen bis sich die Scheibe...
  • Seite 2 Optionen Art.-Nr. Options Part No. Beschriftungsfolie, transparent mit weißem Aufdruck, abweichend vom Standardpiktogramm (10 St.) 704961 Label, transparent with whit printing, differing from standard icons (10 pieces) 704961 Abdeckung (O) und Dichtungen zur Erhöhung der Schutzart von IP 43 auf IP 55 704965 Hinged cover (O) and washers to increase the protection rating from IP 43 up to IP 55 704965...
