3.2 UNFOLDED

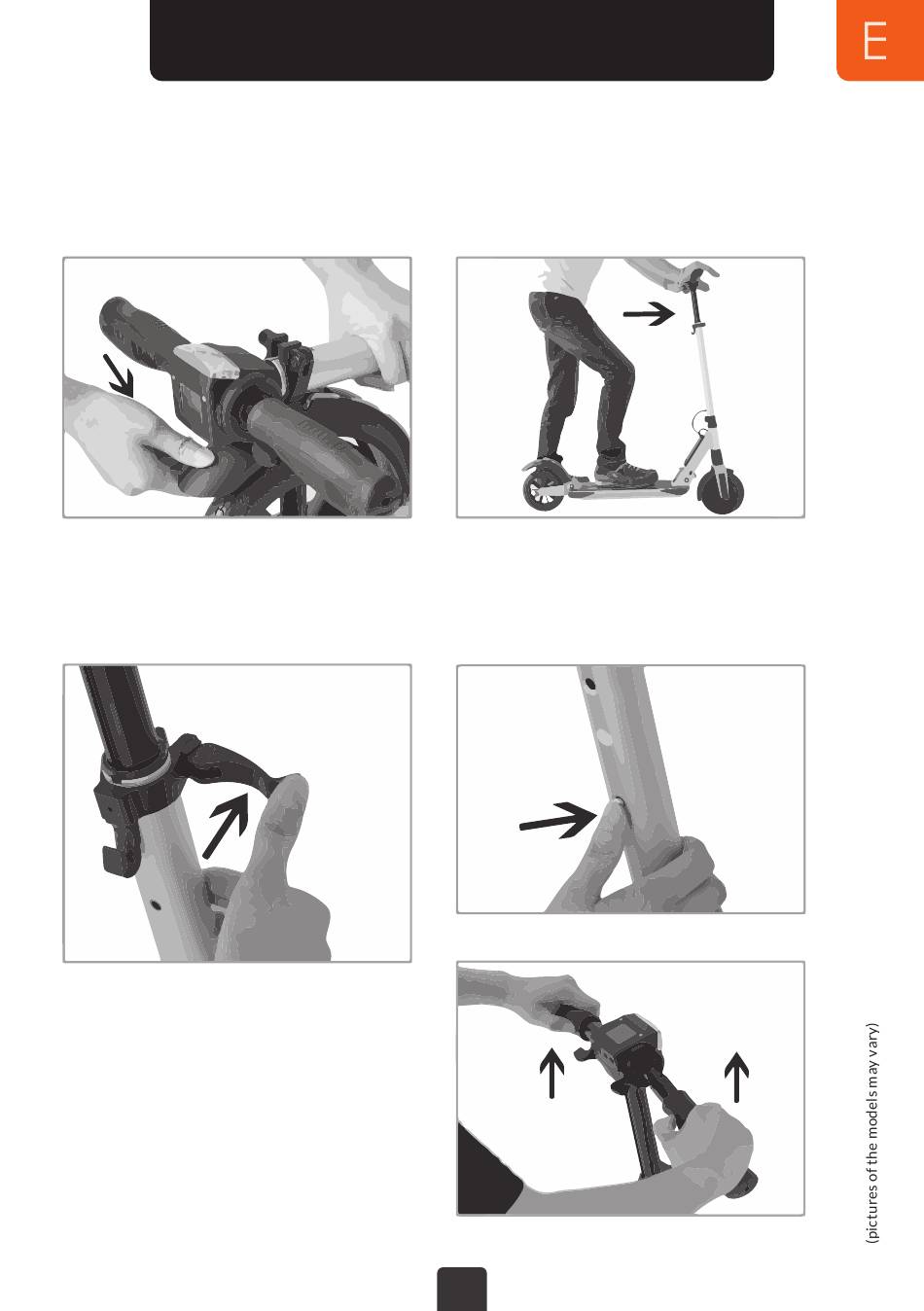

1. Press down the rear mudguard in the direction of the arrow, Figure A, until the safety hook
is released from the catch Then straighten the handlebar fully until it reaches the normal riding
position and the locking pin engages - Figure B.
- Fig. A -
Press the quick-release lever in the direction of the arrows, see Figure C, and pull the
handlebar until it locks into one of the two holes at the desired height.
Then lock the quick-release in place as shown in Figure C.
- Fig. C -
If the two handlebar grips are still
folded in, you can now fold them up,
Figure E.
Unfolded
33
- Fig. B -
- Fig. D -
- Fig. E -
