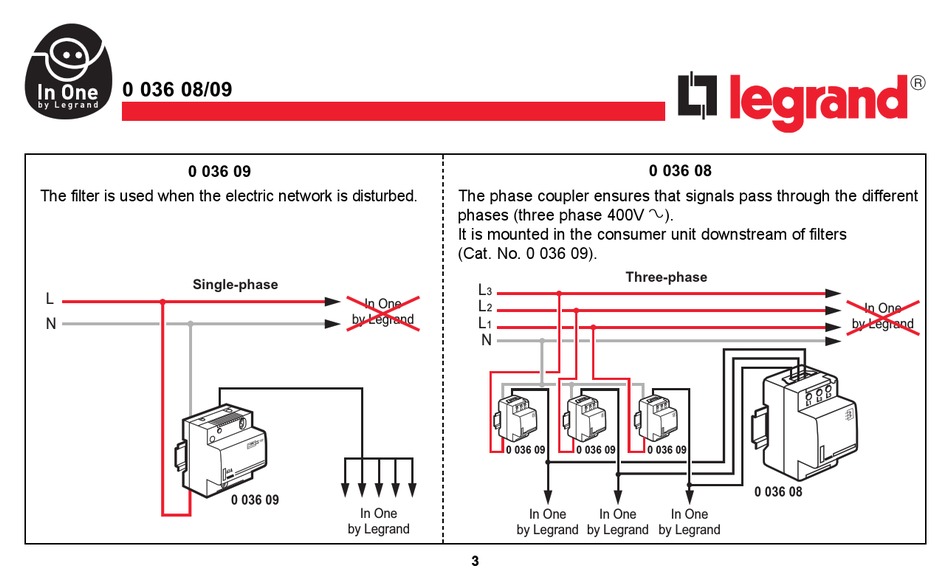

0 036 08/09
0 036 09
The filter is used when the electric network is disturbed.
Single-phase
L
N
In One
by Legrand
0 036 09
In One
by Legrand
The phase coupler ensures that signals pass through the different
phases (three phase 400V A ).
It is mounted in the consumer unit downstream of filters
(Cat. No. 0 036 09).
Three-phase
L
3
L
2
L
1
N
0 036 09
0 036 09
In One
In One
by Legrand
by Legrand
3 3
0 036 08
0 036 09
0 036 08
In One
by Legrand
In One
by Legrand
