CONTROLLER
Impedenza / Impedance / Impédance
Impedanz / Impedancia / Impedantie
Segnale / Signal / Signal
Signal / Señal / Signaal
Fan OFF con / Fan OFF with / Ventilateur OFF avec
Ventilator OFF mit / Ventilador OFF con / Fan OFF met
Velocità massima / Maximum speed / Vitesse maximale
Höchstgeschwindigkeit / Máxima velocidad / Maximale snelheid
PE
L
N
26
Downloaded from www.Manualslib.com
Accessorio non incluso
Not included accessories
Accessoires non inclus
Zubehör nicht im Preis enthalten
Accessorios no incluidos
Accessoires niet inbegrepen
0,3/13V
PE L N
4 5 6 7 8 9
PE
manuals search engine
SCHEDA ECM
< 100 Ω
V < 0,9 Volt
10 11 12
13 14 15
MFC

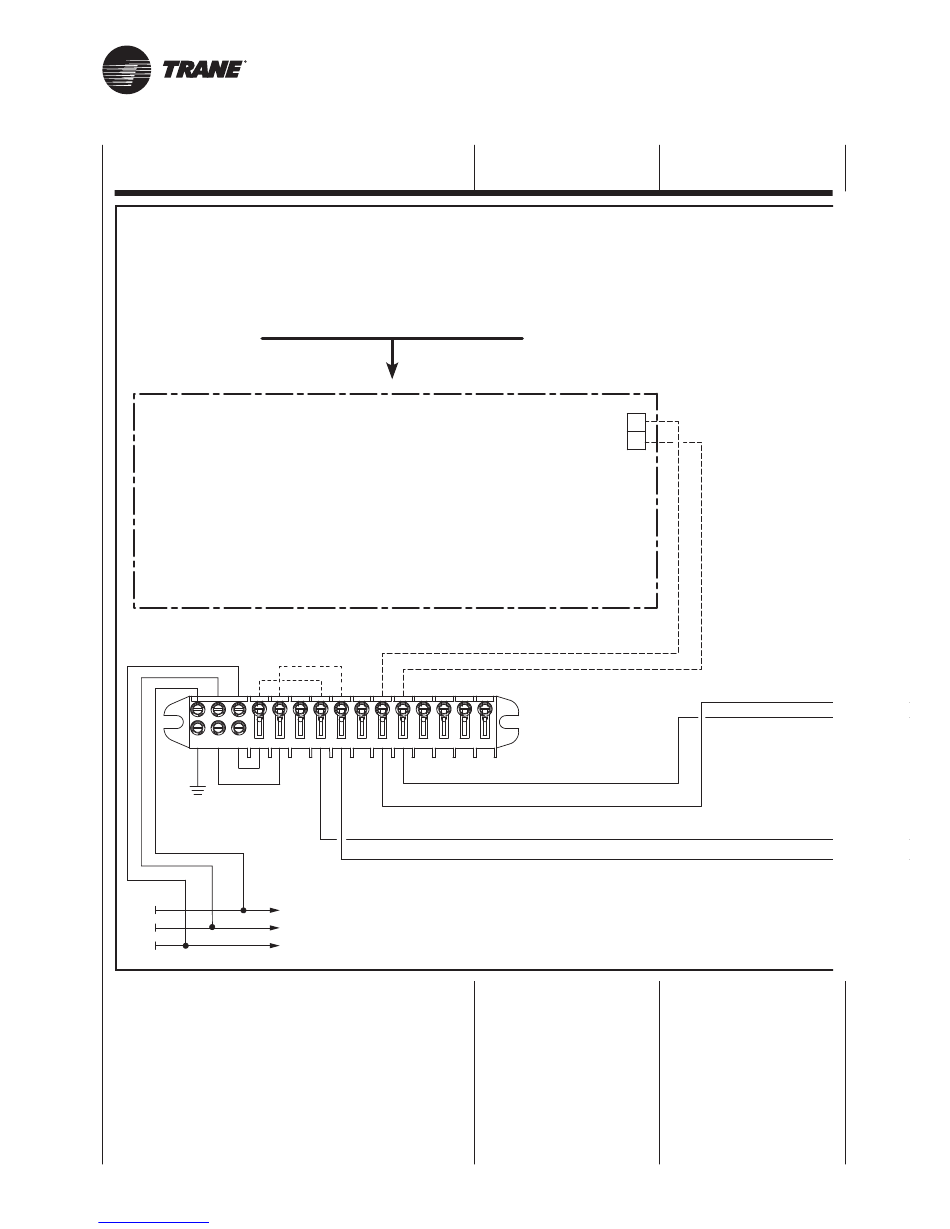

LEGENDA Scheda BLAC:
BLAC = Scheda
elettronica Inverter
T1 = Collegamento
protezione termica motore
0-10Vdc = Segnale ingresso
U/V/W = Collegamento motore
DFS-/DFS+ = Segnal digitali
CONTROLLER = Regolatore
WH = Bianco
RD = Rosso
BK = Nero
BU = Blu
ECM
ELECTRONIC BOARD
0Vdc
10Vdc
10 Volt
BLAC Board LEGEND:
BLAC = Inverter circuit board
T1 = Motor fan
thermal protector connection
0-10Vdc = Input signal
U/V/W = Motor fan connection
DFS-/DFS+ = Digital fault signals
CONTROLLER = Controller
WH = White
RD = Red
BK = Black
BU = Dark Blue
WH
RD
BU
BK
UNT-SVX26E-XX
