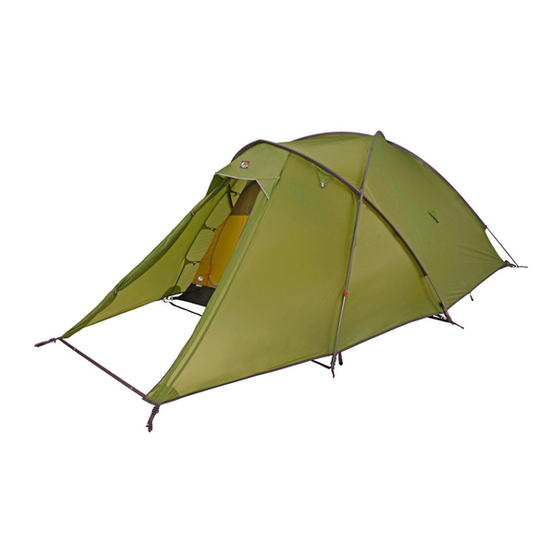

Vango F10 ION 2 Aufbauanleitung

TENT PITCHING INSTRUCTIONS – ION 2 (UK)
Flysheet First Pitching
1. Assemble the three poles and lay them parallel on the ground.
2. Open flysheet on ground and position tent in desired direction. Make sure the doors are completely closed.
3. Locate pole sleeves on the flysheet and insert poles. The poles are colour coded to the pole sleeves.
4. On one side, locate the end of each pole into the corresponding eyelets on pole anchor straps.
5. On opposite side, push poles into an arch and locate pole ends into the corresponding eyelets on pole anchor
straps.
6. Tighten the flysheet by adjusting the tension straps at the base of the poles.
7. Peg out adjustable anchor straps at both corners of the rear of the tent, using alloy pin pegs.
8. Pull the tent forwards, away from pegging points, until tent takes shape,. Peg the two anchor straps at the front
of the tent.
9. Peg out the remaining poles and pegging points using pin pegs at the base of poles
10. Peg out ALL guy lines.
Inner Attachment
1. Open out inner tent inside flysheet and position doorway to correspond with the porch entrance of the flysheet.
2. Starting from the rear corners of the tent, attach the elasticated hooks on the groundsheet to corresponding rings
on the flysheet
3. Suspend the inner by attaching elastic of inner tent to the clips on the inside of the flysheet
..................................................................................................................................................................................
