Installation
Hang Display onto the Wall Plate
4
Wall
M6 x 30
M8 x 30
Washer
Small
Spacer
M8 x 50
Washer
Big
Spacer
M6 x 30
M8 x 30
Washer
Big
Spacer
M8 x 50
Washer
Small
Spacer
Big
Spacer
Wall
7
M6 x 30
M8 x 30
Washer
Small
Spacer
Big
Spacer
M8 x 50
Washer
Small
Spacer
Big
Spacer

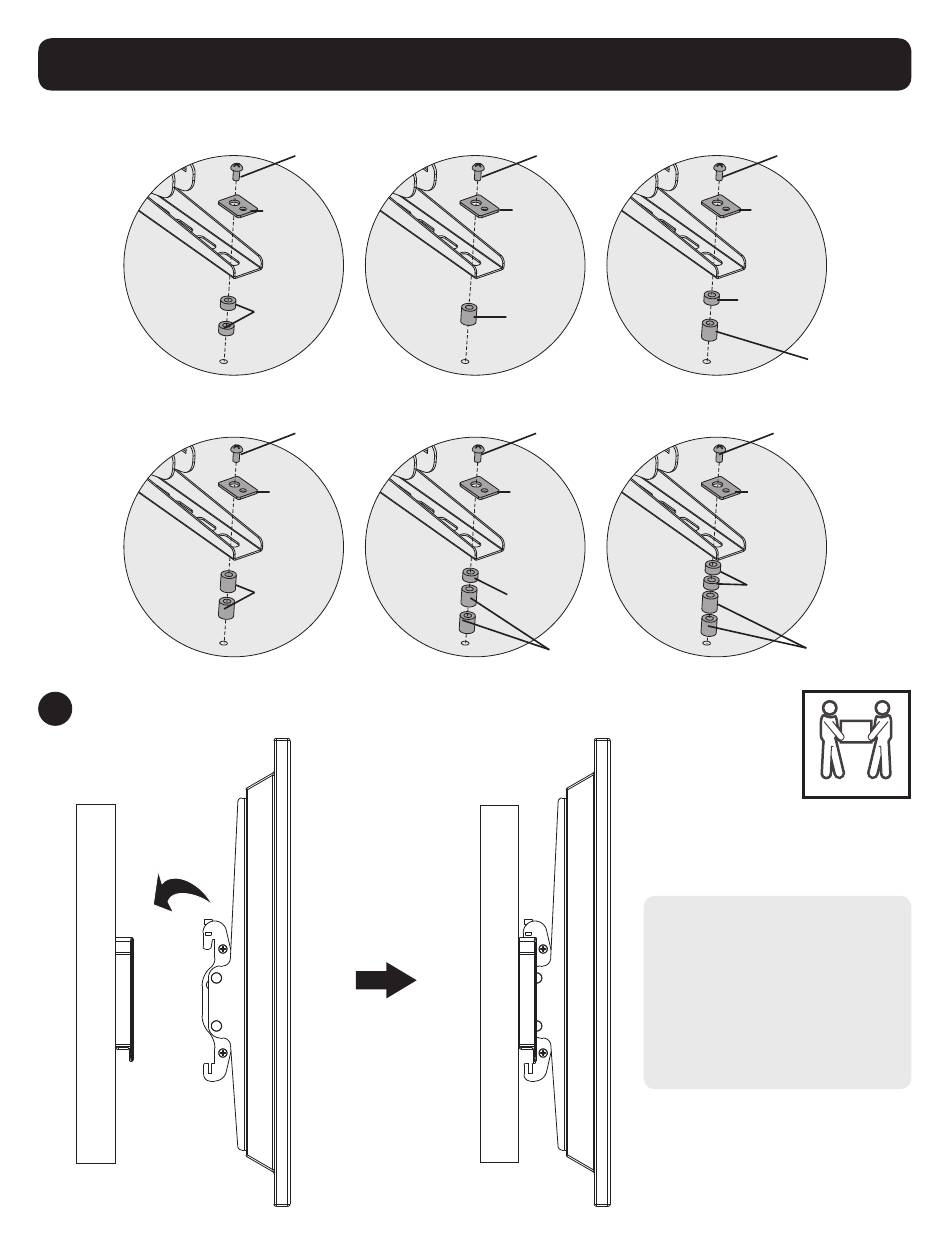

• Using an assistant or mechanical
lifting equipment, hook the display
with attached adapter brackets over
the top of the mounted wall plate.
• Push the safety clamps on the
bottom of the adapter brackets
upward and tighten the two screws
to lock each bracket to the wall
plate.
