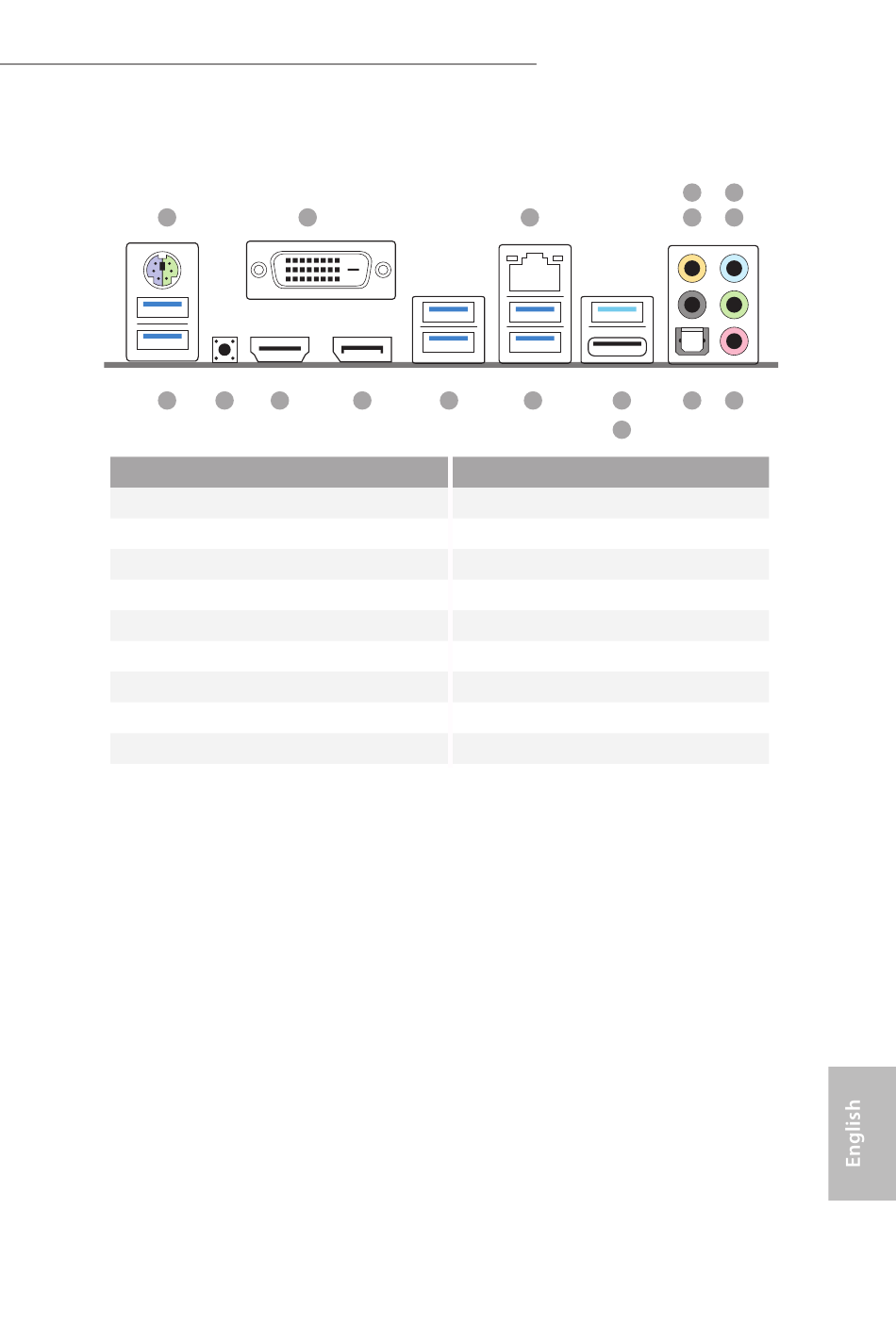

I/O Panel
1
17 16 15
No. Description
1 PS/2 Mouse/Keyboard Port
2 DVI-D Port
3 LAN RJ-45 Port*
4 Central / Bass (Orange)
5 Rear Speaker (Black)
6 Line In (Light Blue)
7 Front Speaker (Lime)**
8 Microphone (Pink)
9 Optical SPDIF Out Port
2
14 13
No. Description
10
11
12
13
14
15
16
17
Z170 Extreme4+ / Z170 Extreme4
3
12 10
11
USB 3.1 Type-A Port (USB31_TA_1)
USB 3.1 Type-C Port (USB31_TC_1)
USB 3.0 Ports (USB3_56)
USB 3.0 Ports (USB3_34)
DisplayPort 1.2
HDMI Port
Clear CMOS Switch
USB 3.0 Ports (USB3_12)
4 6
5 7
9 8
