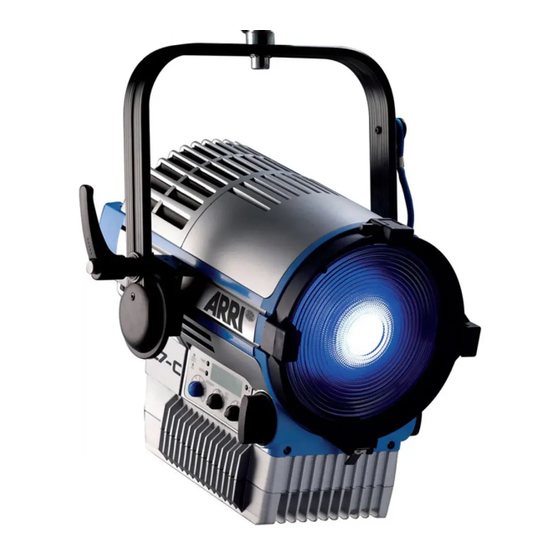

ARRI L7 Servicehandbuch
Vorschau ausblenden Andere Handbücher für L7:

Werbung

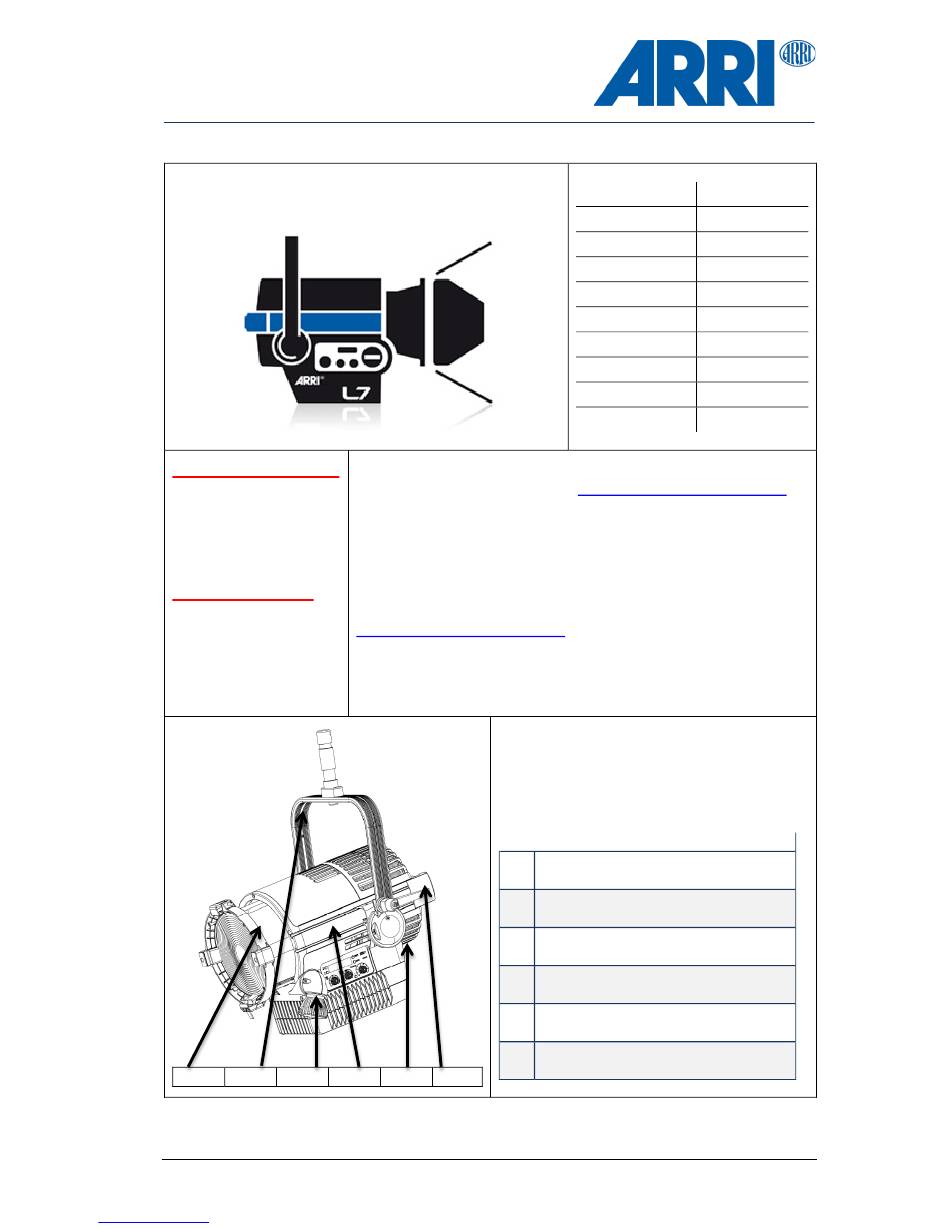

L7 Service Manual
Important Information This instruction applies only for the models listed above. If your
Wichtige Hinweise
Website: www.arri.com/service-lighting
Downloaded from
www.Manualslib.com
Supported Models
Unterstützte Modelle
model is not listed, please visit
for more information. You are not authorized to make any
changes on the controller, the power supply unit, the light
engine and on all parts where electrostatic discharge may harm
any important components.
Diese Anleitung gilt nur für die oben aufgeführten Modelle.
Falls Ihr Modell nicht aufgelistet ist, besuchen Sie bitte
www.arri.com/service-lighting
Beachten Sie auch, dass Sie keine Änderungen an Kontroller,
Netzteil, Light-Engine und allen Teilen durchführen dürfen bei
denen eine elektrostatische Entladung wichtige Bestandteile
zerstören kann.
1
2
5
4
Arnold & Richter Cine Technik GmbH & Co. Betriebs KG, Pulvermühle, 83071 Stephanskirchen
manuals search engine
www.arri.com/service-lighting
für weitere Informationen.
Lens-Tube
1
Linsengehäuse
Stirrup
2
Bügel
Handle
3
Griff
Guide Rail
4
Führungsschiene
Focus Drive
5
Fokusantrieb
DMX Splitter
6
DMX Splitter
6
3
February 1, 2016
L1.31230TA
L1.31330CA
L1.31230TB
L1.31330CB
L1.31230TC
L1.31330CC
L1.31230TD
L1.31330CD
L1.31230TI
L1.31330CI
L1.31230TR
L1.31330CR
L1.31235TB
L1.31335CB
L1.31235TC
L1.31335CC
L1.31235TI
L1.31335CI
L1.31235TR
L1.31335CR
Overview
Übersicht
Seite 1 von 25 | Page 1 of 25

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für ARRI L7

  • Seite 1: Supported Models / Overview

    L7 Service Manual February 1, 2016 Supported Models L1.31230TA L1.31330CA Unterstützte Modelle L1.31230TB L1.31330CB L1.31230TC L1.31330CC L1.31230TD L1.31330CD L1.31230TI L1.31330CI L1.31230TR L1.31330CR L1.31235TB L1.31335CB L1.31235TC L1.31335CC L1.31235TI L1.31335CI L1.31235TR L1.31335CR Important Information This instruction applies only for the models listed above. If your model is not listed, please visit www.arri.com/service-lighting...
  • Seite 2: Main Components

    L7 Service Manual February 1, 2016 Main Components / Hauptkomponenten 1. Lens-Tube 2. P.O. & Man. Stirrup 3. Handle 1. Linsengehäuse 2. P.O. & Man. Stirrup 3. Griff 4. Guide Rail 5. P.O. & Man. Focus Drive 6. DMX Splitter 4.
  • Seite 3: Inhaltsverzeichnis

    L7 Service Manual February 1, 2016 Table of contents / Inhaltsverzeichnis Supported Models / Overview Unterstützte Modelle / Übersicht Main Components Hauptkomponenten Important Information Wichtige Informationen Safety Instructions Sicherheitshinweise ESD Safety Instructions ESD Sicherheitshinweise ESD Important Preparations ESD Wichtige Vorbereitungen Required Tools Benötigtes Werkzeug...
  • Seite 4: Important Information

    This instruction supports only the models listed on page 1. If your model is not listed, please visit www.arri.com/service-lighting for more information. Also, these instructions are for qualified ARRI service personnel only. If you are not familiar with the handling of components that can be destroyed by electrostatic discharge, please do not use these instructions and contact the ARRI Lighting Service Team.
  • Seite 5: Wichtige Informationen

    Diese Anleitung gilt nur für die auf Seite 1 aufgeführten Modelle. Falls Ihr Modell nicht aufgelistet ist besuchen Sie bitte www.arri.com/service-lighting für weitere Informationen. Die Reparaturen sollten nur von qualifizierten ARRI Service Mitarbeitern durchgeführt werden. Benutzen Sie diese Anleitung bitte nicht, wenn Sie mit dem Umgang von Komponenten die durch elektrostatische Entladung zerstört werden können nicht vertraut...
  • Seite 6 L7 Service Manual February 1, 2016 » Vermeiden Sie beim Verlegen der Anschlusskabel mögliche Stolpergefahren für Personen oder Beschädigungen durch Fahrzeuge mittels geeigneter Kennzeichnung oder Abdeckung. b) Sicherheitsanforderungen bezüglich elektrischer Gefährdung » Das Scheinwerfersystem und dessen elektrische Schutzeinrichtung ist vor jedem Einsatz zu prüfen.
  • Seite 7: Esd Safety Instructions

    L7 Service Manual February 1, 2016 ESD Safety Instructions ESD Sicherheitshinweise ESD SENSITIVE COMPONENTS This symbol indicates the susceptibility to ESD sensitive components. If a repair instruction contains this symbol, you must take care of the mentioned below ESD safety preparations.
  • Seite 8: Esd Important Preparations Esd Wichtige Vorbereitungen

    L7 Service Manual February 1, 2016 ESD important preparations ESD Wichtige Vorbereitungen STEP 1 Plug the adapter into a standard power socket. SCHRITT 1 Stecken Sie den Adapter an einer genormten Steckdose ein. STEP 2 Connect the ground wire to the ESD table- mat.
  • Seite 9: Required Tools

    L7 Service Manual February 1, 2016 Required Tools/ Benötigtes Werkzeug WARNING: Before starting the repair please take note of the safety instructions on pages 4-8! Make sure that the lamp head is fully disconnected from the mains and cooled down before opening the cover or beginning the repair.
  • Seite 10: Lens-Tube

    L7 Service Manual February 1, 2016 Lens-Tube / Linsengehäuse Step 1: Extend the lens-tube from the chassis at least 5cm to expose hidden screws. Schritt 1: Drehen Sie das Linsengehäuse mindestens 5 cm heraus um an die verdeckten Schrauben zu gelangen.
  • Seite 11: Linse

    L7 Service Manual February 1, 2016 Step 4: Please make sure that you pull the lens- tube out of the chassis completely by using the focus drive before removing it. Schritt 4: Bitte fahren Sie das Linsengehäuse erst mit dem Fokusantrieb komplett heraus bevor Sie es abnehmen.
  • Seite 12: Mounting The Lens-Tube

    L7 Service Manual February 1, 2016 Step 3: Now you can remove the lens easily and mount a new one. Please make sure, that you apply the new lens with the smooth side inwards. Schritt 3: Nun können Sie die Linse herausnehmen und durch eine neue ersetzen.
  • Seite 13: Stirrup / Bügel

    L7 Service Manual February 1, 2016 Step 3: Please take care that the lens-tube is exactly fitted to the gear wheels. Schritt 3: Achten Sie darauf das Linsengehäuse passend zu den Zahnrädern einzusetzen. Step 4: Now you just have to spin the focus knob and it will be automatically engaged.
  • Seite 14: Mounting The Stirrup

    L7 Service Manual February 1, 2016 Step 2: Loosen the screws to allow the stirrup bracket to slide in the guide rail. Schritt 2: Schrauben Sie das Bügellager auf um das Bewegen in der Führungsschiene zu ermöglichen. Step 3: Move the stirrup along the line (see the red arrows).
  • Seite 15: Handle / Griff

    L7 Service Manual February 1, 2016 Step 2: Tighten the screws on the stirrup on both sides with a TX 20 screw driver. Schritt 2: Drehen Sie die Schrauben mit einem TX 20 Schraubendreher auf beiden Seiten des Gehäuses fest.
  • Seite 16: Guide Rail

    L7 Service Manual February 1, 2016 Guide Rail / Führungsschiene Information: Before you can remove the guide rail you have to follow these steps: Removing the Lens-Tube Removing the Stirrup Removing the Handle Information: Bitte beachten Sie, dass Sie erst die Schritte „Linsengehäuse entfernen (1.1)“,...
  • Seite 17: Focus Drive/ Fokusantrieb

    L7 Service Manual February 1, 2016 Focus Drive/ Fokusantrieb Information: Before you can remove the Focus drive you have to follow the step “Removing the lens- tube (1.1). Step 1: Loosen the tapped screw on the focus knob and remove it with a TX20 screwdriver.
  • Seite 18: Reassemble The Focus Drive Den Fokusantrieb Zusammensetzen

    L7 Service Manual February 1, 2016 Reassemble the Focus Drive Den Fokusantrieb zusammensetzen Important: Before getting started please check if you have all the important components listed below. Wichtig: Bevor Sie mit dem Zusammenbau beginnen, überprüfen Sie bitte ob alle notwendigen Bestandteile vorhanden sind.
  • Seite 19 L7 Service Manual February 1, 2016 Reassemble the Focus Drive Den Fokusantrieb zusammensetzen Step 1: Fix the focus knob (1) to the focus spindle (2) and place the brake-ring (3) around it. Schritt 1: Befestigen Sie den Fokusknopf (1) an der Fokusachse (2) und legen Sie den Bremsring (3) darüber.
  • Seite 20 L7 Service Manual February 1, 2016 Step 4: Take the cylindrical rollers (1) and insert them as shown on the left. Schritt 4: Nehmen Sie die Zylinderrollen (1) und setzen Sie diese wie links abgebildet ein. Step 5: Place the compression spring (1) between the two cylindrical rollers.
  • Seite 21: Mounting The Focus Drive

    L7 Service Manual February 1, 2016 Mounting the Focus Drive Einbauen des Fokusantriebs Step 1: Insert the focus spindle into the hole and mount the gear wheels. Schritt 1: Schieben Sie die Fokus Spindel in die dafür vorgesehene Öffnung und setzen Sie die Zahnräder auf.
  • Seite 22 L7 Service Manual February 1, 2016 Step 4: Mount the focus knob and make sure you insert it to the correct position of the notches. Schritt 4: Setzen Sie den Fokusknopf auf und achten Sie dabei auf die richtige Positionierung der Einkerbungen.
  • Seite 23: Changing The Dmx-Splitter Austauschen Des Dmx Splitters

    L7 Service Manual February 1, 2016 Changing the DMX-Splitter Austauschen des DMX Splitters Step 1: Loosen the screw with a TX20 screwdriver. Schritt 1: Lösen Sie die Schraube mit einem TX20 Schraubendreher. Step 2: Remove the DMX-Splitter. Schritt 2: Nehmen Sie den DMX Splitter ab.
  • Seite 24: Notes / Notizen

    L7 Service Manual February 1, 2016 Notes / Notizen Arnold & Richter Cine Technik GmbH & Co. Betriebs KG, Pulvermühle, 83071 Stephanskirchen Website: www.arri.com/service-lighting Seite 24 von 25 | Page 24 of 25 Downloaded from www.Manualslib.com manuals search engine...
  • Seite 25: Arri Subsidiaries

    The manufacturer disclaims liability for any damage to persons or properties which are caused by an inappropriate operation of the fixture. Those lie in the responsibility of the operator. Visit our homepage www.arri.com/service-lighting for downloads and software tools. Weitere Informationen Für alle Personen- oder Sachschäden, die aus nicht bestimmungsgemäßer Verwendung...
