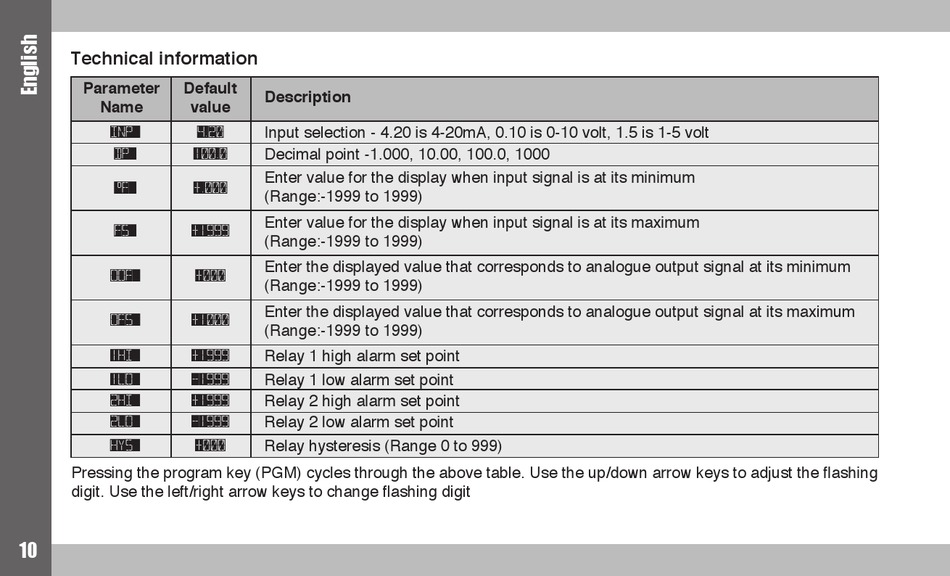

Technical information

Parameter Default
Name value
INP 4.20
DP 100.0
°F +.000
FS +1999
OOF +000
OFS +1000
1HI +1999
1LO -1999
2HI +1999
2LO -1999
HYS +000
Pressing the program key (PGM) cycles through the above table. Use the up/down arrow keys to adjust the flashing
digit. Use the left/right arrow keys to change flashing digit
10
Description
Input selection - 4.20 is 4-20mA, 0.10 is 0-10 volt, 1.5 is 1-5 volt
Decimal point -1.000, 10.00, 100.0, 1000
Enter value for the display when input signal is at its minimum
(Range:-1999 to 1999)
Enter value for the display when input signal is at its maximum
(Range:-1999 to 1999)
Enter the displayed value that corresponds to analogue output signal at its minimum
(Range:-1999 to 1999)
Enter the displayed value that corresponds to analogue output signal at its maximum
(Range:-1999 to 1999)
Relay 1 high alarm set point
Relay 1 low alarm set point
Relay 2 high alarm set point
Relay 2 low alarm set point
Relay hysteresis (Range 0 to 999)
