TO START:
1. Press POWER button to turn on.
2. Confirm your mode with the internal display (default is "last used" setting).
3. Set your desired mode and start measuring.
MODE setting:
One-point (Act/Hor/Hgt/Ang) measurement
(Measurement order: Ⅰ ⇒Ⅱ⇒Ⅲ⇒Ⅳ⇒Ⅱ , then repeat)
Internal display ("Linear distance mode")
(Display will be different depending on the setting mode.)
Ⅰ
Set your desired
mode.
・ Power turns off 30 seconds after the last operation.
External display reading instructions
2
Downloaded from www.Manualslib.com

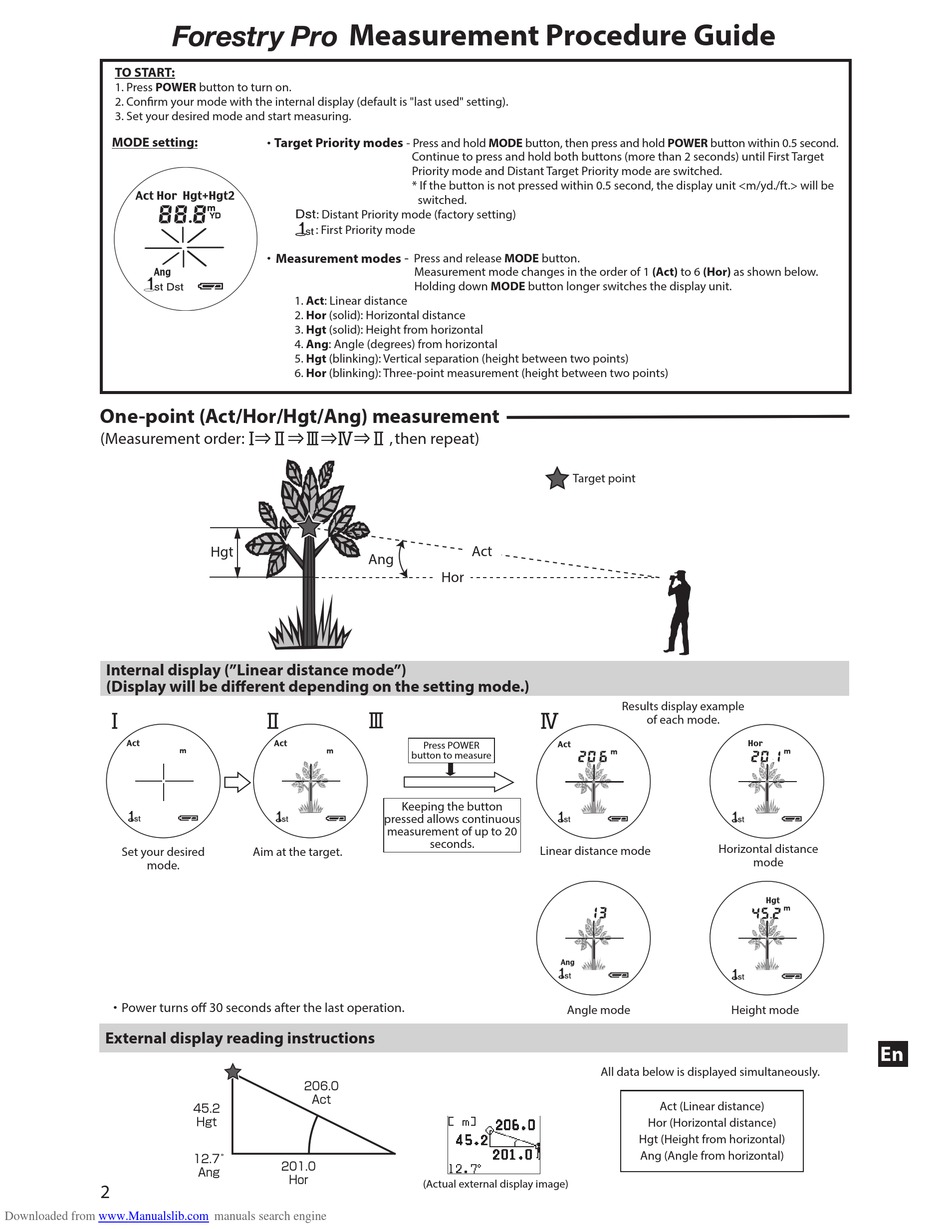

Measurement Procedure Guide
・ Target Priority modes
: Distant Priority mode (factory setting)
: First Priority mode
・ Measurement modes
1. Act: Linear distance
2. Hor (solid): Horizontal distance
3. Hgt (solid): Height from horizontal
4. Ang: Angle (degrees) from horizontal
5. Hgt (blinking): Vertical separation (height between two points)
6. Hor (blinking): Three-point measurement (height between two points)
Hgt
Ang
Ⅲ
Ⅱ
Aim at the target.
206.0
Act
45.2
Hgt
12.7̊
201.0
Ang
Hor
manuals search engine
- Press and hold MODE button, then press and hold POWER button within 0.5 second.
Continue to press and hold both buttons (more than 2 seconds) until First Target
Priority mode and Distant Target Priority mode are switched.
* If the button is not pressed within 0.5 second, the display unit <m/yd./ft.> will be
switched.
-
Press and release MODE button.
Measurement mode changes in the order of 1 (Act) to 6 (Hor) as shown below.
Holding down MODE button longer switches the display unit.
Act
Hor
Ⅳ
Press POWER
button to measure
Keeping the button
pressed allows continuous
measurement of up to 20
seconds.
Linear distance mode
(Actual external display image)
Target point
Results display example
of each mode.
Horizontal distance
Angle mode Height mode
All data below is displayed simultaneously.
Act (Linear distance)
Hor (Horizontal distance)
Hgt (Height from horizontal)
Ang (Angle from horizontal)
mode
En En
