HARTING
Electronics GmbH
D-32339 Espelkamp
HARTING
HARTING Crimp Tool D-Sub
for bandoliered contacts (500 contacts)
Part-No.: 09 99 000 0169
Operation Manual
Crimp-Tool:
09 99 000 0169
Crimpwerkzeug D-Sub für Rolle
For Crimp contacts:
09 67 000 7167
09 67 000 7267
09 67 000 8167
09 67 000 8267
Scope of application.
The crimping tool was developed for processing D-Sub crimp con-
tacts 09 67 000 7167, -7267, -8167 and -8267, which are supplied
on carrier strips with approx. 500 contacts per roll (2). Roll holder
(1), feed unit and two crimp profiles ensure good handling with
the best crimp result.
a) Crimp profile 0,09 – 0,25 mm²
b) Crimp profile 0,25 – 0,56 mm²
HARTING Electronics GmbH - V1.2 – 20-05 - Irrtum und Änderungen vorbehalten
Each crimp profile crimps the conductor and insulation crimp area
of the contact in one operation. During the crimping process, the c
ENGLISH
separated from the strip so that it can be removed with the con-
ductor.

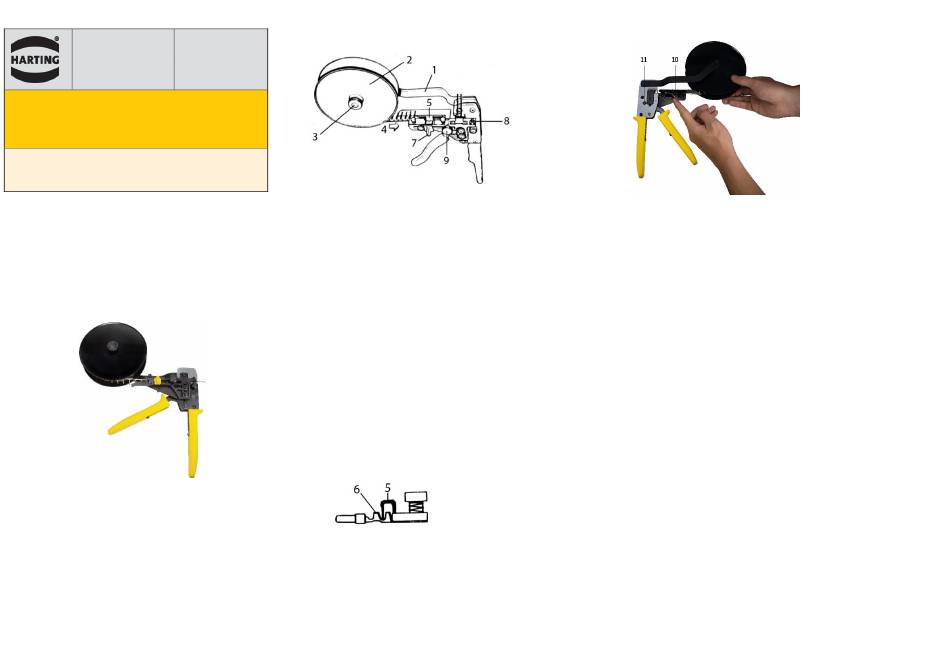

1 = Real seat
3 = Knurled nut
5 = Bracket
7 = Contact transport
9 = Knurled nut
11 = Forced lock
Feed unit
With the help of the feed unit, the contact strip is positioned in
the tool and processed as follows:
1. Mount the contact roller (2) on the roller holder (1) with the
knurled nut (3). Contact tips point towards the reel seat!
2. Close the tool until the positive lock permits opening
3. Push the contact strip (6) in the direction of the arrow (4) be-
tween the feed unit and the holding plate so that it is com-
pletely guided between the conductor and insulation crimp
up to the end of the holding plate (5).
4. Feed with contact transport (7).
Replace the contact strip
• Unlock and hold the feed unit with the red release lever (10)
in the "release" direction
• Pull out the contact strip against the feed to the roller (2)
ontact is also
2 = Contact role
4 = Arrow direction
6 = Contact strips
8 = Bend plate
10 = Release lever
• Remove the contact roller
Unlock prematurely
The hand tool can only be operated after it has been com-
pletely closed.
Every crimping process must be completed before the tool
opens again. This ensures a consistently good crimp quality.
However,
early
unlocking
of
the
tool
• Lightly press the handles of the tool together
• Release the forced lock (11) on the back of the tool by
turning to the left
• Tool handles can be opened.
Quality features
Crimp-Height*
Pullout force
AWG 24
0,75 mm
±0,05mm
>20 N
AWG 20
0,85 mm
±0,05mm
>32 N
+0,5 mm
Stripping length of the wire: 3,5 mm
is
possible:
