Only one interface, installed inside the shower is required. An additional interface can be
installed outside the shower.
•
Determine all required components along with their installation locations before beginning
this installation.
•
When routing the piping, remember the numbers marked at each valve outlet must correspond
to the appropriate showering component, for the preprogrammed or custom showering
experiences to function correctly.
3

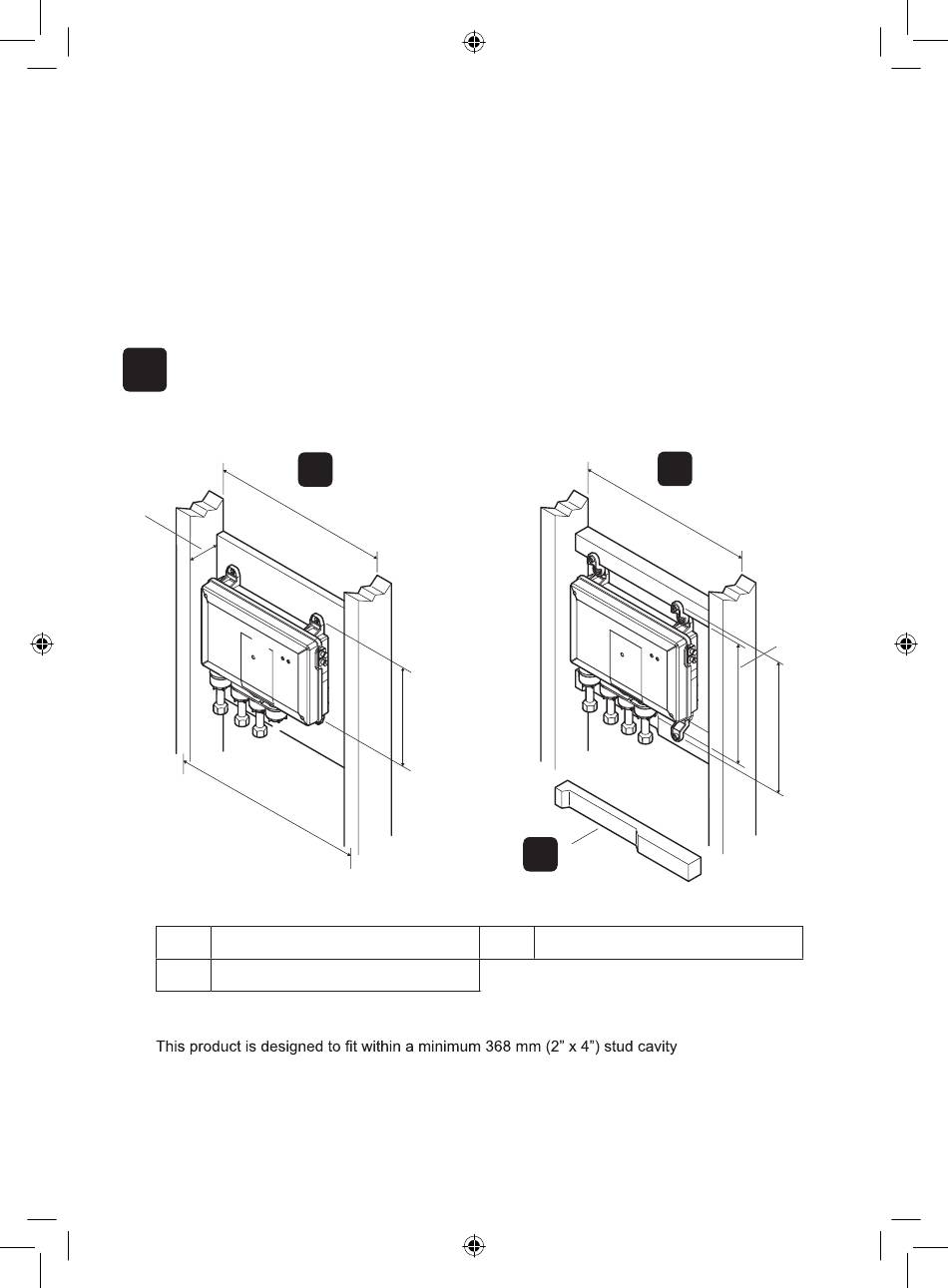

Prepare the Site
70 mm
368 mm Min
Min
406 mm
a
Board Mount
b
Cross Brace Mount
modify the stud cavity and apply adequate bracing for mounting the valve.
a
241 mm
6
b
368 mm Min
c
c
Notch Bottom Brace
. If necessary
295 mm
318 mm
