connection to triphone bAsic electronics

5.
5.1. (40-0006 (Basic electronics triphone) in conjunction with electronics add-on
20-0061, 40-0007, 40-0008, 40-0013)
www.behnke-online.com
Connection to triphone basic electronics

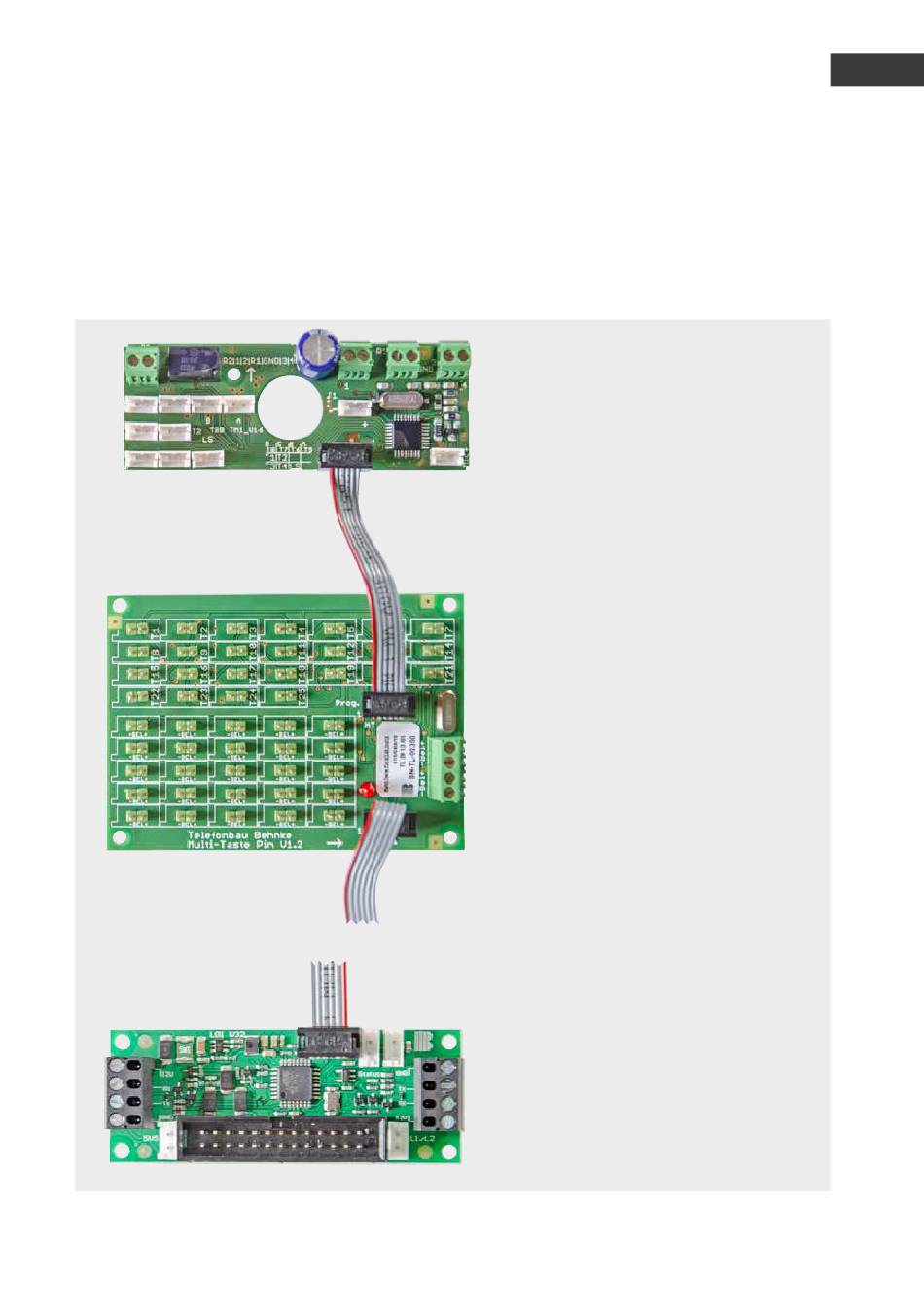

Connection circuit shows 40-0007
for 40-0008, you will fin pin headers
instead of screw terminals.
In case of more than 25/50/75 call
buttons, you can connect more circuits
to the bus line. Important! Always pay
attention to the individual set-up.
Circuit on module 20-3117/21-3117,
20-3118/21-3118. The circuit is always
connected to the last multi-key
connection circuit (if you need to
connect more than 25/50/75 keys)
