Connections; What's In The Box - Telecom Behnke Handicap 20-3117 Anleitung

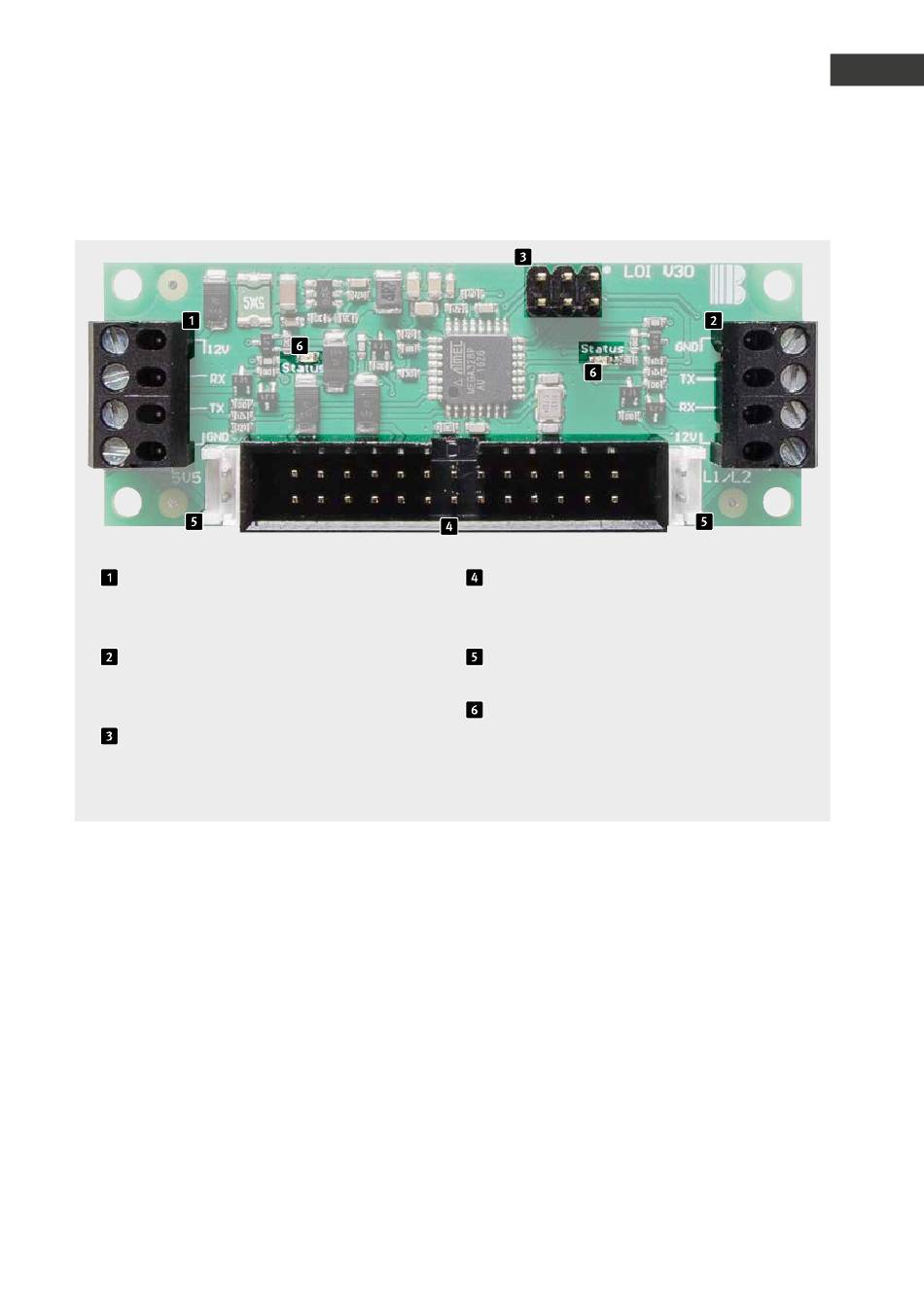

connections

2.
Bus clamp 1 (via connection of the
provided connection line with the IP basic
electronics)
Bus clamp 2 (connection with other bus
modules. The line must be provided on
site)
Connection for triphone devices (use
flat ribbon line provided for connection
with the door module triphone)

2.1. What's in the box

▸
Module 20-3117/21-3117/ 20-3118/21-3118
▸ Connection line IP basic electronics
(40 cm, 4-pole)
▸
Flat ribbon cable, 6-pole ( 50 cm when using
triphone basic electronics 40-0006)
▸
Flat ribbon cable, 26-pole (50 cm when using
analogue basic electronics with 20-0061)
▸ Instructions
www.behnke-online.com
Special needs Manual
Connection of analogue BT with additional
supply (use flat ribbon line provided 20-0061
and additional supply required)
Connection of analogue BT without
additional supply (only 2 LEDs)
Status LEDs
GB
Connections
37
