7.6.3 Connection to binocular or monocular head
• Any OPTIKA monocular or binocular microscope/
stereomicroscope.
• Any non-OPTIKA monocular or binocular micro-
scope/stereomicroscope.

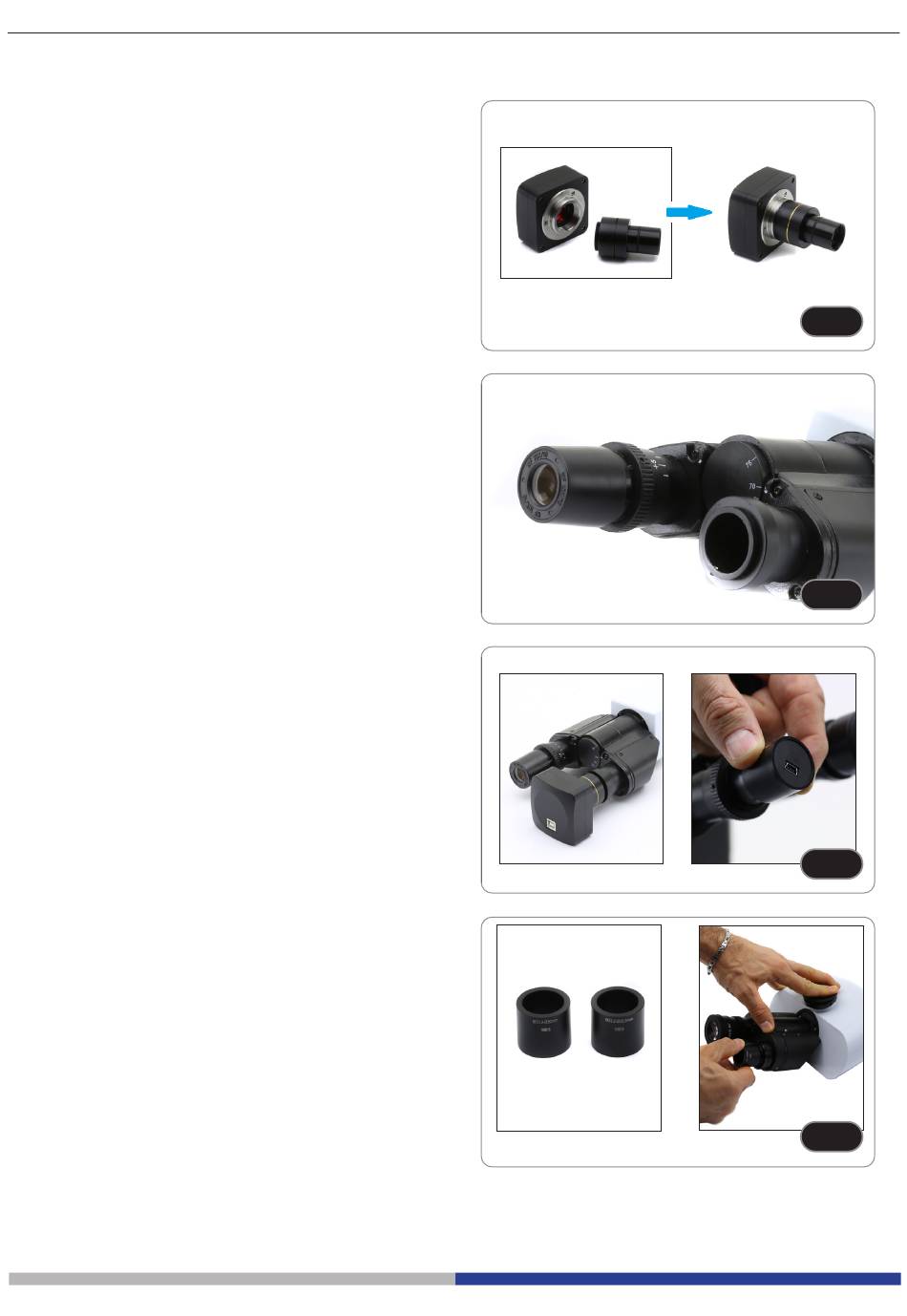

1. Remove the dust cover from camera and from
projection lens.
2. Screw the projection lens to the camera's thread.
(Fig. 8)
3. Remove one eyepiece from the observation head.
(Fig. 9)
4. Insert the final part of the projection lens into the
empty eyepiece sleeve. (Fig. 10)
5. In case of eyepiece sleeve with diameter 30 or
30.5 mm use the adapter rings. (Fig. 11)
Page 11
F ig. 8 F ig. 8
F ig. 9 F ig. 9
F ig. 10 F ig. 10
F ig. 11 F ig. 11
