Optika Italy C-B serie Bedienungsanleitung Seite 10

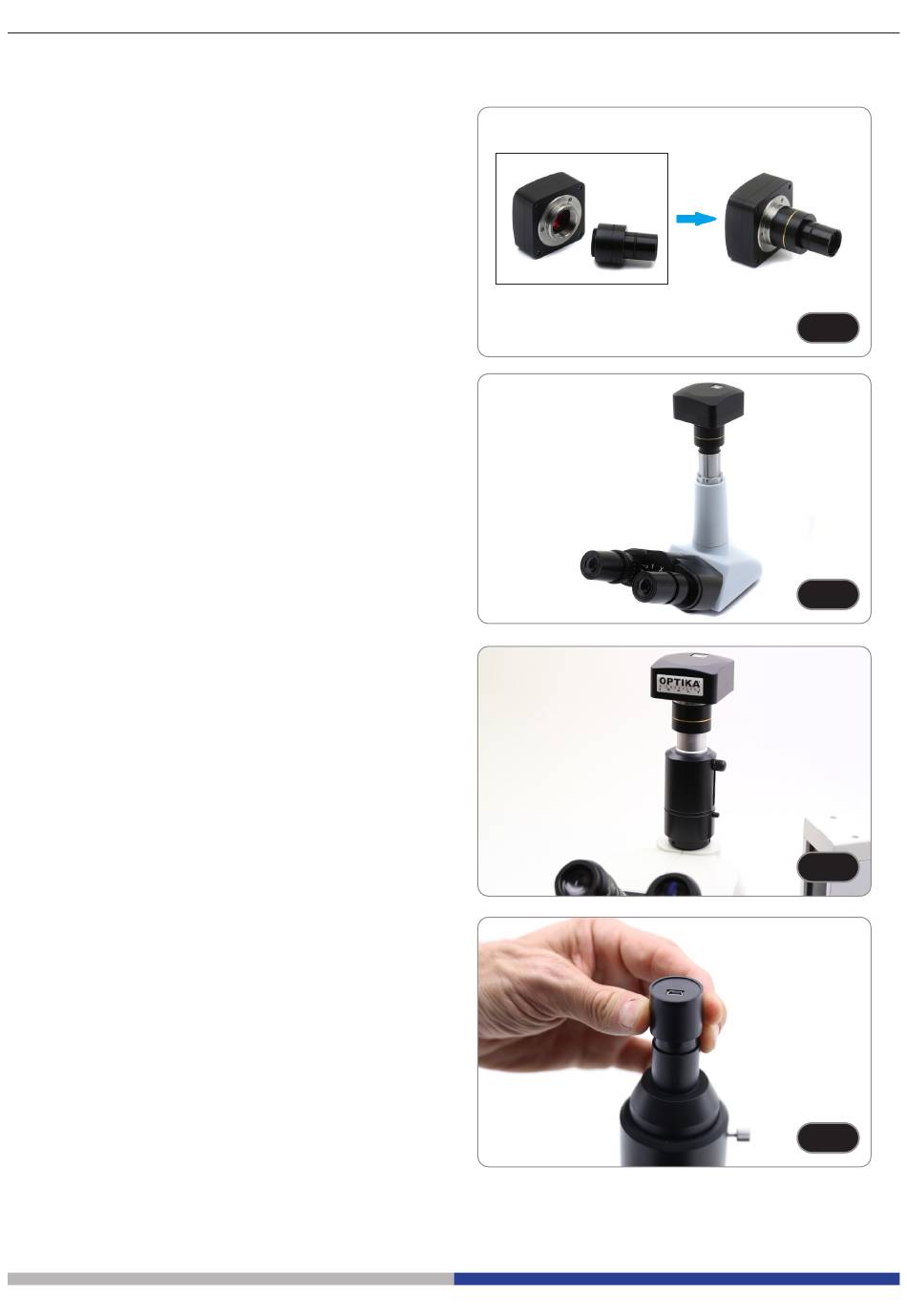

7.6.2 Connection to trinocular port using projection lens
1. Remove the dust cover from camera and from
projection lens.
2. Screw the projection lens to the camera's thread.
(Fig. 4)
• Installing on biological microscopes
3. Insert the final part of the projection lens into the
empty hole of the photo tube. (Fig. 5)
• Installing on stereomicroscopes
4. Insert the final part of the projection lens into the
empty hole of the photo tube. (Fig. 6)
• Installing C-E2 camera
5. Insert the microscope connector in the empty
hole of the photo tube. (Fig. 7)
Page 10
F ig. 4 F ig. 4
F ig. 5 F ig. 5
F ig. 6 F ig. 6
F ig. 7 F ig. 7
