16

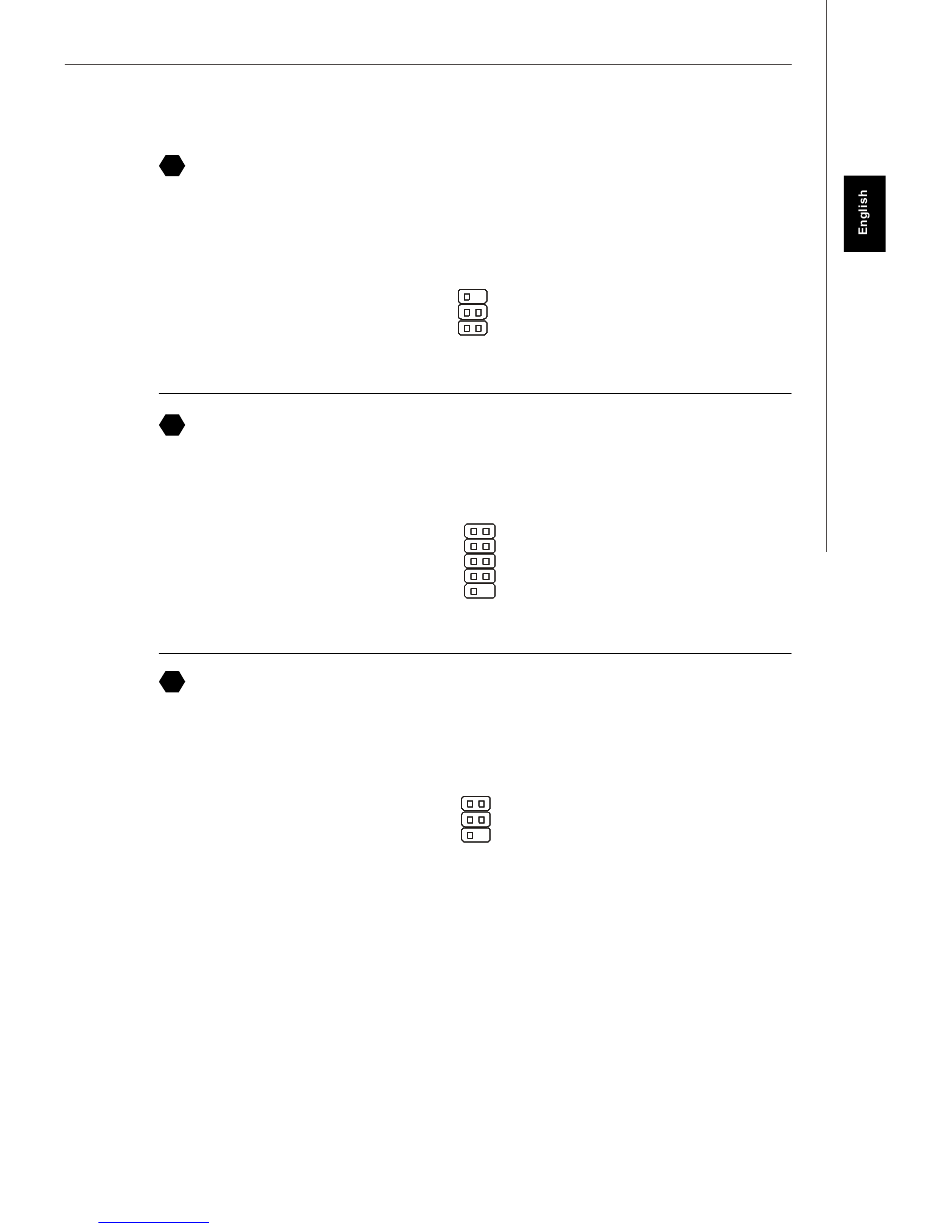

This connector allows you to connect to infrared module and is compliant with Intel
Front Panel I/O Connectivity Design Guide. You must configure the setting through the
BIOS setup to use the infrared function.
17
This connector is a 16550A high speed com m unication port that sends/receives 16
bytes FIFOs. You can attach a serial device.
18
This connector is for you to attach an optional TV-Out bracket that offers some types of
TV-Out connectors. Select the appropriate one to connect to an television.
Downloaded from www.Manualslib.com
Infrared Module Connector
Serial Port Connector
TV-Out Connector
manuals search engine
2
1
NC NC
Ground
VCC5
IRRX
IRTX
6
5
1 6
DSR
DCD
SIN RTS
CTS
SOUT
RI (9)
DTR
Ground
5
1 4
COMP or CVBS
Ground
Yout Ground (5)
Cout
3
Installation Guide
®
En-13
