I/O P
I/O P

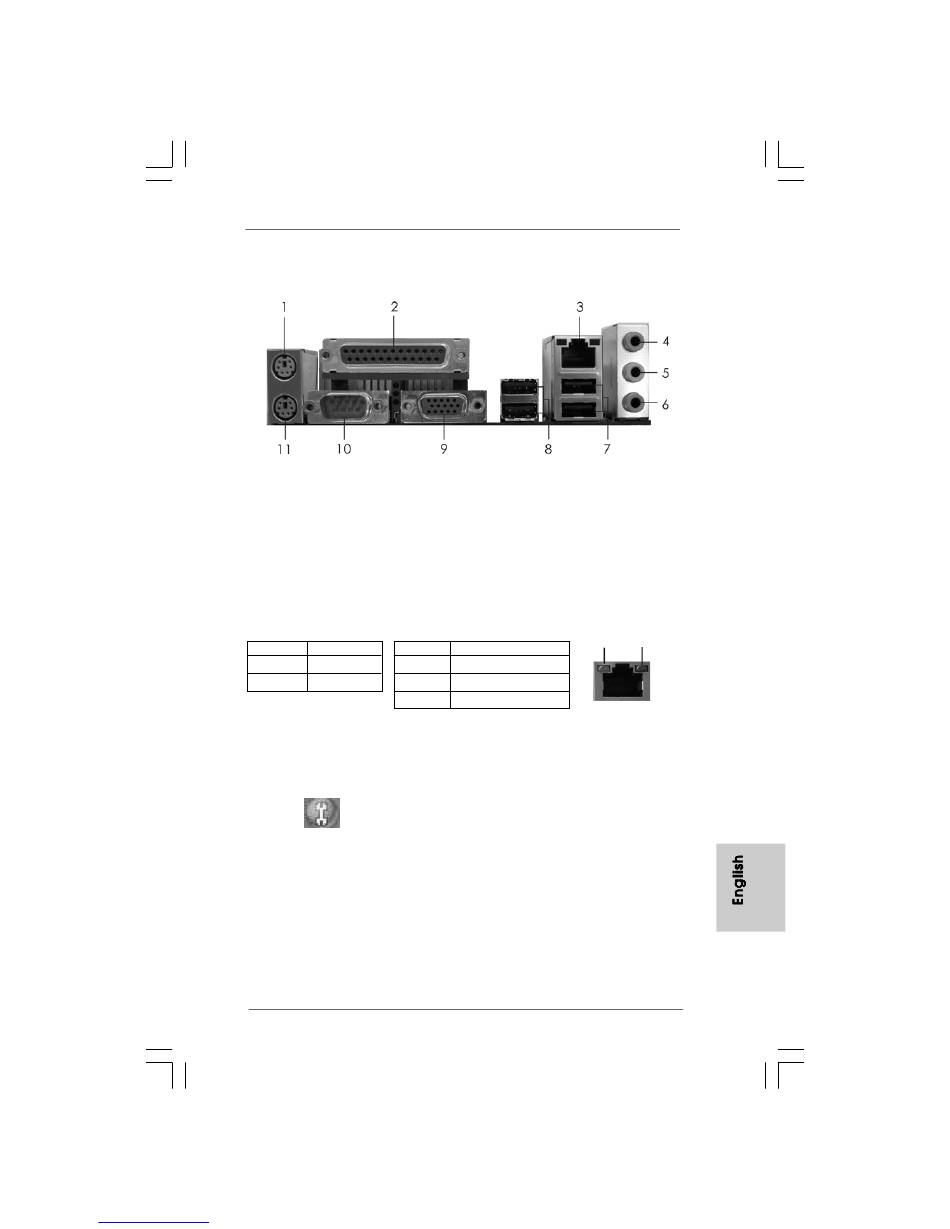

I/O Panel
I/O P
I/O P
anel
anel
anel
anel
1
PS/2 Mouse Port (Green)
2
Parallel Port
3
RJ-45 Port
4
Line In (Light Blue)
5
Line Out (Lime)
6
Microphone (Pink)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED
Status
Description
Off
No Activity
Blinking
Data Activity
** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
For Windows
®
XP:
After restarting your computer, you will find "Mixer" tool on your system. Please select "Mixer
ToolBox"
, click "Enable playback multi-streaming", and click "ok". Choose "2CH" or
"4CH" and then you are allowed to select "Realtek HDA Primary output" to use Rear Speaker
and Front Speaker, or select "Realtek HDA Audio 2nd output" to use front panel audio. Then
reboot your system.
®
TM
For Windows
7 / Vista
:
After restarting your computer, please double-click "Realtek HD Audio Manager" on the
system tray. Set "Speaker Configuration" to "Quadraphonic" or "Stereo". Click "Device
advanced settings", choose "Make front and rear output devices playbacks two different audio
streams simultaneously", and click "ok". Then reboot your system.
ASRock AD525PV3 / AD425PV3 Motherboard
manuals search engine
7
USB 2.0 Ports (USB01)
8
USB 2.0 Ports (USB23)
9
VGA Port
10
COM Port
11
PS/2 Keyboard Port (Purple)
SPEED LED
Status
Description
Off
10Mbps connection
Orange
100Mbps connection
Green
1Gbps connection
ACT/LINK
SPEED
LED
LED
LAN Port
3 3 3 3 3
