Data page configuration

Configuration via layout
Each display page can be customized using five editable layouts, a default layout for MediaBox
commands and a default layout for video inputs.

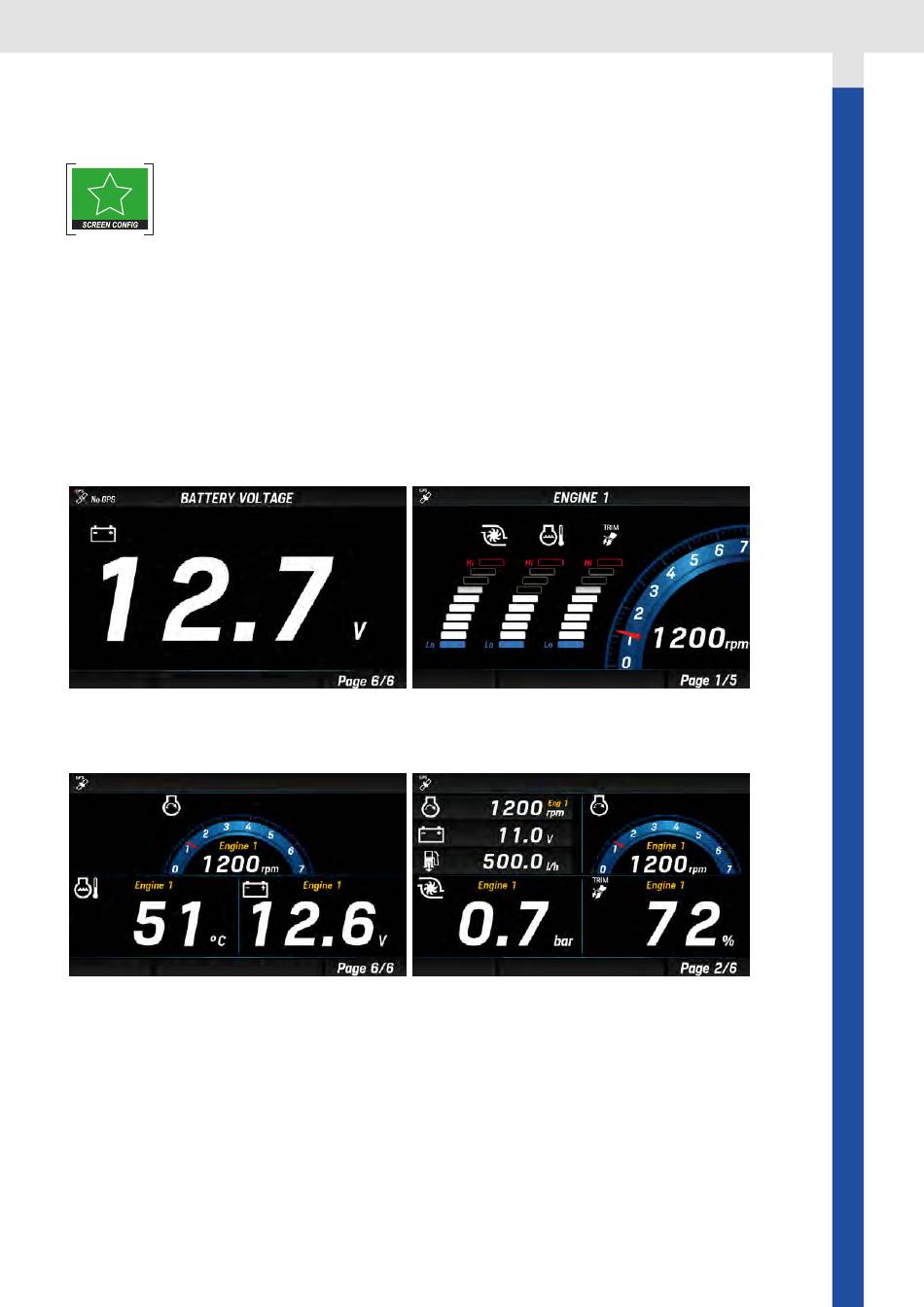

Layout description
Layout SINGLE: single box. The data value is numeric or
displayed by a gauge.
Layout TRIPLE: three boxes, from three data to nine data.
Layout GRAPH: with three bar graphs for the three data
selected from Boost pressure, Trim, Engine coolant
temperature, Battery voltage, Fuel consumption. One engine
revolution gauge not editable.
Layout QUAD: four boxes, from four data to twelve data.
