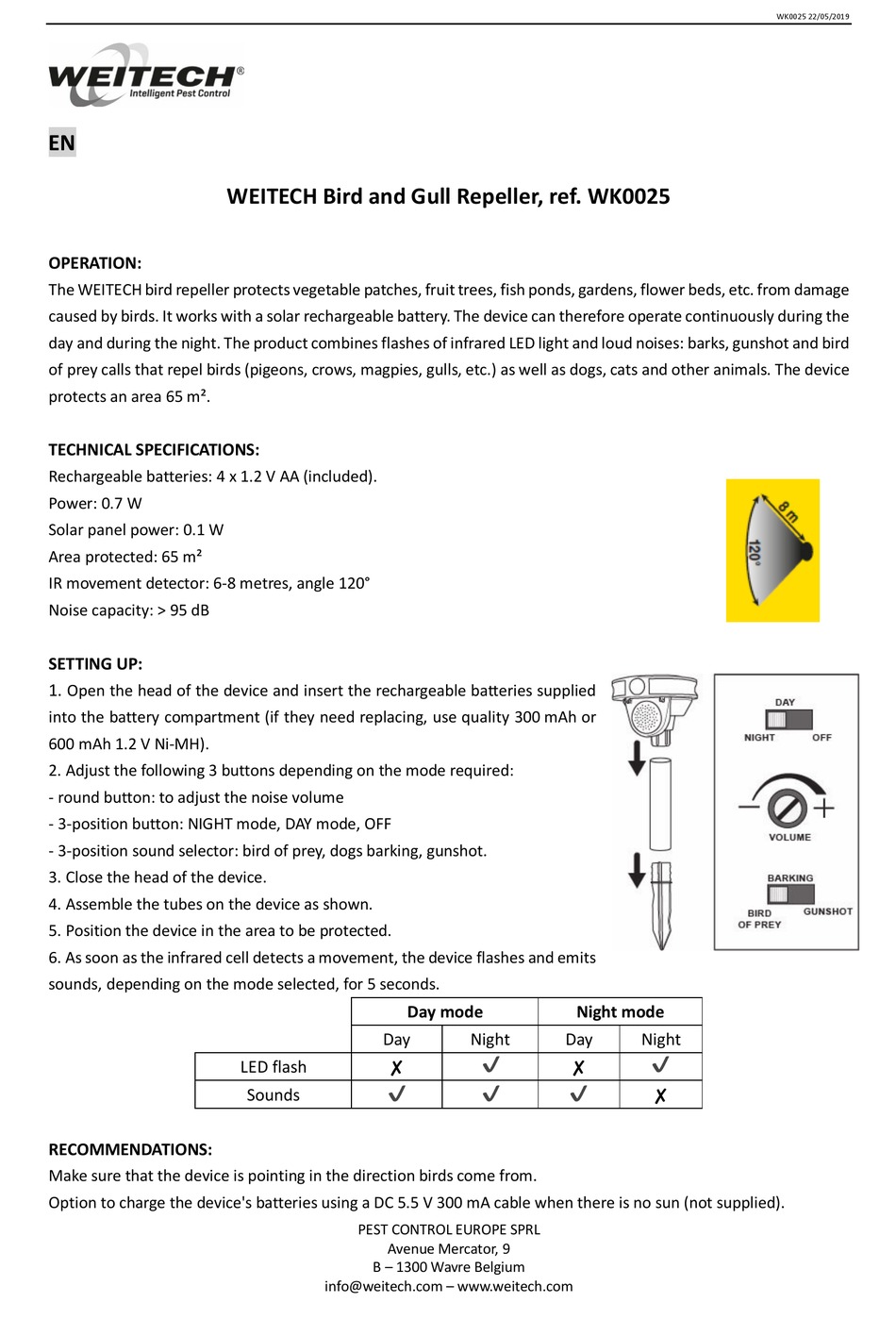

Weitech WK0025 Handbuch

EN
OPERATION:
The WEITECH bird repeller protects vegetable patches, fruit trees, fish ponds, gardens, flower beds, etc. from damage
caused by birds. It works with a solar rechargeable battery. The device can therefore operate continuously during the
day and during the night. The product combines flashes of infrared LED light and loud noises: barks, gunshot and bird
of prey calls that repel birds (pigeons, crows, magpies, gulls, etc.) as well as dogs, cats and other animals. The device
protects an area 65 m².
TECHNICAL SPECIFICATIONS:
Rechargeable batteries: 4 x 1.2 V AA (included).
Power: 0.7 W
Solar panel power: 0.1 W
Area protected: 65 m²
IR movement detector: 6-8 metres, angle 120°
Noise capacity: > 95 dB
SETTING UP:
1. Open the head of the device and insert the rechargeable batteries supplied
into the battery compartment (if they need replacing, use quality 300 mAh or
600 mAh 1.2 V Ni-MH).
2. Adjust the following 3 buttons depending on the mode required:
- round button: to adjust the noise volume
- 3-position button: NIGHT mode, DAY mode, OFF
- 3-position sound selector: bird of prey, dogs barking, gunshot.
3. Close the head of the device.
4. Assemble the tubes on the device as shown.
5. Position the device in the area to be protected.
6. As soon as the infrared cell detects a movement, the device flashes and emits
sounds, depending on the mode selected, for 5 seconds.
RECOMMENDATIONS:
Make sure that the device is pointing in the direction birds come from.
Option to charge the device's batteries using a DC 5.5 V 300 mA cable when there is no sun (not supplied).
WEITECH Bird and Gull Repeller, ref. WK0025
Day
✘
LED flash
✔
Sounds
PEST CONTROL EUROPE SPRL
Avenue Mercator, 9
B – 1300 Wavre Belgium
info@weitech.com – www.weitech.com
Day mode Night mode
Night Day
✔ ✘
✔ ✔
WK0025 22/05/2019
Night
✔
✘
