300Mbps Wireless N PCI Adapter – APPPCI300
2. Open the Router's Web-based Utility and click WPS link on the left of the main menu. Then
Figure 4-3 will appear.
new device's PIN and enter the PIN value of the adapter shown in Figure 4-8, click
Connect.
3. When Figure 4-7 appears, the WPS configuration is complete.

4.2.2 Enter the PIN from your AP device

1. Open the WPS Utility and you will see Figure 4-5 . Click Next to continue. Then Figure
4-10will appear. Select the third option and enter the PIN value which is labeled on the
bottom of the Router. Click Next.
User's Guide

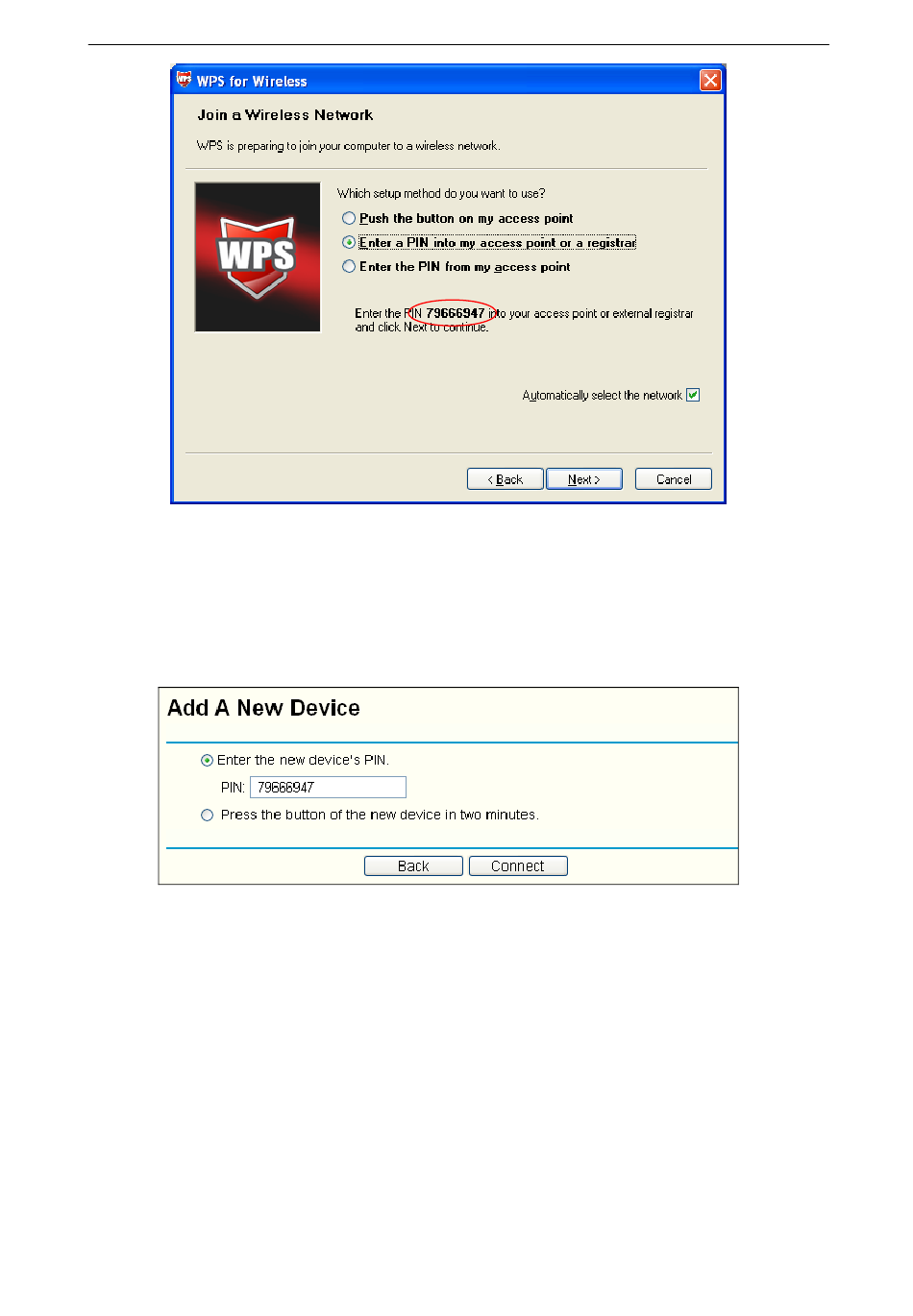

Figure 4-8
Click Add device, then you can see Figure 4-8 Select Enter the
Figure 4-9
English
70
