300Mbps Wireless N PCI Adapter – APPPCI300

Chapter 4. WPS configuration

WPS (Wi-Fi Protected Setup) function allows you to add a new wireless device to an existing
network quickly.
If the wireless card supports Wi-Fi Protected Setup (WPS), you can establish a wireless
connection between wireless card and router using either Push Button Configuration (PBC)
method or PIN method.

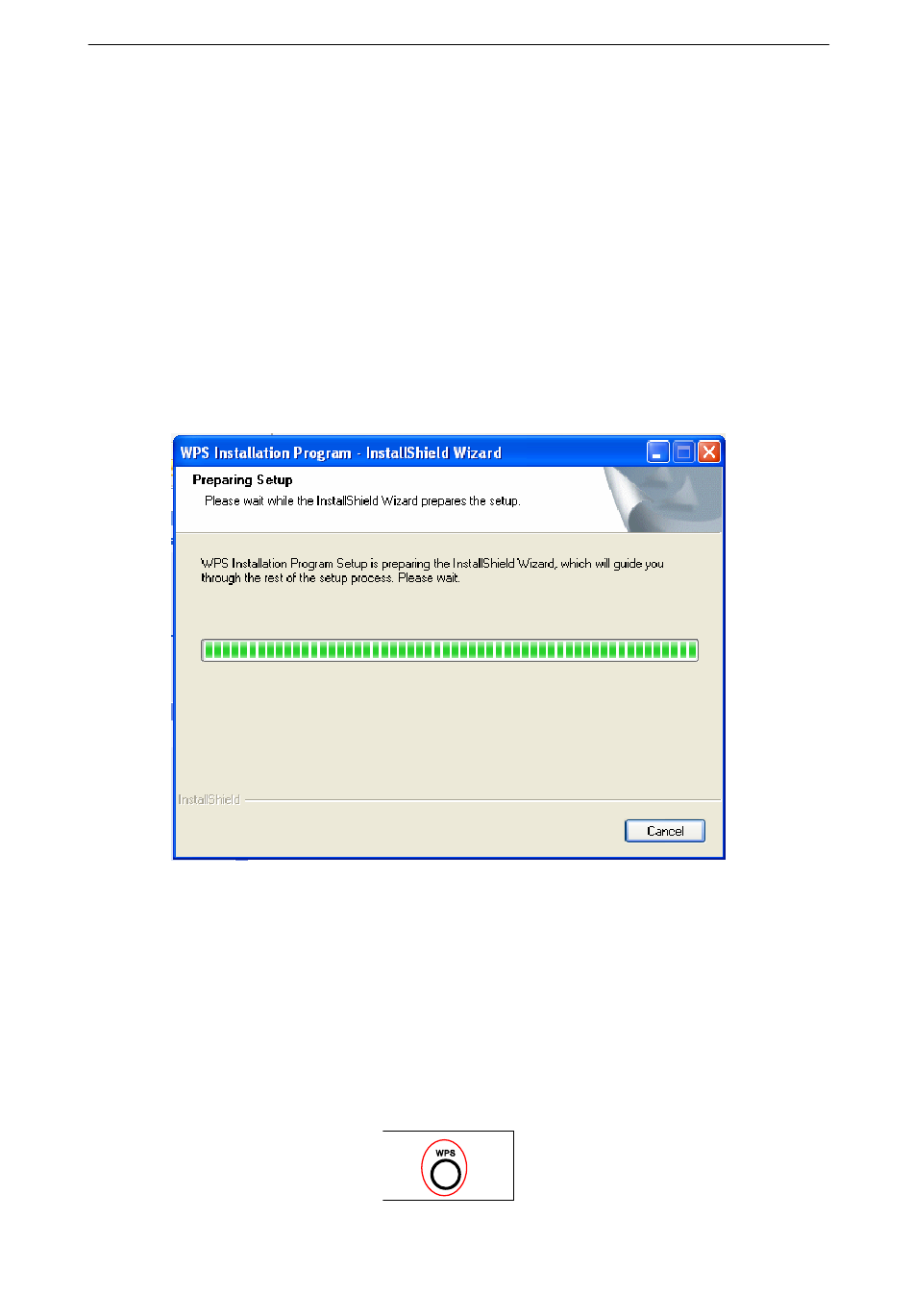

First, the WPS software should be installed. Insert the Resource CD into your CD-ROM drive.
To continue, double-click My Computer, and then double-click the CD/DVD drive where the
installation CD was placed. Open APPPCI300 folder, and double-click wps.exe. Then you will
see Figure 4-1.
Then, please follow the step-by-step instruction to complete the WPS installation. After that,
WPS function can be enabled. Here we will introduce two ways to configure the WPS.

4.1 PBC (Push Button Configuration) method

1. Firstly, press the WPS button of
1) Press the WPS button dir
User's Guide
Figure 4-1
the router. There a re two ways:
ectly on the front panel o
Figure 4-2
f the Router shown in Figure 4-2.
English
