Before connecting the dishwasher drain piping, using a screwdriver and a hammer, remove the diaphragm
on the disposer body as illustrated in the figure and remove any residual plastic parts from inside the
grinding chamber.
14.
Connect the piping indicated in the figure to the facility's local sewer drain.
To hook up the food waste disposer to the sewer drain, carry out installation as indicated in the figure,
observing the measures shown on the technical specifications card and the relative table.
One-way drain connection

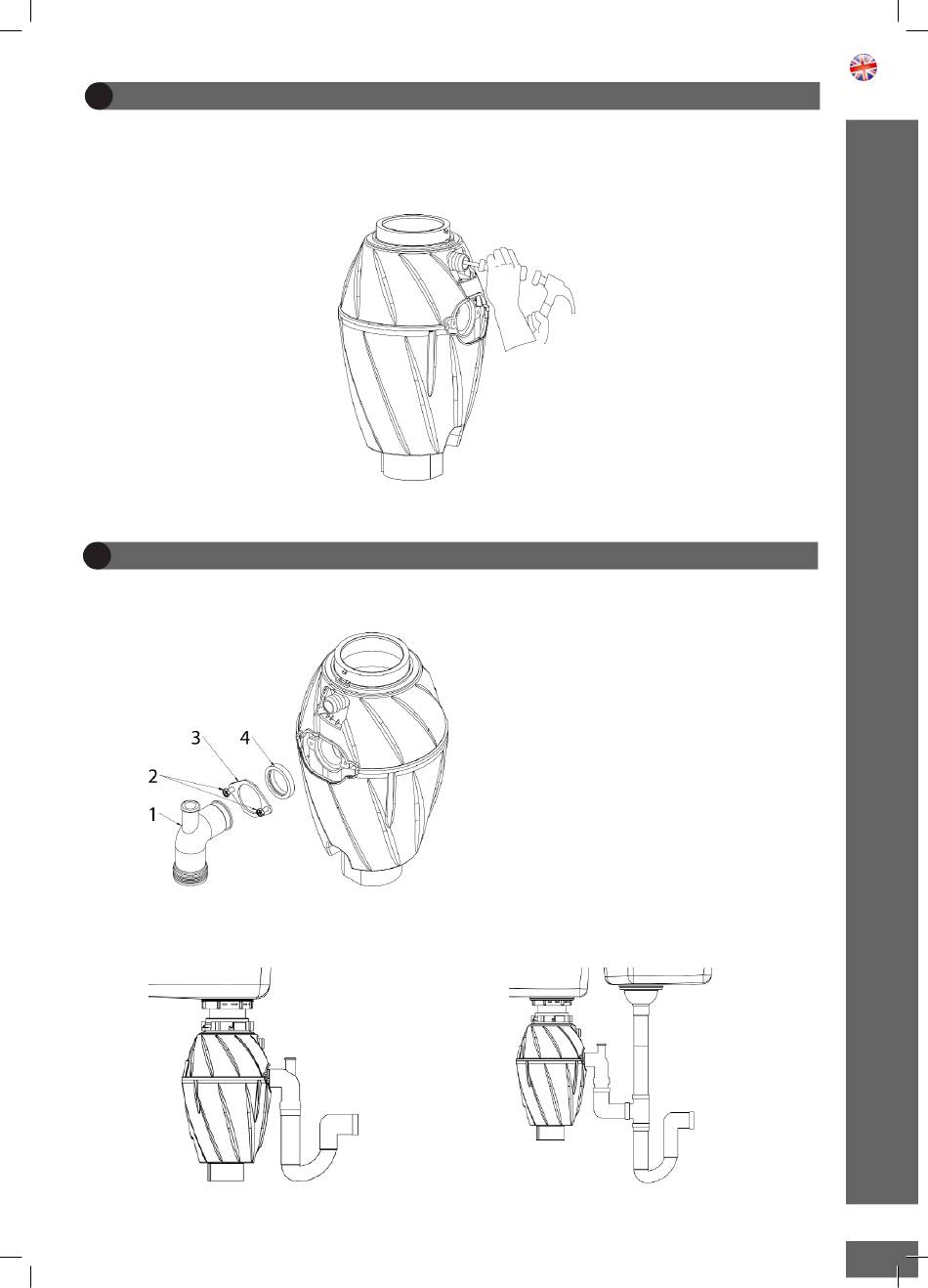

DISHWASHER CONNECTION

Removal of the diaphragm

DRAINAGE CONNECTION

1. Drain (elbow fixing)
2. Fixing screws
3. Flange
4. Gasket
Two-way drain connection
