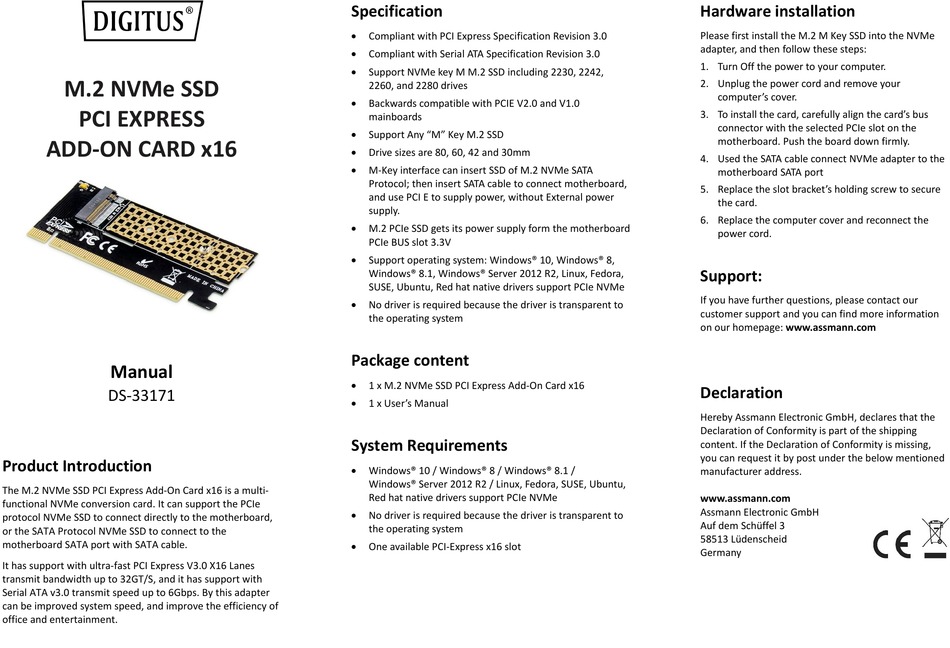

Digitus DS-33171 Benutzerhandbuch

M.2 NVMe SSD
PCI EXPRESS
ADD-ON CARD x16
Manual
DS-33171
Product Introduction
The M.2 NVMe SSD PCI Express Add-On Card x16 is a multi-
functional NVMe conversion card. It can support the PCIe
protocol NVMe SSD to connect directly to the motherboard,
or the SATA Protocol NVMe SSD to connect to the
motherboard SATA port with SATA cable.
It has support with ultra-fast PCI Express V3.0 X16 Lanes
transmit bandwidth up to 32GT/S, and it has support with
Serial ATA v3.0 transmit speed up to 6Gbps. By this adapter
can be improved system speed, and improve the efficiency of
office and entertainment.
Specification

Compliant with PCI Express Specification Revision 3.0

Compliant with Serial ATA Specification Revision 3.0

Support NVMe key M M.2 SSD including 2230, 2242,
2260, and 2280 drives

Backwards compatible with PCIE V2.0 and V1.0
mainboards

Support Any "M" Key M.2 SSD

Drive sizes are 80, 60, 42 and 30mm

M-Key interface can insert SSD of M.2 NVMe SATA
Protocol; then insert SATA cable to connect motherboard,
and use PCI E to supply power, without External power
supply.

M.2 PCIe SSD gets its power supply form the motherboard
PCIe BUS slot 3.3V

Support operating system: Windows® 10, Windows® 8,
Windows® 8.1, Windows® Server 2012 R2, Linux, Fedora,
SUSE, Ubuntu, Red hat native drivers support PCIe NVMe

No driver is required because the driver is transparent to
the operating system
Package content

1 x M.2 NVMe SSD PCI Express Add-On Card x16

1 x User's Manual
System Requirements

Windows® 10 / Windows® 8 / Windows® 8.1 /
Windows® Server 2012 R2 / Linux, Fedora, SUSE, Ubuntu,
Red hat native drivers support PCIe NVMe

No driver is required because the driver is transparent to
the operating system

One available PCI-Express x16 slot
Hardware installation
Please first install the M.2 M Key SSD into the NVMe
adapter, and then follow these steps:
1. Turn Off the power to your computer.
2. Unplug the power cord and remove your
computer's cover.
3. To install the card, carefully align the card's bus
connector with the selected PCIe slot on the
motherboard. Push the board down firmly.
4. Used the SATA cable connect NVMe adapter to the
motherboard SATA port
5. Replace the slot bracket's holding screw to secure
the card.
6. Replace the computer cover and reconnect the
power cord.
Support:
If you have further questions, please contact our
customer support and you can find more information
on our homepage: www.assmann.com
Declaration
Hereby Assmann Electronic GmbH, declares that the
Declaration of Conformity is part of the shipping
content. If the Declaration of Conformity is missing,
you can request it by post under the below mentioned
manufacturer address.
