Attaching Hook Bracket to Display with VESA 75 or 100 Mounting Pattern

• If screws don't get three complete turns in the display inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to display or product may fail.

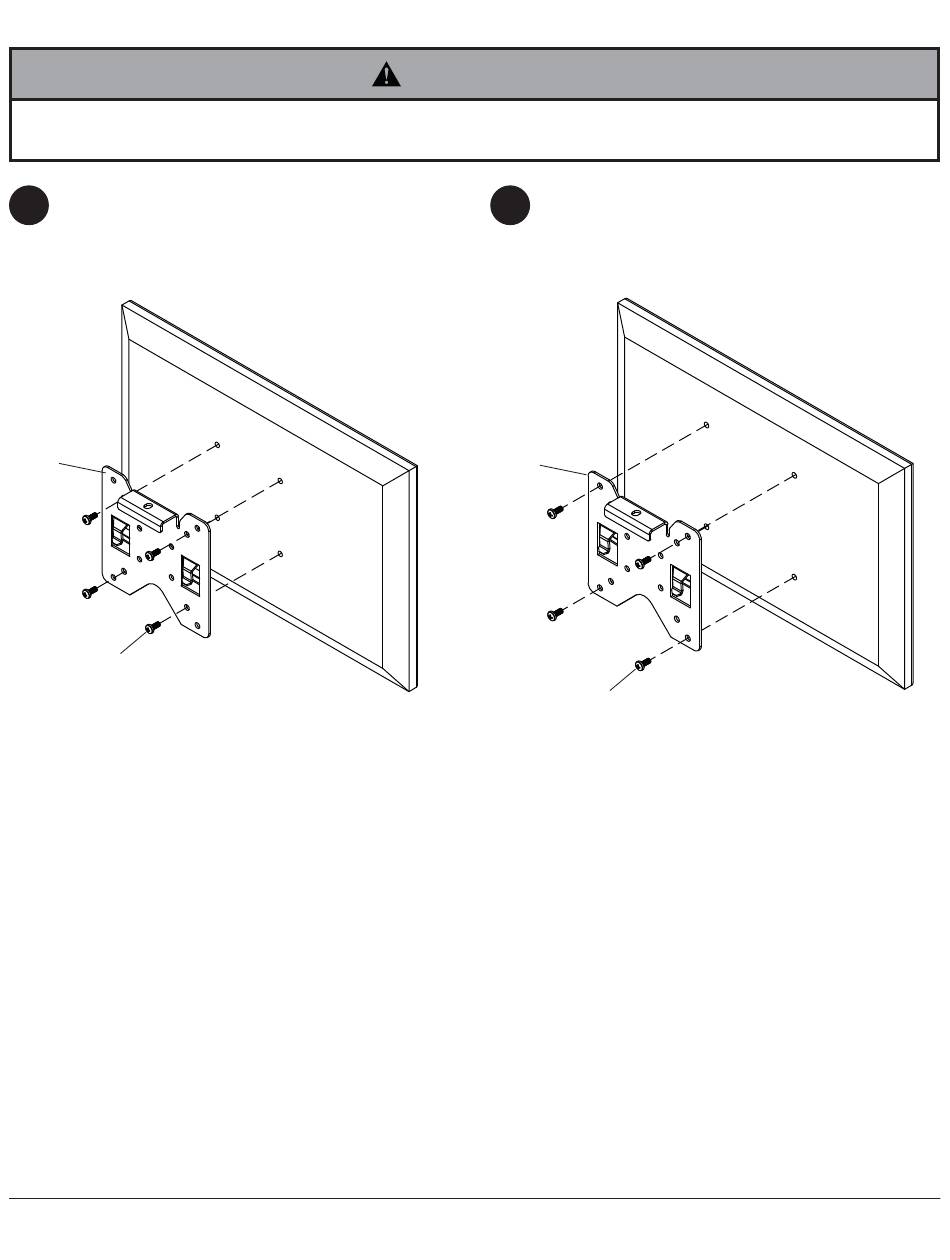

FOR VESA ® 75 MOUNTING PATTERN:
3
Choose hole pattern as shown below. Attach hook
bracket (A) to back of display using four M4 screws
(E) as shown below.
A
E
WARNING
FOR VESA 100 MOUNTING PATTERN:
3
Choose hole pattern as shown below. Attach hook
bracket (A) to back of display using four M4 screws
(E) as shown below.
A
E
