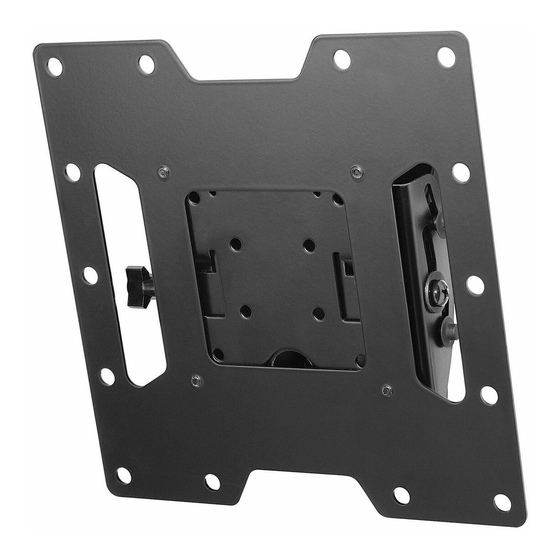

Installing Universal Tilt Wall Mount to Metal Stud Walls
(Metal Stud Accessory Kit ACC 215 Required)
• Drywall must be 1/2" (13 mm) or thicker, and metal stud must be 24 gauge or thicker.
• Make sure that the wall will safely support the combined load of the equipment and all attached hardware and
components.
Using a stud finder, locate and mark the edges of the metal stud used in mounting this product. Use of an edge to
1
edge stud finder is highly recommended. Use a level to draw a level, vertical line down the center of the stud. Level
tilt assembly (B), and mark the center of the two mounting holes. Make sure that the mounting holes are on the
stud centerlines. Drill two 1/2" (13 mm) holes through drywall and metal studs. NoTe: It may be necessary to drill
5/32" (4 mm) pilot holes prior to drilling 1/2" (13 mm) holes.
Refer to instruction sheet included with Peerless accessory kit ACC215 for metal studs to install togglers.

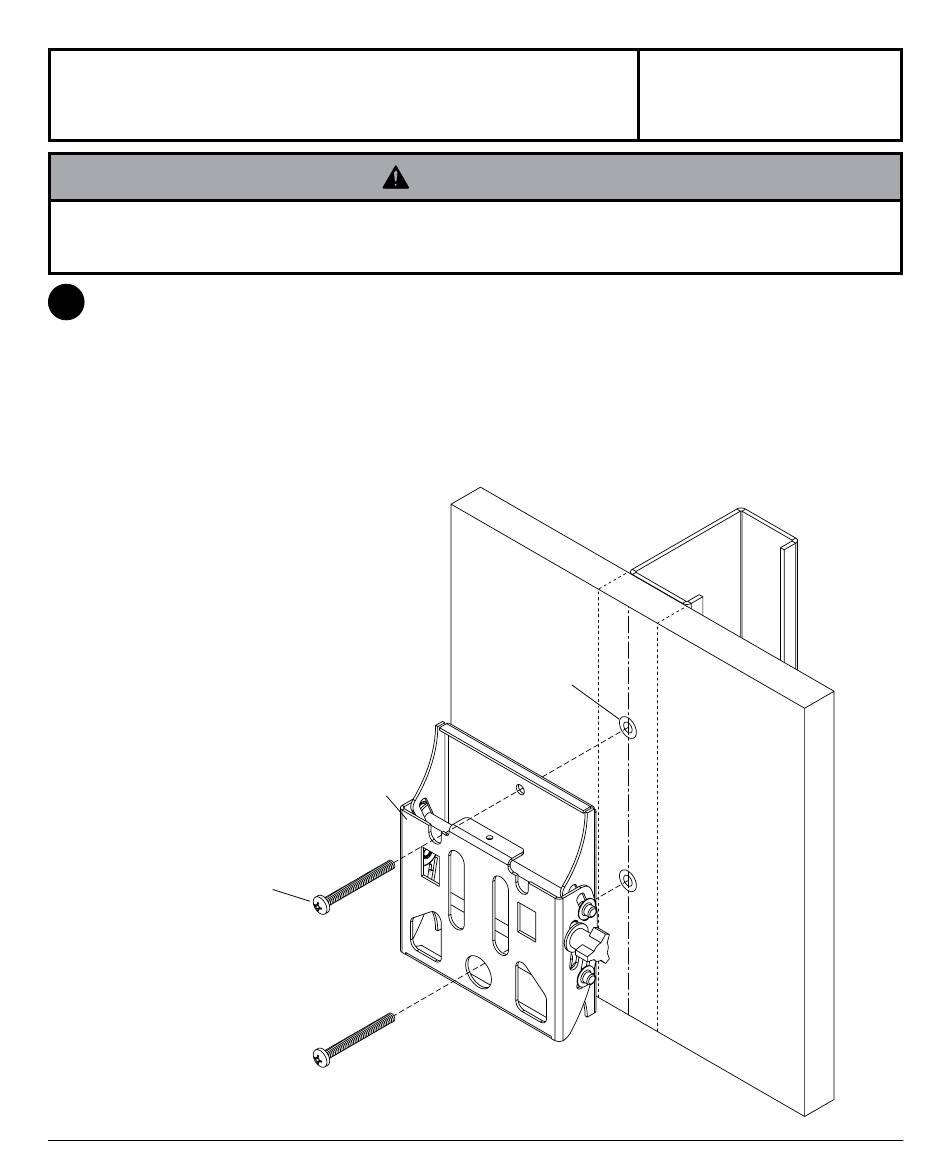

Loosely fasten tilt assembly (B) to wall using two 1/4-20 x 2-1/2" screws as shown. Level, hold, and then tighten all
screws.
Skip to step 2 of main instruction sheet.
1/4-20 x 2-1/2"
phILLIps screws
WARNING
toggLer
B
1 of 4
Models: ST632, ST632-S,
ST632P, ST632P-S,
RTFPT632, RTFPT632S,
SWV220/BK, SWS220/SI
ISSUED: 05-11-05 SHEET #: 201-9475MS-4 06-16-09
