Phonocar 05937 Gebrauchsanweisungen Seite 3

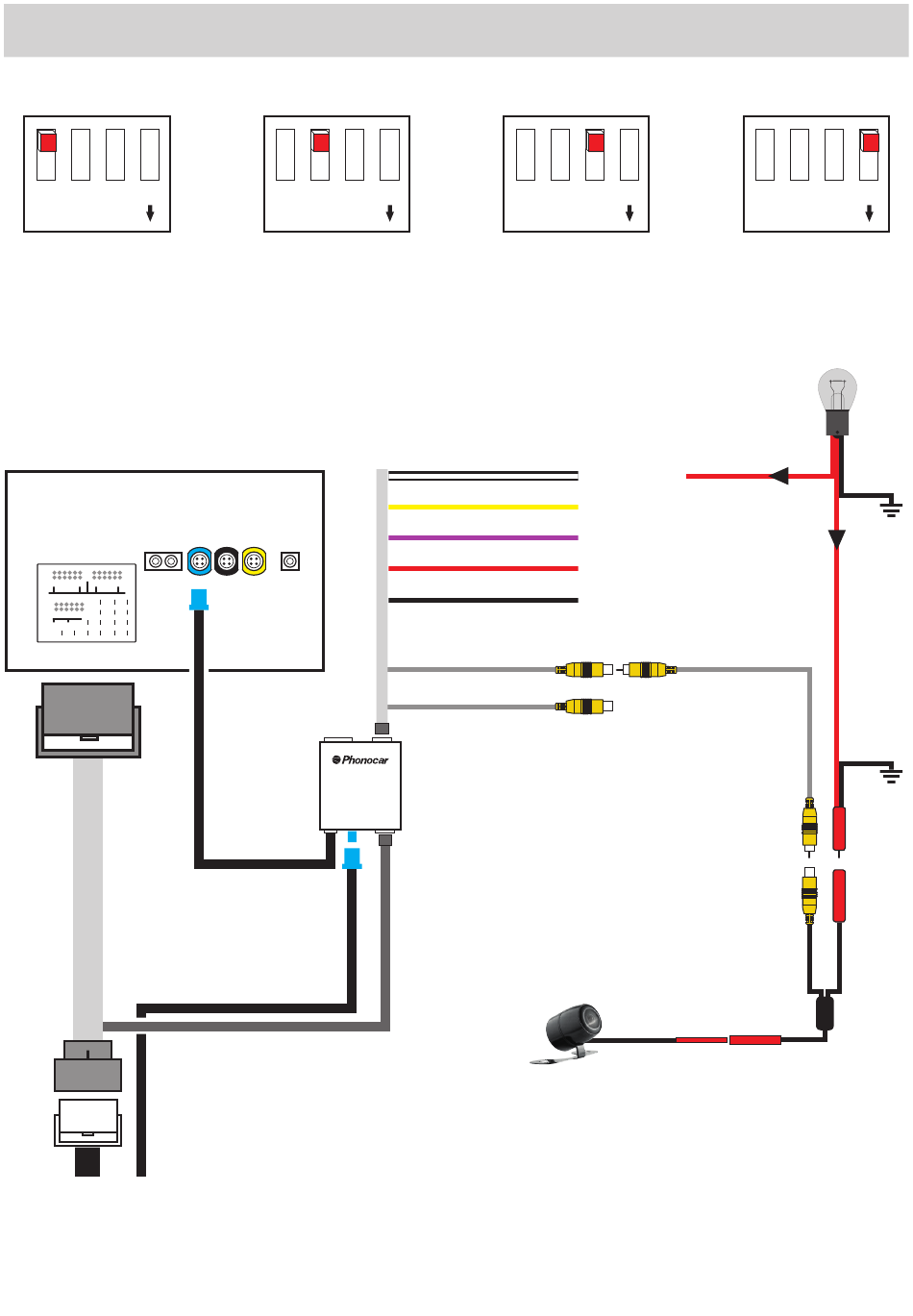

Collegamenti • Connections • Connexions • Anschlüsse • Conexiones
1 2 3 4
DIP ON
DIP 1 MODEL
OFF 2015> classe C-A
ON 2015> classe
B-E-CLA-CLS
ORIGINALE
ORIGINAL
1 2 3 4
DIP ON
DIP 2 FRONT CAMERA
OFF UNISTALLED
ON INSTALLED
BIANCO / WHITE
GIALLO / YELLOW
VIOLA / PURPLE
ROSSO / RED
NERO / BLACK
REAR CAMERA
FRONT CAMERA
05937
1 2 3 4
DIP ON
DIP 3 DISABLE
REVERSE +12 V
OUT +12 V BATTERY
+12 V POWER CAMERA
+12 V SOTTOCHIAVE (+12 V ACC)
GROUD
1 2 3 4
DIP ON
DIP 4 RESOLUTION
OFF 800 x 480 (7,4")
ON 960 x 480 (8,4")
REVERSE LIGHT +12 V
