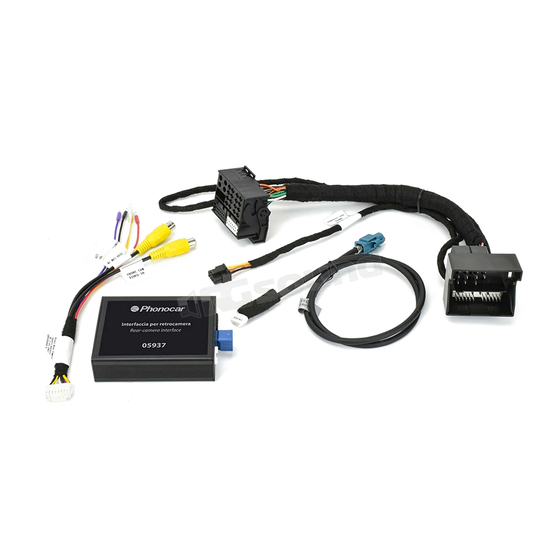

INTERFACCIA PER COLLEGARE RETROCAMERE UNIVERSALI ALLE AUTORADIO ORIGINALI INTERFACES FOR CONNECTING UNIVERSAL REAR CAMERAS TO ORIGINAL CAR RADIOS MERCEDES con navigatore / with navigator NTG 5.0 MANUALE ISTRUZIONI • INSTRUCTIONS MANUAL NOTICE DE MONTAGE ET D’EMPLOI • GEBRAUCHSANWEISUNGEN MANUAL DE INSTRUCCIONES 05937...
Seite 2
I - Dispositivo che permette di collegare una telecamera universale posteriore ( mirror)al monitor originale della vettura .La telecamera anteriore è possibile installarla solo in presenza della telecamera posteriore GB - Device which allows to connect a universal rear camera (mirror) to the original monitor of the vehicle. It is possible to install the front camera only in the presence of the rear camera.
Seite 3
BIANCO / WHITE REVERSE +12 V GIALLO / YELLOW OUT +12 V BATTERY VIOLA / PURPLE +12 V POWER CAMERA ROSSO / RED +12 V SOTTOCHIAVE (+12 V ACC) NERO / BLACK GROUD REAR CAMERA FRONT CAMERA 05937 ORIGINALE ORIGINAL...
Seite 4
Phonocar - Via F.lli Cervi, 167/C - 42124 Reggio Emilia (Italy) - Tel. ++39 0522 941621 - Fax ++39 0522 1602093 S.p.A. www.phonocar.com - e-mail:info@phonocar.it...
