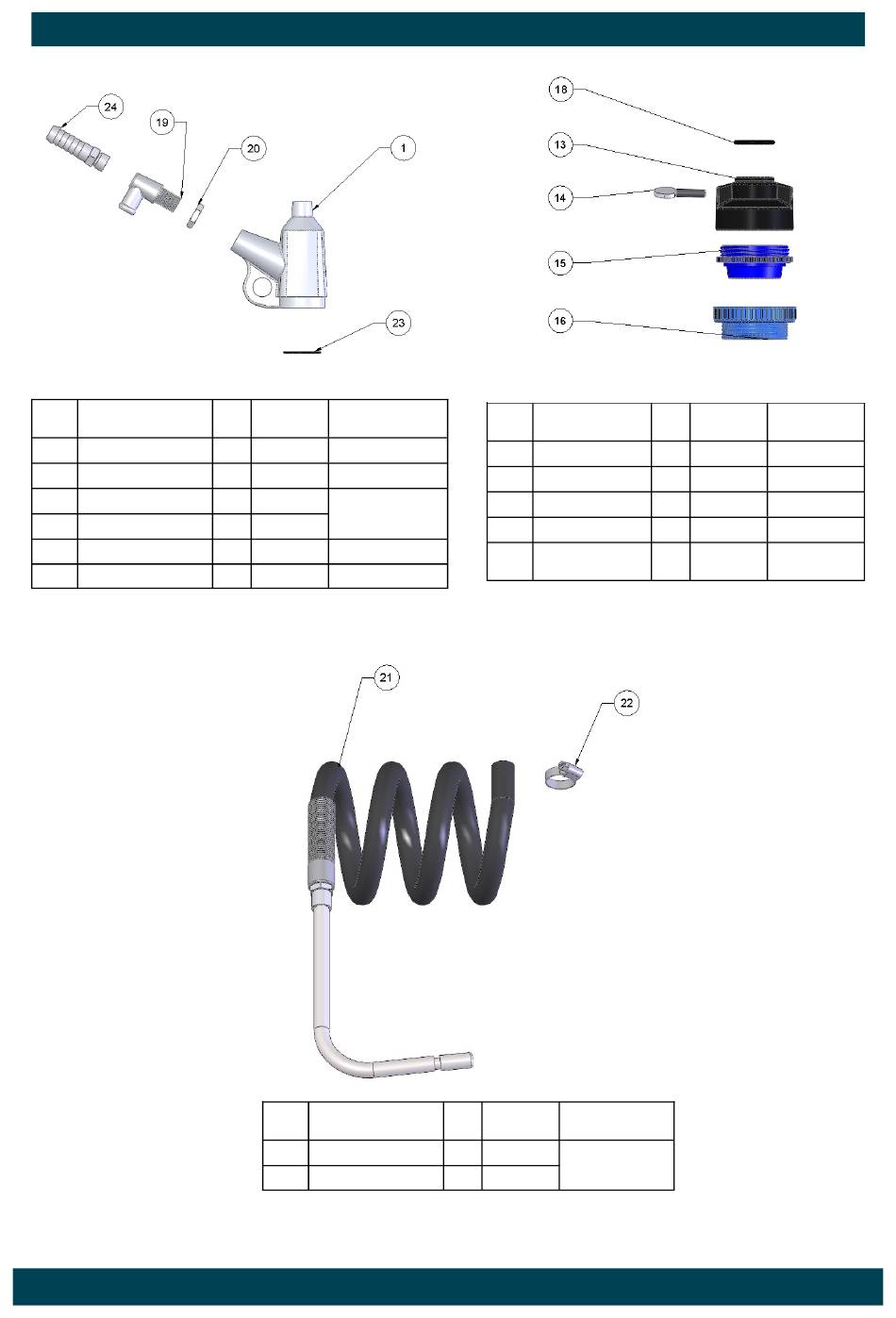

Spare Part Diagrams
ITEM DESCRIPT ION
1 C7 BODY
1 C7 BODY ZINC
19 ADAPTOR
20 NUT
23 O-RING
24 BARB
AG12 Issue 10 © 2011
QTY OVERHAUL PART/ SET
KIT
1 AG21S
1 AG21S-1
1
AC12S
1
1 C7-1K AG21S
1 KM8S
ITEM DESCRIPT ION
21 HOSE ASSEMBLY
22 HOSE CLAMP
Note
No hose supplied with C7N-01
ITEM DESCRIPT ION
13 COLLAR
14 THUMB SCREW
15 DRUM ADAPTOR
16 DRUM ADAPTOR
18 O-RING
QTY OVERHAUL PART/ SET
KIT
1
AG88S
1
QTY OVERHAUL PART/ SET
KIT
1 AC24S
1 AC24S
1 AC24S
1 AC24S
1 C7-1K AC24S +
BS024
