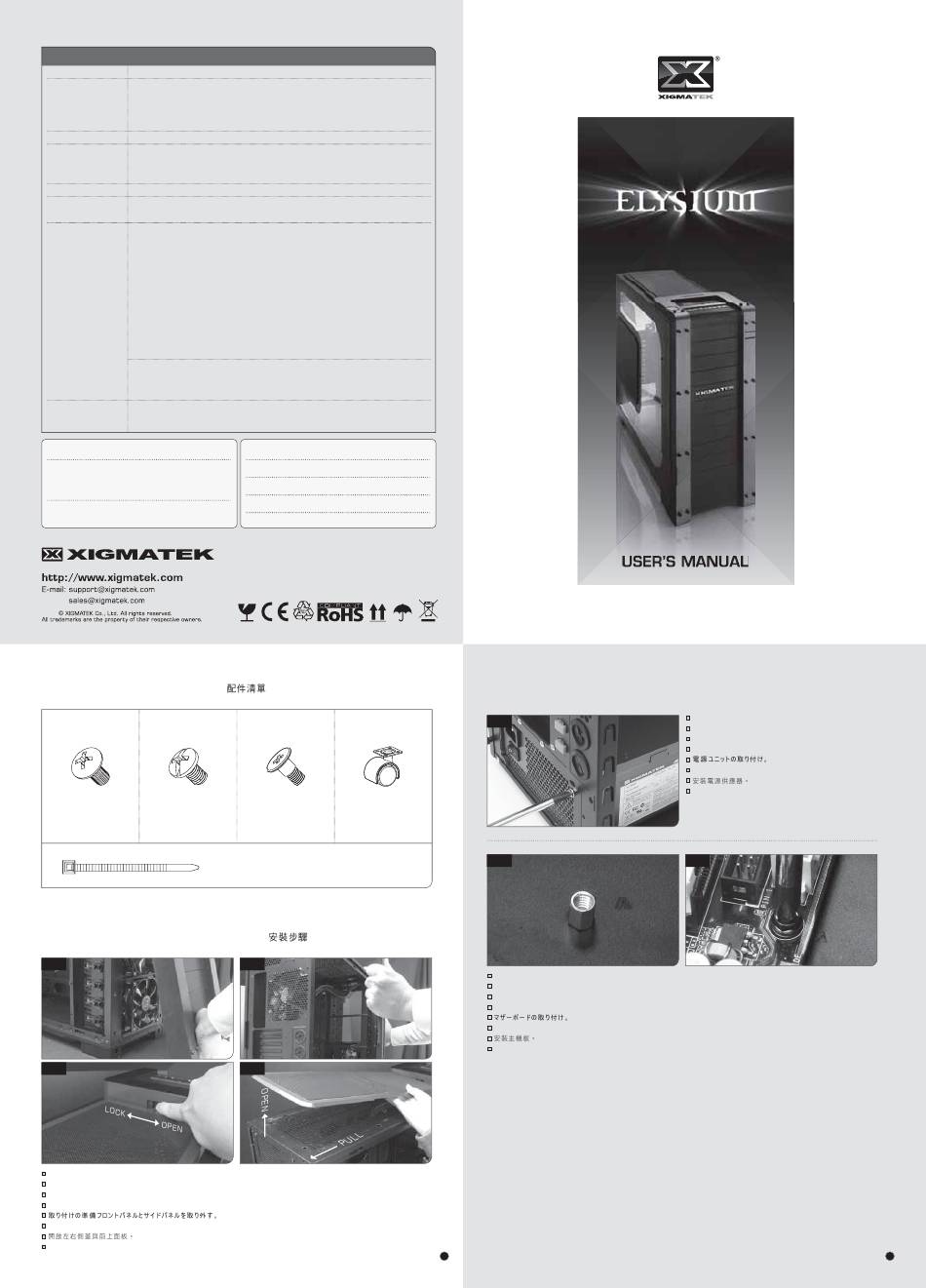

XIGMATEK ELYSIUM Installationsanleitung

Specification

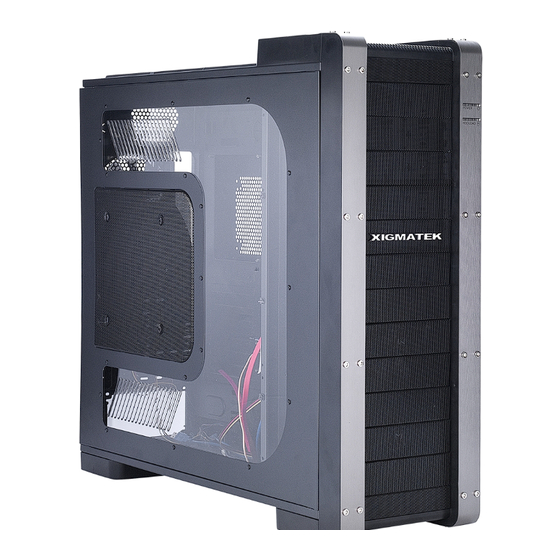

Product Name ELYSIUM
Dual standard P/S2 ATX/EPS power supply units
1. Intake airflow hole with dust filter (Bottom space only).
Power Supply
2. Available for face upward and downward installation.
3. Within anti-vibration rubber (Bottom space only).
Dimensions 230(W) x 618(H) x 663(D) mm (9.06*24.33*26.10 inches)
5.25" External x 12 with both side tool-free holders.
Drive Bay (Including two 4 in 3 3.5" HDD cage.)
3.5" Internal HDD x 8 by HDD cages.
Expansion Slot
10 slots.
Extended-ATX, SSI CEB/EEB, XL-ATX, ATX, Micro ATX
Motherboard Support
(with CPU cooler black plant installation window)
Air-cooling
Front Fan: Pre-installed 120mm white LED with black blades x 2
(On the 4 in 3 HDD cage.)
Rear Fan: Pre-installed 140mm white LED with black blades x 1
(120mm fan is available)
Side Fan: Pre-installed 200mm white LED with black blades x 1
Cooling System CPU Fan: 80/120mm fan x 1 available
Bottom Fan:If PSU was installed on bottom space: 120/140mm fan x2 or 200mm fan x 1
If PSU was installed on top space: 120/140mm fan x3 or 200mm fan x 2
Top Fan:
If PSU was installed on bottom space: 120/140mm fan x3 or 200mm fan x 2
If PSU was installed on top space: 120/140mm fan x2 or 200mm fan x 1.
Water-cooling
Water pipe holes x 7 (with rubber cover)
Available for 360/420mm radiator
Top Panel: Power button, Reset button, USB3.0 x 2, USB2.0 x 2, e-SATA x 1,
I/O Panel
Audio in/out x 1 (HD Audio), One 2.5"/3.5" HDD hot-swap docking.
Distributer:
Date of Purchase:
2011
Accessory List | Accessoires Liste | Tillbehörslista | Lista de accesorios
| Список аксессуаров |
付属品一覧
Wheel screw X 16 MB and PSU
screw X 20
Installation Guide | Installationsanweisungen | Installationsguide | Manual de instalación
| Инструкция по установке |
取り付けガイド
1-1
1-3
Open panels and covers to begin installation.
Öffnen Sie die Seitenpanele um mit der Installation zu beginnen.
Öppna höljet och panelerna.
Apertura de los laterales para comenzar la instalación.
Открытие панелей и крышек для начала установки.
Ouvrir les façades latérales et du dessus avant de commencer l'in.
User Name:
Email:
Model Name:
Serial No:
| Accessoires
3.5" HDD Chassis wheel X 4
screw X 32
Cable tie
| Guide d'installation
1-2
1-4
EL YSIUM - THE ONE AND ONL Y
XIGMATEK SUPER TOWER CHASSIS
2-1
3-1
Motherboard installation.
Motherboard Installation.
Installation av moderkort.
Instalación de la placa base.
Установка материнской платы.
Installation de la carte mère.
1
USER'S MANUAL
www.xigmatek.com
Power supply unit installation.
Powersupply Installation.
Installation av nätdel.
Instalación de la Fuente de alimentación.
Установка блока питания.
Installation de l'unité d'alimentation.
3-2
2
