Interlogix DC106 Serie Installationsanleitung

DC106 Series Magnetic Contact Installation
Sheet
EN DE ES FR IT NL PL PT SV
1
0.56
14.2 mm
1.31 in.
33.1 mm
3
(1)
4K7
4K7

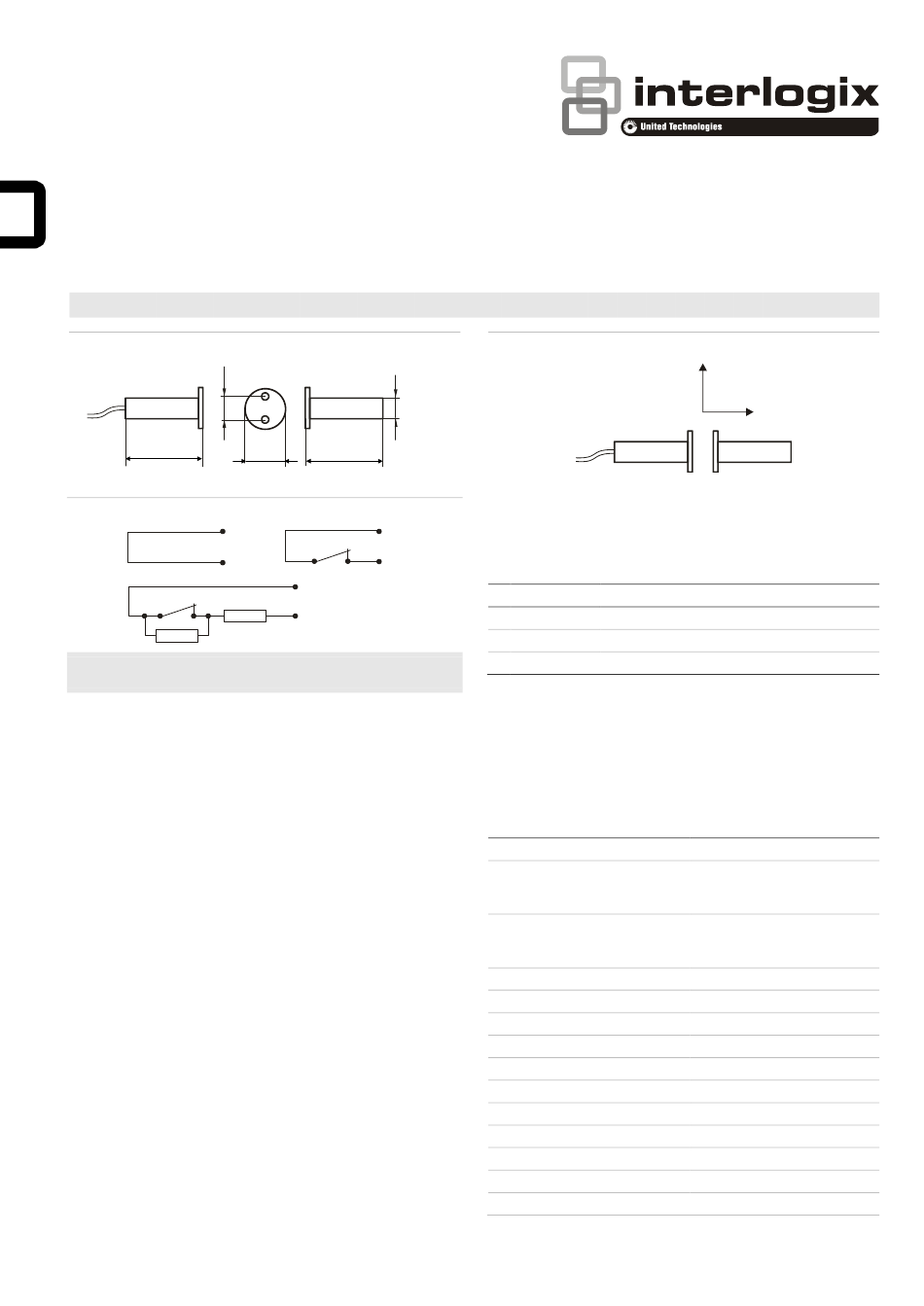

EN: Installation Sheet
Description
The DC106 series are flush mount magnetic contacts that can
be connected to a burglar alarm system. For differences in the
DC106 series see "Specifications" below.
Note: The DC106 series cannot be used in ferromagnetic
doors.
Mounting
The magnetic contact and the magnet are to be mounted
directly across from each other. Select the desired mounting
positions and drill appropriate holes. Mount the magnet and the
contact in the holes and secure with screws trough flange
holes.
During installation the switching distances have to be
individually determined for each contact.
When the installation is completed, the electrical switch
function of the magnetic contact must be checked (e.g. with a
continuity checker or multimeter). Use of mechanical force, for
example when installing, can damage the glass body of the
reed switches.
Note: When installing the contact please keep in mind that the
doors can bend under temperature influence.
© 2018 UTC Fire & Security Americas Corporation, Inc.
in.
0.37
9.5 mm
0.75 in.
1.31 in.
19 mm
33.1 mm
(2)
(3)
2
in.
Wiring description
Figure 2 legend
# Colour
(1) 2X Copper
(2) 2X Silver
(3) 2X Silver
Package content
•
1X Magnetic contact
•
1X Magnet
•
4X Non magnetic screw
Specifications
Cable length
Switch close resistance:
DC106
DC106R4.7
Switch open resistance:
DC106
DC106R4.7
Mounted on non-ferromagnetic material
Approach distance Y (switch close)
Removal distance Y (switch open)
Approach distance Z (switch close)
Removal distance Z (switch open)
Contact type
Maximum switch voltage
Maximum switch current
Contact dimensions
Magnet dimensions
Borehole diameter
1 / 10
Z
Y
Description
Tamper, supervision line
Alarm, normally closed (DC106)
Alarm, normally closed (DC106R4.7)
2.5 m
< 2 Ω
4.7 kΩ ±10%
> 10 MΩ
9.4 kΩ ±10%
23 mm ±40%
29 mm ±40%
22 mm ±35%
26 mm ±35%
NC
50 V
0.5 A
Ø19, Ø9.5 x 33.1 mm
Ø19, Ø9.5 x 33.1 mm
9.5 mm
P/N 1069818 (ML) • REV D • ISS 23OCT18
