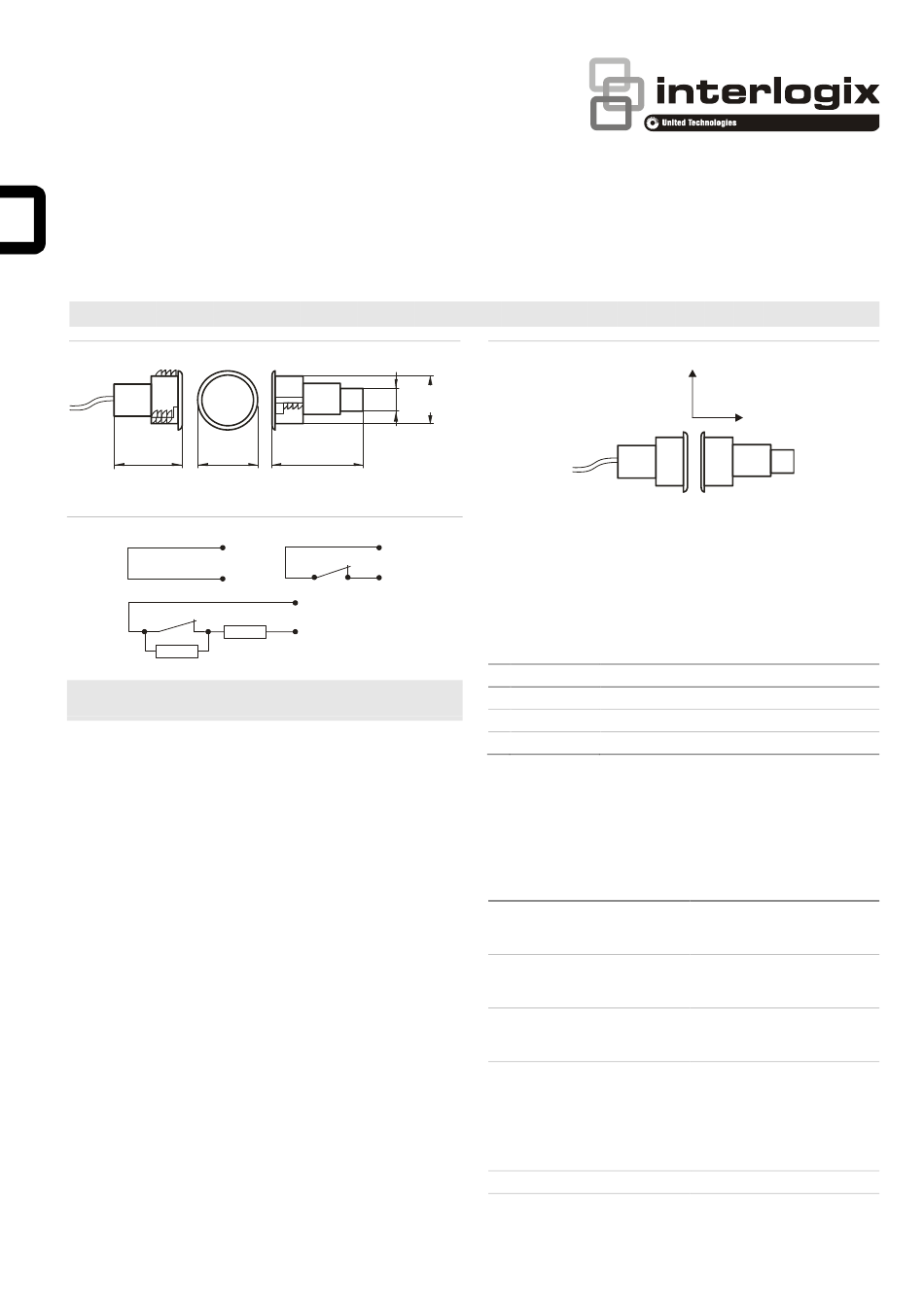

Interlogix DC107-Serie Installationsanleitung

DC107 Series Magnetic Contact Installation
Sheet
EN DE ES FR IT NL PL PT SV
1
1.13 in. 0.95 in.
28.6 mm 24.1 mm
3
(1)
4K7
4K7
EN: Installation Sheet
Description

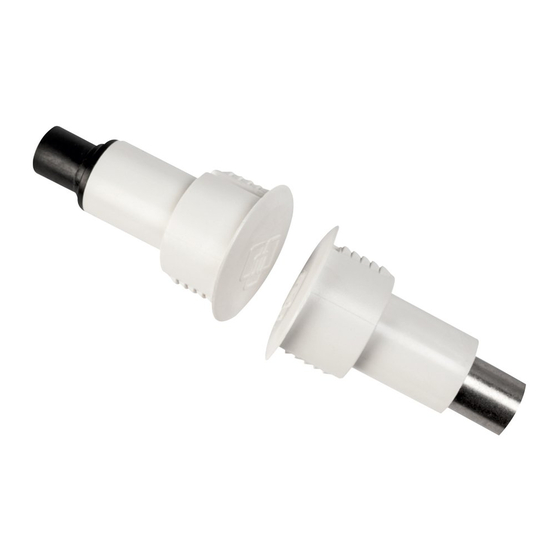

The DC107 series are flush mounted magnetic contacts that
can be connected to a burglar alarm system. The DC107
series can be used in ferromagnetic environments and doors.
For differences in the DC107 series see "Specifications" below.
Mounting
No special mounting tools are required.
The magnetic contact and the magnet should be mounted
directly across from each other. Select the desired mounting
positions and drill appropriate holes. Mount the magnet and the
contact in the holes.
During installation the switching distances have to be
individually determined for each contact.
When the installation is completed, the electrical switch
function of the magnetic contact must be checked (for
example, with a continuity checker or multimeter). Use of
mechanical force, for example when installing, can damage the
glass body of the reed switches.
Note: When installing the contact, please keep in mind that the
doors can bend under temperature influence.
© 2018 UTC Fire & Security Americas Corporation, Inc.
0.75 in.
19.1 mm
0.37 in.
9.4 mm
1.56 in.
39.7 mm
(2)
(3)
1 / 10
2
UTC recommends to check regularly that the magnetic contact
is working properly on the control panel and that the installers
advise their customers to do this.
Wiring description
Figure 3 legend
# Colour Description
(1) 2X Copper Tamper, supervision line
(2) 2X Silver Alarm, normally closed (DC107, DC107S60)
(3) 2X Silver Alarm, normally closed (DC107R4.7)
Package content
• 1X Magnetic contact Ø24 x 28.6 mm
• 1X Magnet Ø24 x 39.7 mm
Specifications
Cable length:
DC107, DC107R4.7
DC107S60
Switch close resistance:
DC107, DC107S60
DC107R4.7
Switch open resistance:
DC107, DC107S60
DC107R4.7
Mounted in ferromagnetic material
Approach distance Y (switch close)
Removal distance Y (switch open)
Approach distance Z (switch close)
Removal distance Z (switch open)
Contact type
Maximum switch voltage
P/N 1069819 (ML) • REV D • ISS 23OCT18
Z
Y
2.5 m
6 m
< 2 Ω
4.7 kΩ ±10%
> 10 MΩ
9.4 kΩ ±10%
13 mm ±25%
15 mm ±25%
10 mm ±35%
12 mm ±35%
NC
50 V
