Spaun SMS serie Technische Hinweise Seite 16

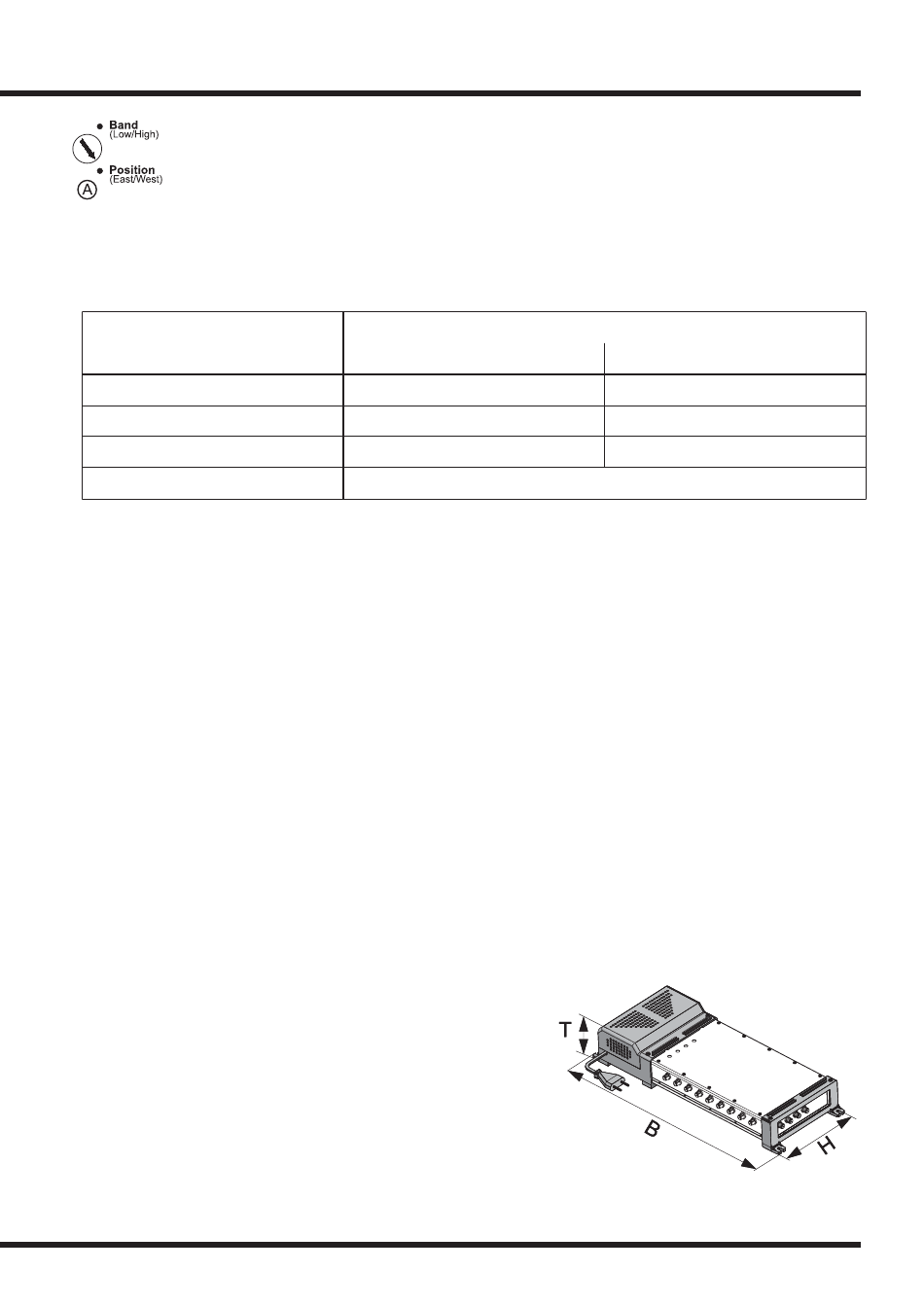

A mode selector for every receiver output (A...D/A...F/A...H) is present.
With this selector the reaction to 22kHz tone and ToneBurst may be
swapped to change the sat-system with the 22kHz tone. To apply the
new mode a reset must be done (interruption of receiver remote voltage
or interruption of mains power or DiSEqC command 'Reset'). In case of a
connected non DiSEqC DVB-receiver the selector must be in 'Band'
mode!
Signal
14/18 V
0 kHz/22 kHz
Tonburst A / Tonburst B
DiSEqC
• DiSEqC:
The multiswitches support DiSEqC level 2.0. Bi-directional communication with the
receiver is possible.
The multiswitches can be controlled by every DiSEqC receiver (including DiSEqC 1.0).
The DiSEqC 'Standby' command is supported.
When the multiswitch receives a valid DiSEqC command all analogue control signals
will be ignored until a reset is done.
The DiSEqC address is 14Hex.
DiSEqC is implemented according to DiSEqC Bus Specification 4.2.
Assembly
Do not mount the multiswitches in damp conditions. Allow adequate
ventilation.
It is convenient to use the push-on F-connectors ZSV 2S when the
multiswitches are mounted vertically.
Dimensions
SMS 9400 NF:
SMS 9600 NF:
SMS 9800 NF:
SMS 9940 NF:
SMK 9940 F:
SMK 9960 F:
DiSEqC is a trademark of EUTELSAT.
Whilst every effort has been made to provide accurate information, no responsibility is accepted for errors or
omissions.
vertical/horizontal
low-Band/high-Band
SAT-System A/B
440x168x75 mm (BxHxT)
440x168x75 mm (BxHxT)
440x168x75 mm (BxHxT)
440x168x75 mm (BxHxT)
338x168x64 mm (BxHxT)
338x168x64 mm (BxHxT)
Selection
Band
uneffected
Position
vertical/horizontal
SAT-System A/B
low-Band/high-Band
