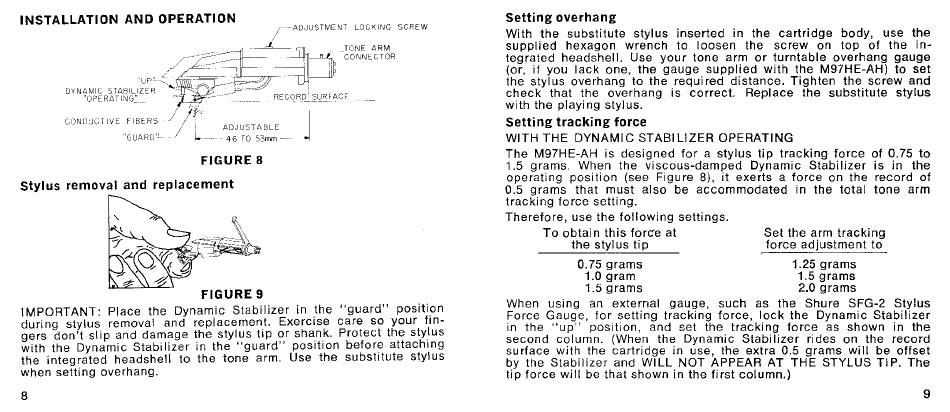

I N S T A L L A T I O N A N D OPERATION
~ O U U S T M E N T L O L K N G S C R E W
C O N l > l i T l V E F I B E R S
l i
A D J U S T O B L E
F I G U R E 8
S t y l u s r e m o v a l a n d r e p l a c e m e n t
IMPORTANT: Place the Dynamic Stabilizer i n the "guard"
position
during stylus removal and replacement. Exercise care so your fin-
gers don't slip and damage the stylus t l p or shank. Protect the stylus
with the D y n a m ~ c Stabilizer i n the "guard" posltlon before attaching
the integrated headshell to the tone arm. Use the subst~tute stylus
when setting overhang.
S e t t i n g o v e r h a n g
With the substitute stylus inserted i n the cartridge body, use the
supplied hexagon wrench t o loosen the screw on t o p o f the in-
tegrated headshell. Use your tone arm o r turntable overhang gauge
(or, i f you l a c k one, the gauge supplied with the M97HE-AH) to set
the stylus overhang to the required distance. Tighten the screw and
check that the overhang i s correct. Replace the substitute stylus
w ~ t h the playing stylus.
S e t t i n g t r a c k i n g f o r c e
WITH THE DYNAMIC STABILIZER OPERATING
The M97HE-AH i s designed for a stylus t i p tracking force of 0.75 t o
1.5 grams. When the VISCOUS-damped D y n a m ~ c S t a b i l ~ z e r i s i n the
operating posltlon (see F ~ g u r e
8),
~t exerts a force on the record of
0.5 grams that must also be accommodated i n the total tone arm
tracklng force settlng.
Therefore, use the following settings.
T o obtain this force at
Set the arm tracking
the stylus t i p
force adjustment t o
0.75 grams
1.25 grams
1.0 gram
1.5 grams
1.5 grams
2.0 grams
When using an external gauge, such as the Shure SFG-2 Stylus
Force Gauge, for setting t r a c k ~ n g force, l o c k the Dynamic Stabilizer
i n the
up" p o s ~ t i o n , and set the tracking force as shown i n the
second column. (When the Dynamic S t a b l l ~ z e r rides on the record
surface with the c a r t r ~ d g e I n use, the extra 0.5 grams w i l l be offset
by the Stabilizer and WILL NOT APPEAR AT THE STYLUS TIP. The
tip force w i l l be that shown i n the first column.)
9
