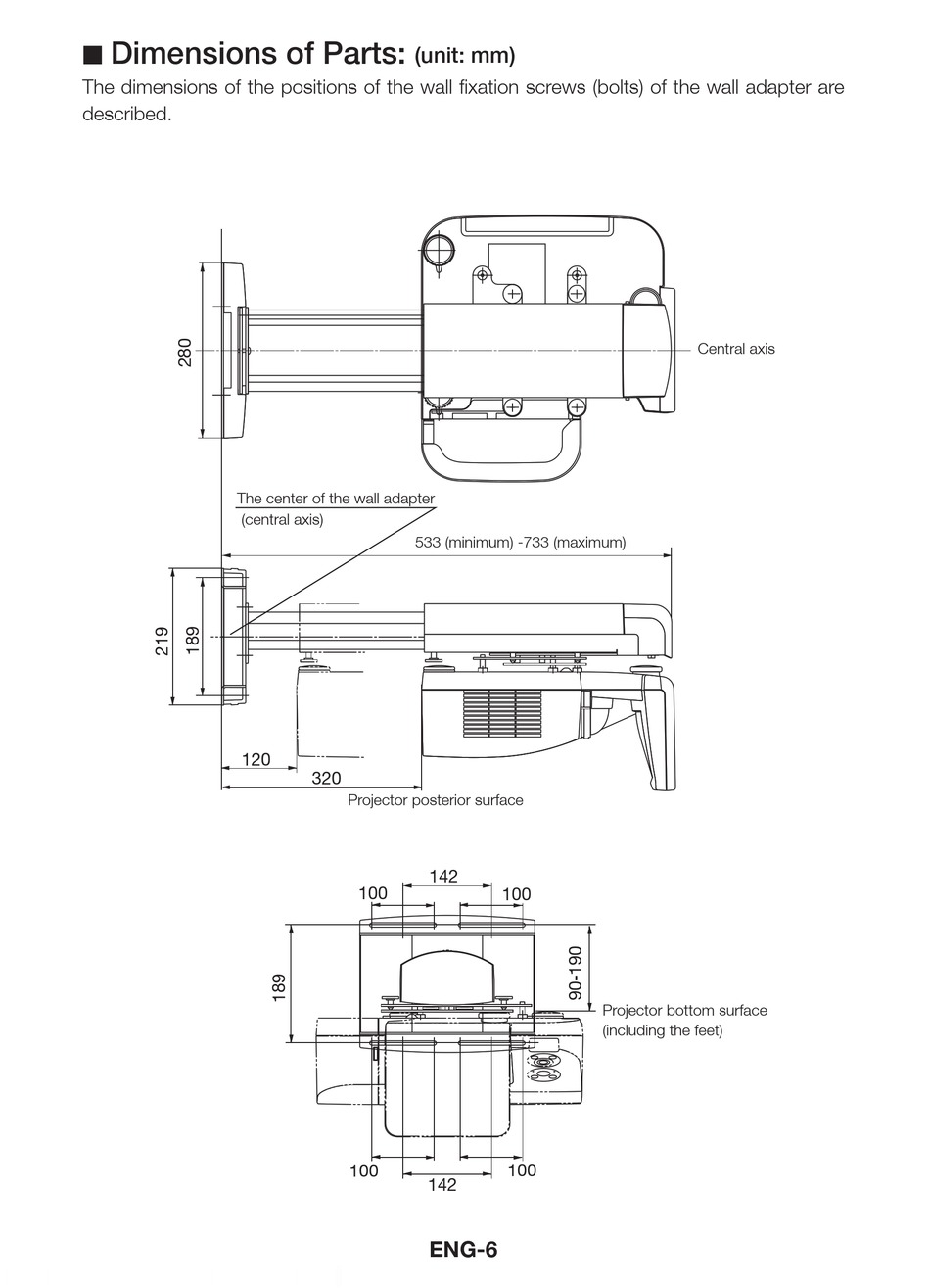

 Dimensions of Parts:

The dimensions of the positions of the wall fixation screws (bolts) of the wall adapter are
described.
The center of the wall adapter
(central axis)
120
(unit: mm)
533 (minimum) -733 (maximum)
320
Projector posterior surface
142
100
100
142
ENG-6
100
Projector bottom surface
(including the feet)
100
Central axis
