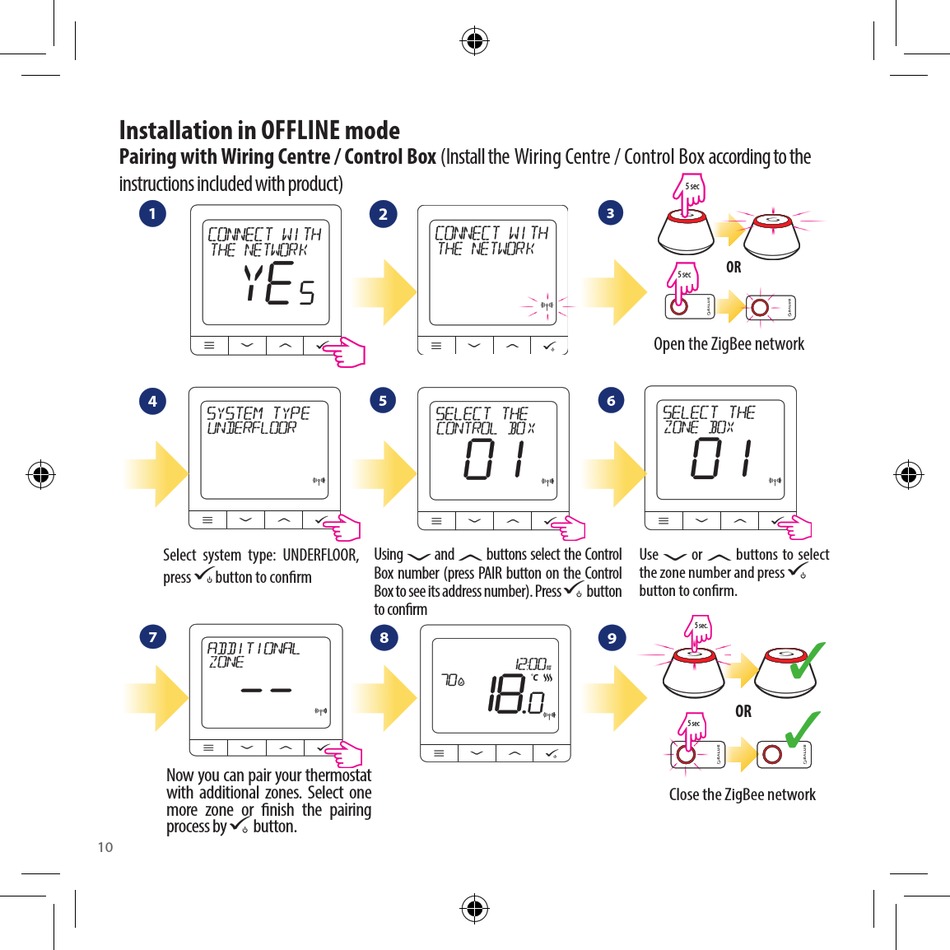

Installation in OFFLINE mode
Pairing with Wiring Centre / Control Box (Install the Wiring Centre / Control Box according to the
instructions included with product)
1
4
Select system type: UNDERFLOOR,
press button to confirm
7
Now you can pair your thermostat
with additional zones. Select one
more zone or finish the pairing
process by button.
10
2
5
Using and buttons select the Control
Box number (press PAIR button on the Control
Box to see its address number). Press
to confirm
8
5 sec
3
OR
5 sec
Open the ZigBee network
6
Use or buttons to select
the zone number and press
button button to confirm.
5 sec.
9
OR
5 sec
Close the ZigBee network
