Abisolier- und Crimpautomat / Stripping and crimping machine
5.
Bedienungsanleitung
5.1
Inbetriebnahme
• Abfallbehälter einschieben.
• Drehknopf Querschnitt aufstecken.
• Das Netzkabel an die Maschine und an die
Stromversorgung anschließen. (Die Daten auf
dem Typenschild müssen mit dem Stromnetz
übereinstimmen.)
5.2
Maschine einschalten
• Den Netzschalter auf dem Netzfilter-Modul
einschalten.
• Wenn
nur
eine
Querschnitt
leuchtet,
betriebsbereit.
5.3
Einstellen des Querschnittes
• Den Schutzdeckel öffnen.
• Den Rasthaken lösen und das Magazin
entnehmen.
• Den Drehknopf nach innen drücken und drehen
bis er einrastet.
• Magazin wieder einlegen und Schutzdeckel
schließen.
crimpfix25.doc / Mai-05
Kontrolllampe
für
ist
die
Maschine
Rasthaken / Lock pin
Aderendhülse / Ferrule

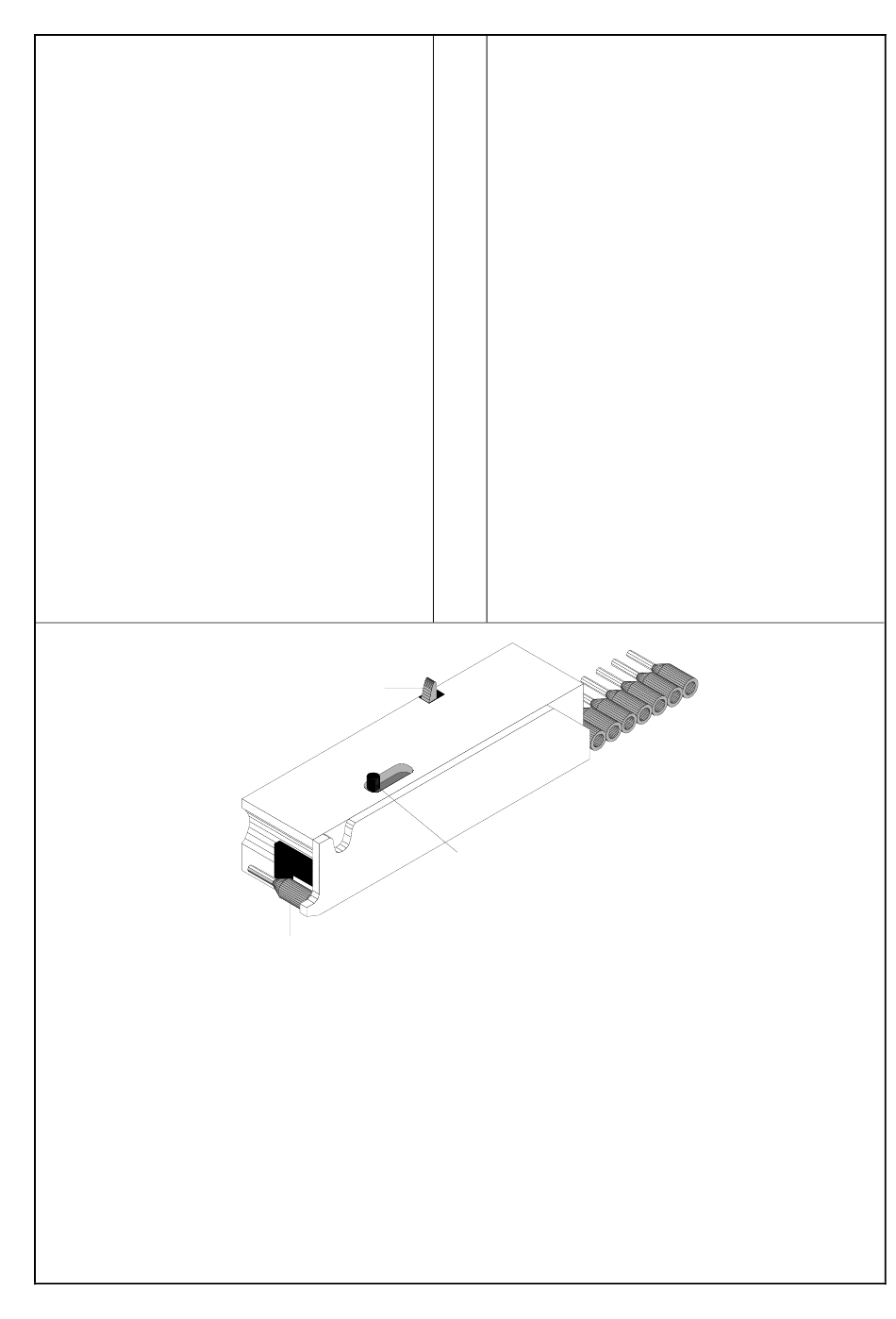

Bild / Picture 3: Magazin / Magazine
5.
Operating instruction
5.1
Putting into operation
• Put in the stripping-waste container.
• Put on the turning knob for the cross-section.
• Connect the mains cable to the machine and
the electrical supply. (The data on the type
plate must agree with the mains supply.)
5.2
Starting the machine
• Actuate the main switch on the filter module.
• If only one control lamp lights, the machine is
den
ready for operation.
5.3
Adjustment of the cross-section
• Open the protecting cover.
• Release the lock pin and remove the magazine.
• Push in the knob for the cross section and turn
it until it snaps in.
• Put in the magazine and close the protecting
cover.
Zapfenschraube / Shoulder screw
Crimpfix 2,5
6
