Run Express Setup
Run Express Setup

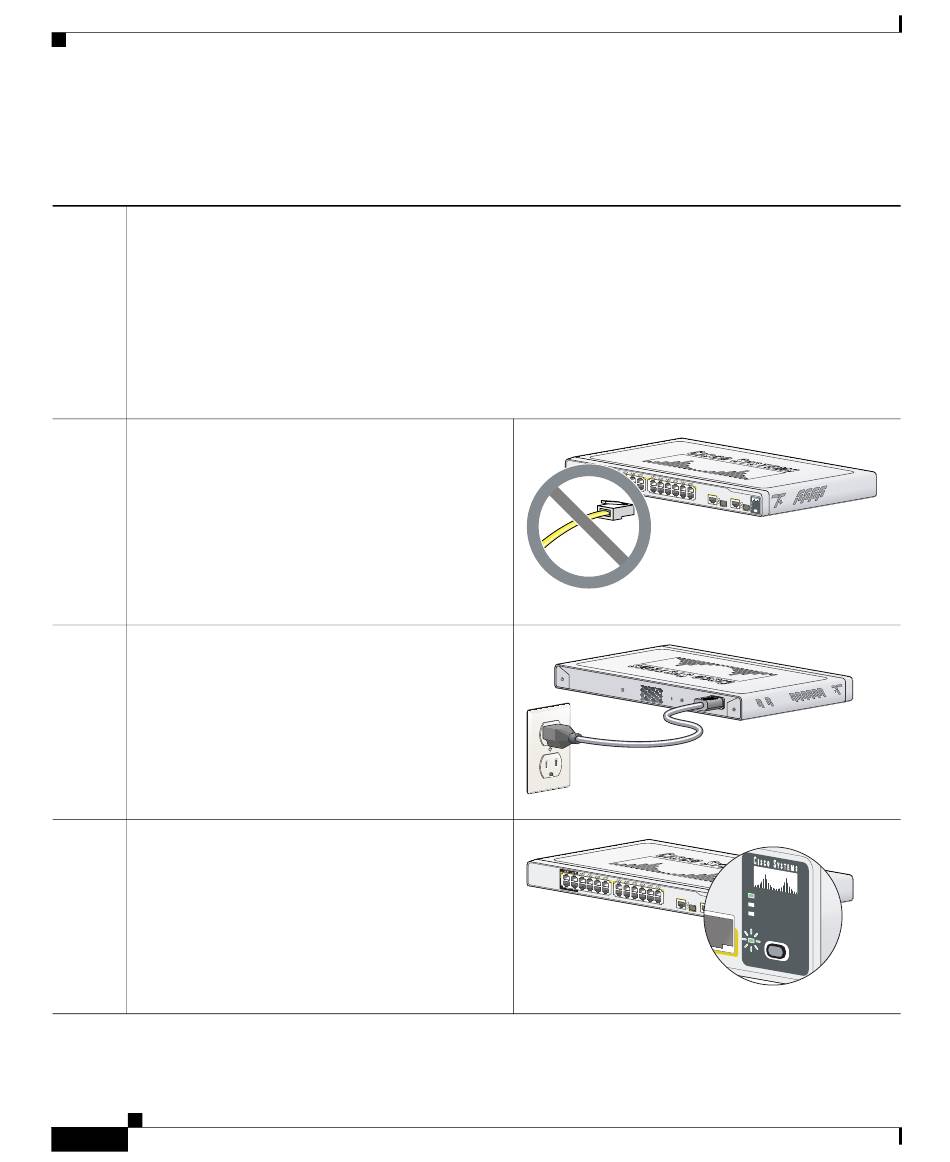

You need this equipment to set up the switch:
Step 1
A PC with Windows 2000 or XP installed.
•
A web browser (Internet Explorer 5.5, 6.0, Netscape 7.1 or later) with JavaScript enabled.
•
A straight-through or crossover Category 5 Ethernet cable to connect your PC to the
•
switch.
You should disable any pop-up blockers or proxy settings in your browser software and any
wireless client running on your PC.
Make sure that nothing is connected to the
Step 2
switch.
Power the switch.
Step 3
When the switch powers on, it begins the
power-on self-test (POST). POST lasts
approximately 1 minute. During POST, the
port and SYSTEM LEDs blink. When POST
completes, the SYSTEM LED turns solid
green.
Wait for the SETUP LED to blink green.
Step 4
When POST has completed and the SYSTEM
LED is solid green, the SETUP LED blinks
green. The switch is ready to be configured.
(If the SETUP LED stops blinking, you can
still continue with the next step.)
Getting Started Guide for the Catalyst Express 500 Switches
1-2
Chapter 1
2
1
1X 3 4
6
5 8
7
9 10
11 12
14
11X 13
13X 15 16
17 18
20
19 22
2X 21
23 24
POW ER
OVER ETHE RNE
T 23X
Cat aly
12X st Exp
14X
25
24X
25
2
1
1X 3 4
5 6
8
7
9 10
12
11
14
11X 13
13X 15 16
18
17
19 20
2X 21 22
24
POW ER 23
OVER ETH ERN
ET 23X
Cis co
12X 296 0
14X
seri es
+Po E-4
24X 25
25 SYSTE M
26 ALERT
PoE
26 RPS
SETUP
Getting Started Guide
res s 500
SERI ES
26 SYSTEM
ALERT
PoE
26 RPS
SETUP
o E 4
S Y S T E M
A L E R T
P o E
S E T U P
78-17084-03
