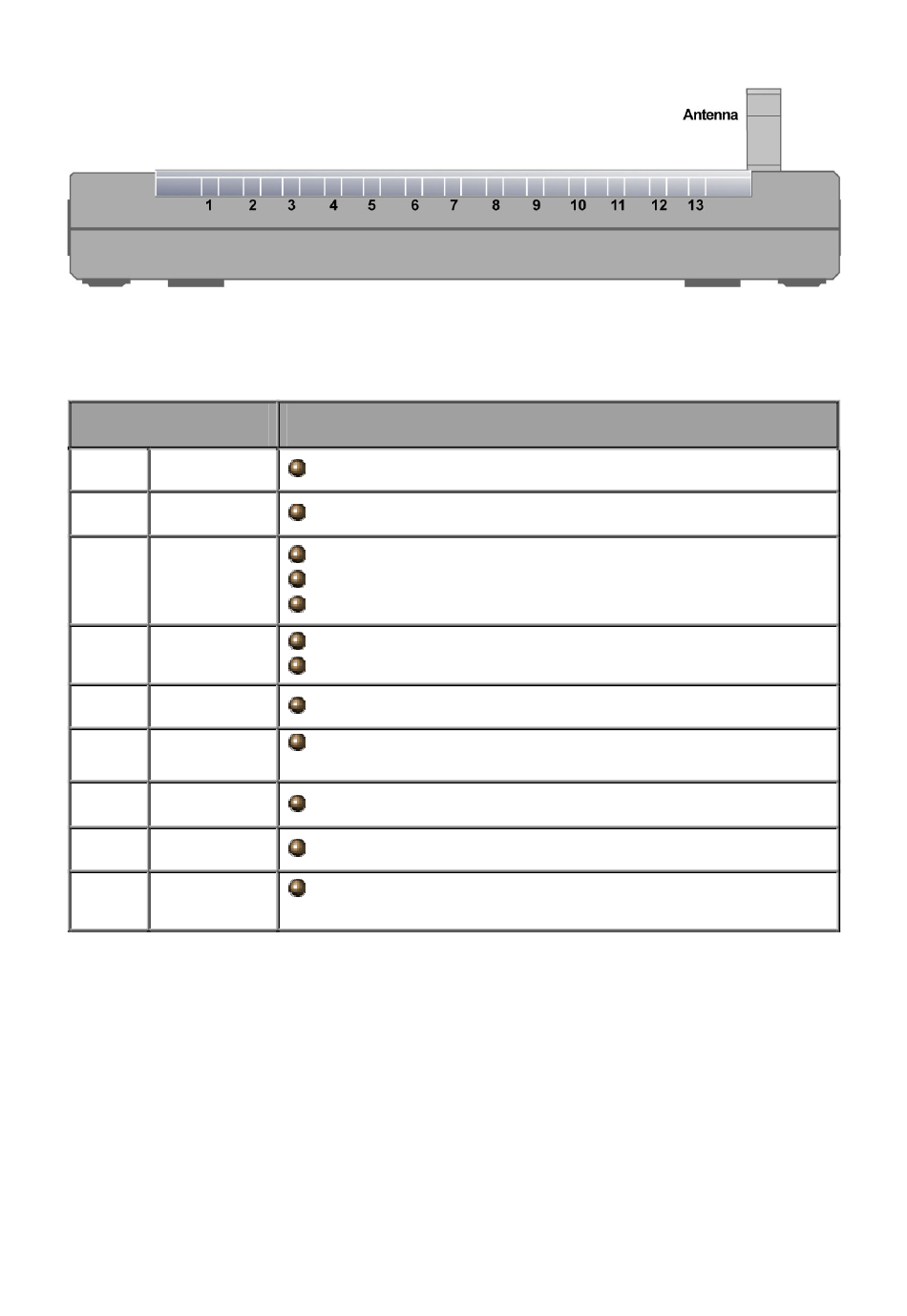

Front LED

LED
1 PWR：
2 SYS：
LAN Port
3-6
1-4：
7 WLAN：
8-9 Phone：
10 LINE：
11 VoIP：
12 PPP：
13 ADSL：
Lights when the power is ON.
Lights when the system is ready.
Steady glow when connected to an Ethernet device.
Glows green for 100Mbps; Orange for 10Mbps.
Blinking light when data is Transmitted / Received.
Lit green when the wireless connection is established.
Flashes when sending/receiving data.
Lit green when the phone is off-hook.
Lit when the inbound and outbound calls transmitted
through PSTN.
Lit when SIP registration is OK.
Steady glow when there is a PPPoA / PPPoE connection.
Lights when successfully connected to an ADSL DSLAM
(linesync).
