Chapter 3. Routine Maintenance
Maintenance Components—Large Extractors
3.1.6.

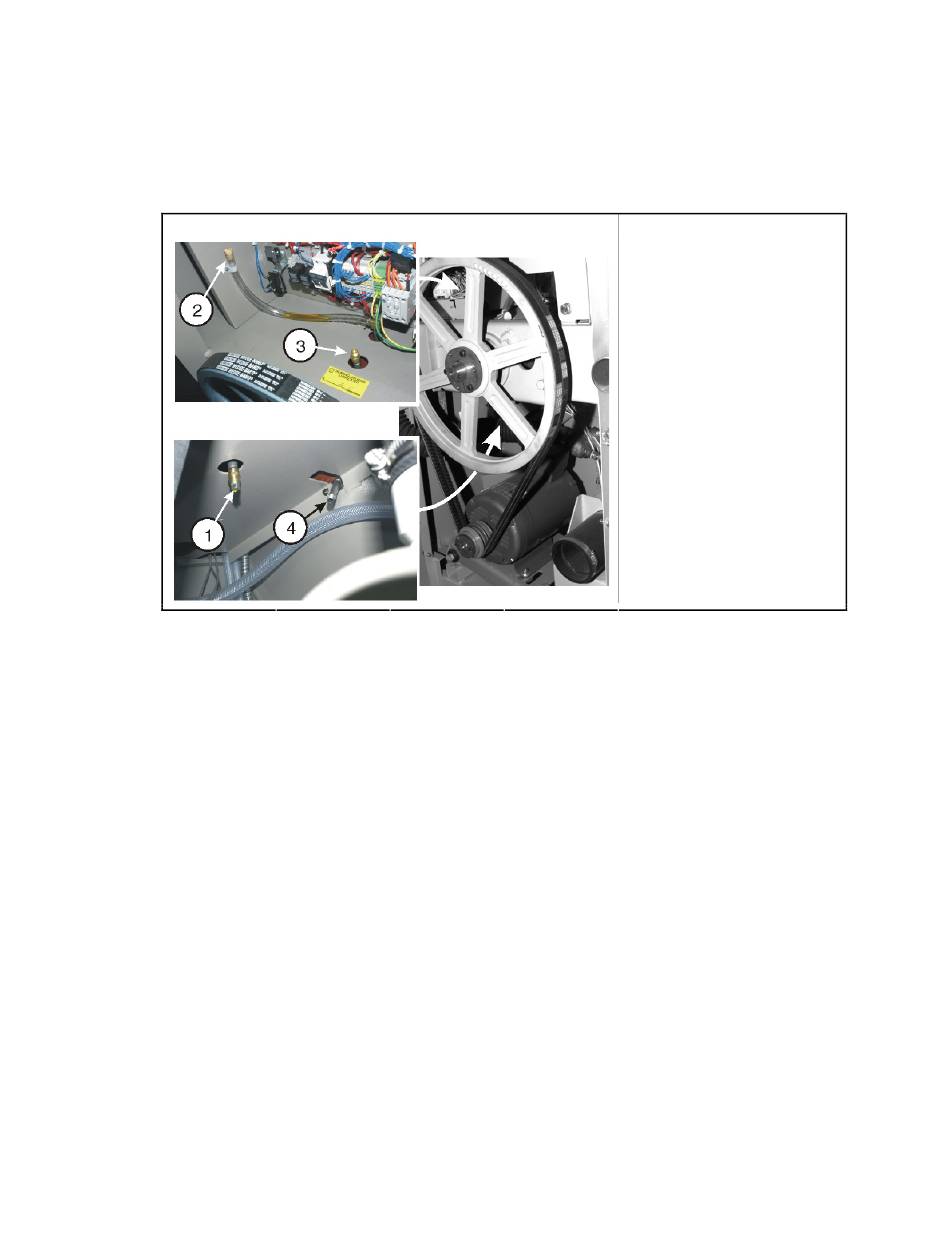

Figure 14: Oil Maintenance Areas for Bearing Assembly. A 30022T5E is shown. Your machine can

look different.

Views of Maintenance Areas
.
PELLERIN MILNOR CORPORATION
— End of BIUUUM09 —
32
[Document BIWUUM03]
Legend
1. Oil drain port. When you
remove the used oil, do
not let the oil get on the
motor or other

components.

2. Oil fill tube and stopper.
Do not let new oil get on
components in the
console.
3. Housing vent port
4. Seal cavity drain tube.
Remove comtamination
that flows from the tube.
