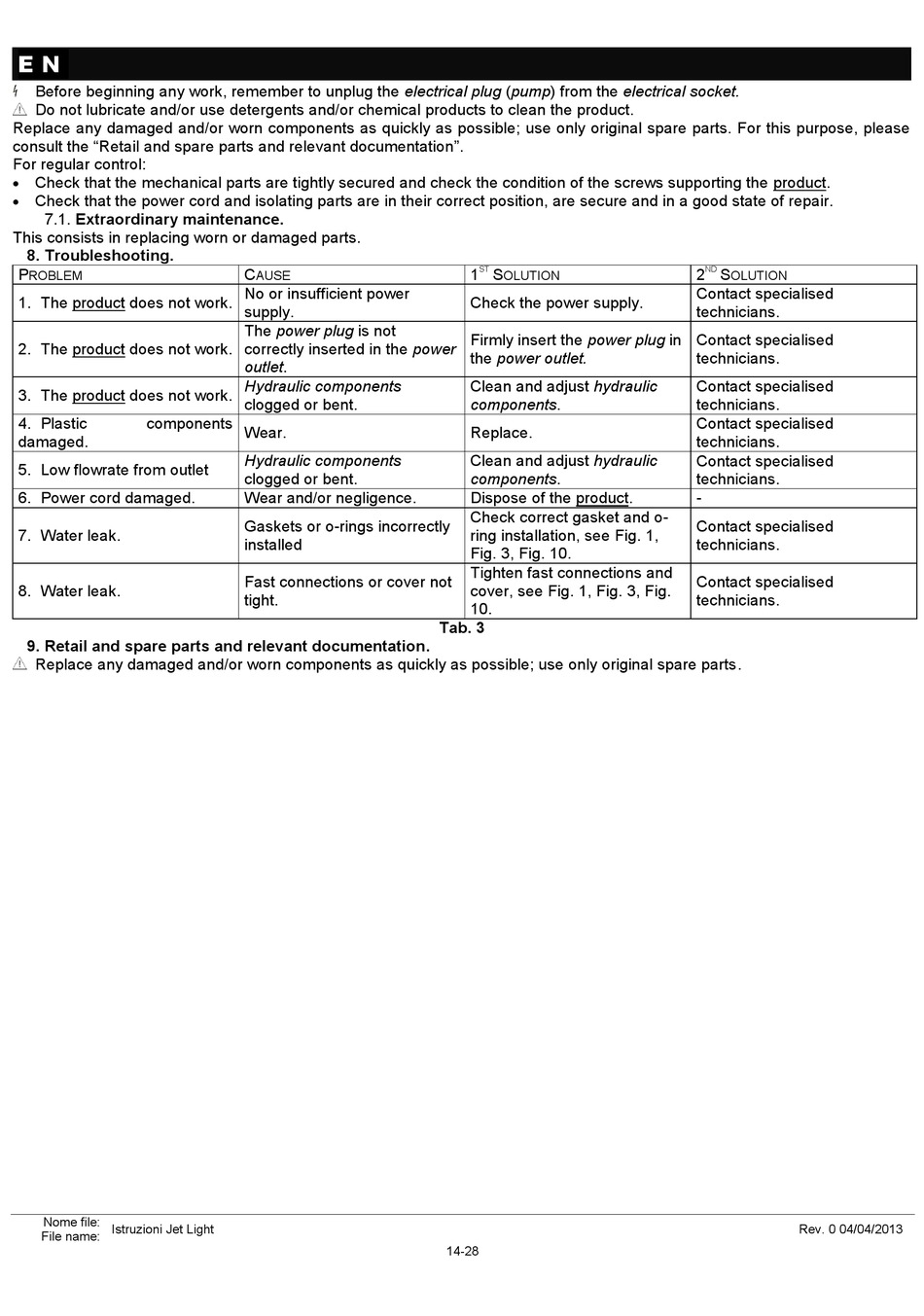

Troubleshooting; Retail And Spare Parts And Relevant Documentation - Shott JET LIGHT Benutzerhandbuch

E N
Before beginning any work, remember to unplug the electrical plug (pump) from the electrical socket.
Do not lubricate and/or use detergents and/or chemical products to clean the product.
Replace any damaged and/or worn components as quickly as possible; use only original spare parts. For this purpose, please
consult the "Retail and spare parts and relevant documentation".
For regular control:
 Check that the mechanical parts are tightly secured and check the condition of the screws supporting the product.
 Check that the power cord and isolating parts are in their correct position, are secure and in a good state of repair.
7.1. Extraordinary maintenance.
This consists in replacing worn or damaged parts.

8. Troubleshooting.

P
ROBLEM
1. The product does not work.
2. The product does not work.
3. The product does not work.
4. Plastic components
damaged.
5. Low flowrate from outlet
6. Power cord damaged.
7. Water leak.
8. Water leak.

9. Retail and spare parts and relevant documentation.

Replace any damaged and/or worn components as quickly as possible; use only original spare parts.
Nome file:
Istruzioni Jet Light
File name:
C
AUSE
No or insufficient power
supply.
The power plug is not
correctly inserted in the power
outlet.
Hydraulic components
clogged or bent.
Wear.
Hydraulic components
clogged or bent.
Wear and/or negligence.
Gaskets or o-rings incorrectly
installed
Fast connections or cover not
tight.
ST
1 S
OLUTION
Check the power supply.
Firmly insert the power plug in
the power outlet.
Clean and adjust hydraulic
components.
Replace.
Clean and adjust hydraulic
components.
Dispose of the product.
Check correct gasket and o-
ring installation, see Fig. 1,
Fig. 3, Fig. 10.
Tighten fast connections and
cover, see Fig. 1, Fig. 3, Fig.
10.
Tab. 3
14-28
ND
2 S
OLUTION
Contact specialised
technicians.
Contact specialised
technicians.
Contact specialised
technicians.
Contact specialised
technicians.
Contact specialised
technicians.
-
Contact specialised
technicians.
Contact specialised
technicians.
Rev. 0 04/04/2013
