Rear View - SSANGYONG Audio S009 Benutzerhandbuch

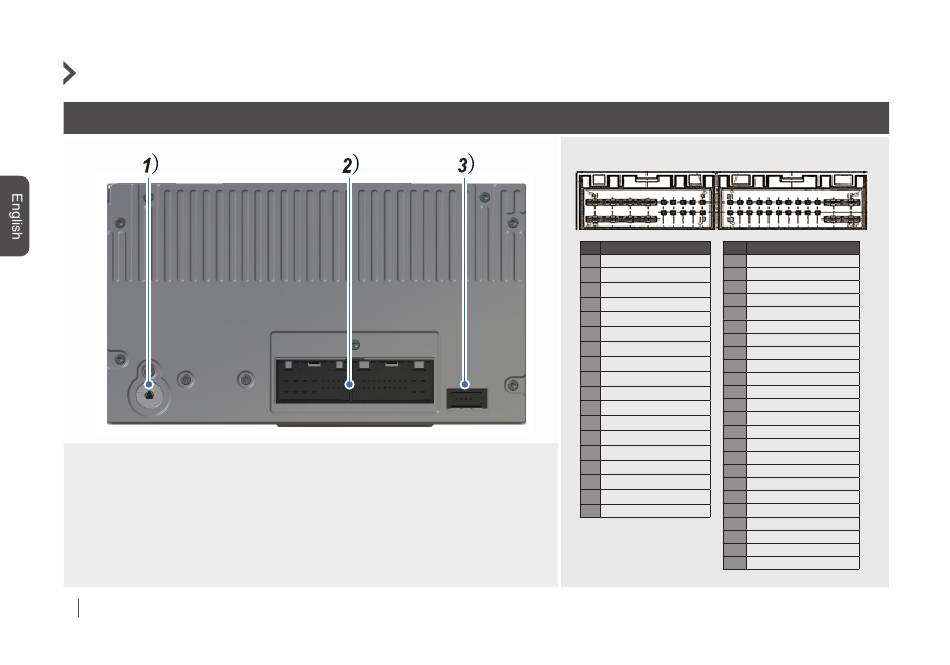

Location of controls
1) Radio Antenna jack
To plug the radio antenna cable
2) I/O connector(42pin)
3) USB port
To connect a USB connector for USB host function
6
Audio S014

Rear view

A
1 RearRightSpeaker+
2 FrontRightSpeaker+
3 FrontLeftSpeaker+
4 RearLeftSpeaker+
5
6
7
8
9 RemotecotrolSignal
10 RearRightSpeaker-
11 FrontRightSpeaker-
12 FrontLeftSpeaker-
13 RearLeftSpeaker-
14
15
16
17
18 RemoteControlGND
Pin Name B Pin Name
1 -
2 -
3 llumination+
4 -
5 -
BTMic+
6 -
BTMic-
7 SPEED
Aux_Left
8 -
Aux_Right
9 -
10 AntennaPower
11 ACC.
12 Back-up(B+)
13 -
14 -
15 llumination-
BTMIC-Shield
16 -
Aux_Shield
17 -
Aux_LR_GND
18 -
Aux_DET_IN 19 -
20 -
21 -
22 -
23 -
24 Ground
