The destratification fan is despatched in a
EN
cardboard box.
• Remove component from box.
• Adjust all outlet louvres to achieve desired
air distribution and ensure blades are not
resonating.
• Turn the power/spur on. The
destratification fan will now operate and
automatically switch off when the set
temperature has been reached.
• To check operation of the DS type unit,
rotate room thermostat dial to minimum
setting - fan should operate. Rotate room
thermostat dial to maximum setting - the
fan should turn off.
• Finally turn the room thermostat to
approximately 4° to 5° above the desired
room temperature. If the fan does not

Parts List

Product
Fan assembly
Louvre spring
Louvre blade
Thermostat
Table 3 Parts list
Page No 6 Reznor, DS-4, Installation Manual, ML 2019-11, D301232 ENGLISH
DS3-4
01-27092
03-401US-201830
operate in this order, check wiring details in
figure 3.
The unit is now ready for operation.
The Manufacturer cannot be held responsible
from any matters arising from the revision
to or introduction of new Laws, Standards,
Directives, Codes of Practice or other
recommendations.
The information
contained in this
technical manual
is designed to
aid a qualified or
competent service
technician.
DS4-4
01-27093 01-27096
03-401EU-195046
03-401US-196233
28-16-029

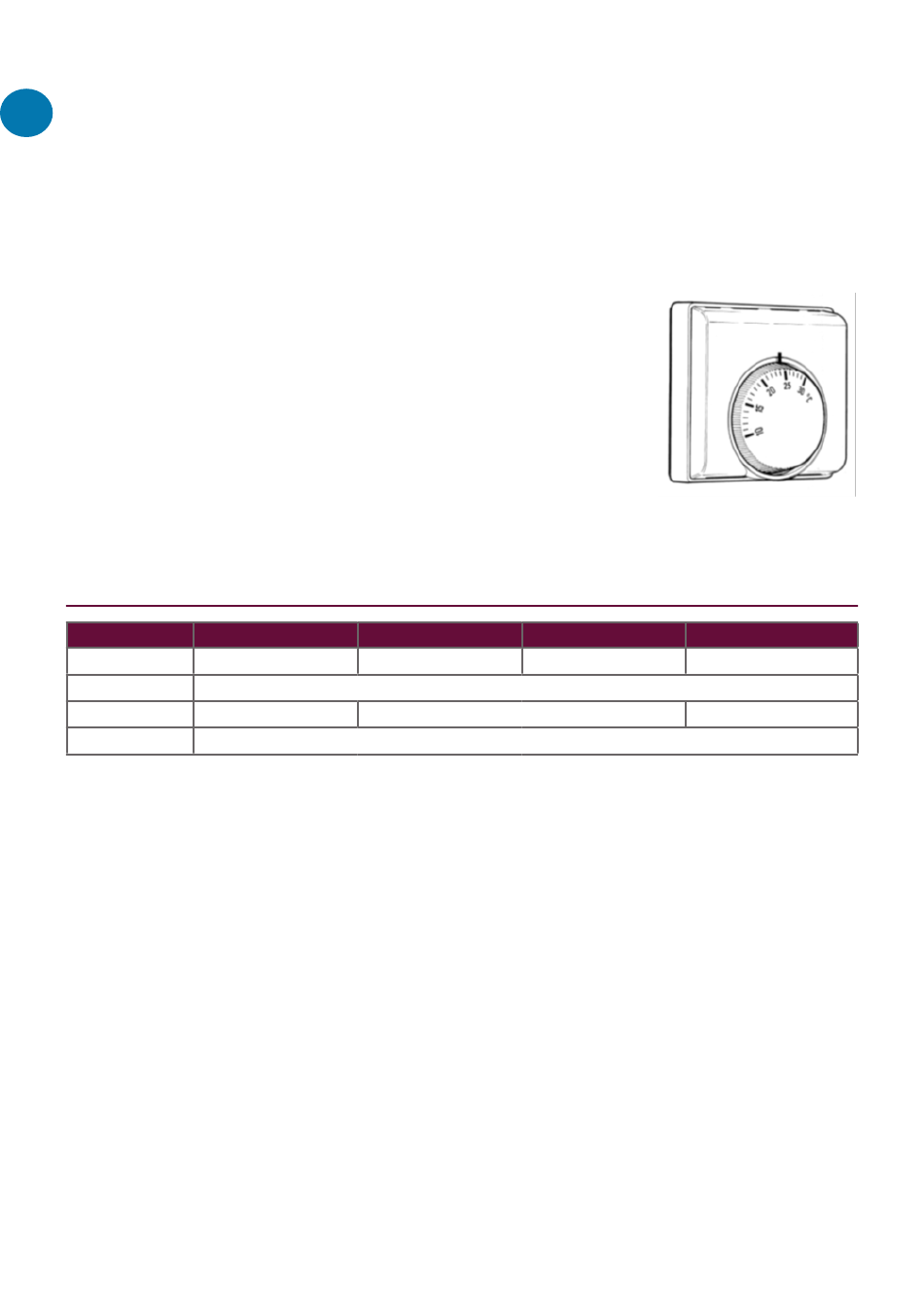

Figure 4 Thermostat
DS6-4 DS10-4
01-27094
03-401US-1024920
