Connecting the GreenLinkBox ELT

4.1

Connecting the GreenLinkBox ELT directly to the PC

Connect the GreenLinkBox ELT to the network card of the PC using the yellow network cable (cross cable). The
figure below shows the connection scheme.
Disconnect the power before installation.

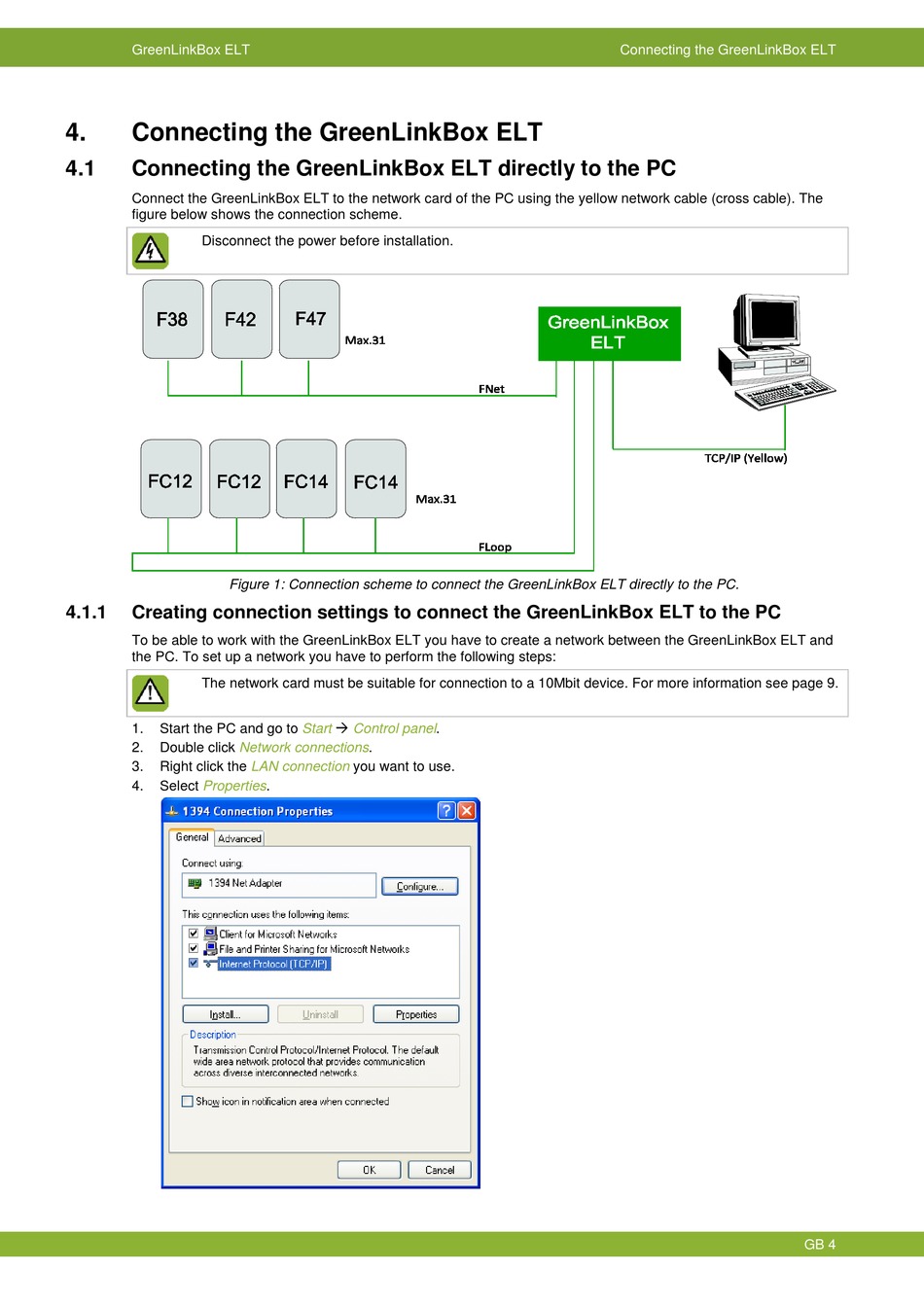

Figure 1: Connection scheme to connect the GreenLinkBox ELT directly to the PC.
4.1.1 Creating connection settings to connect the GreenLinkBox ELT to the PC
To be able to work with the GreenLinkBox ELT you have to create a network between the GreenLinkBox ELT and
the PC. To set up a network you have to perform the following steps:
The network card must be suitable for connection to a 10Mbit device. For more information see page 9.
1. Start the PC and go to
2. Double click Network
3. Right click the
4. Select Properties.

Start Control panel.
connections.
LAN connection you want to use.
Connecting the GreenLinkBox ELT
