3. Set-Up and Use
NOTE

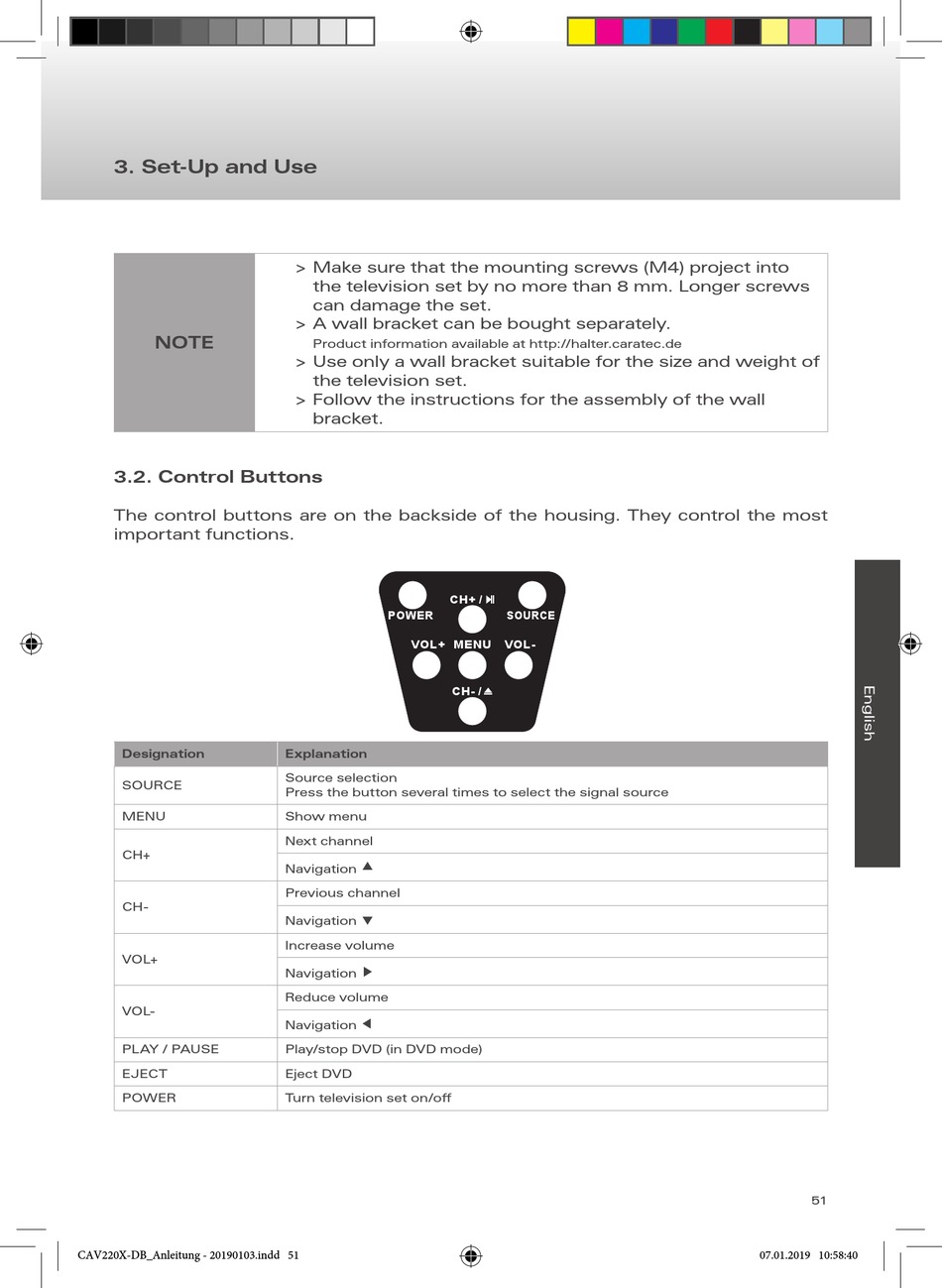

3.2. Control Buttons

The control buttons are on the backside of the housing. They control the most
important functions.
Designation
SOURCE
MENU
CH+
CH-
VOL+
VOL-
PLAY / PAUSE
EJECT
POWER
CAV220X-DB_Anleitung - 20190103.indd 51
> Make sure that the mounting screws (M4) project into
the television set by no more than 8 mm. Longer screws
can damage the set.
> A wall bracket can be bought separately.
Product information available at http://halter.caratec.de
> Use only a wall bracket suitable for the size and weight of
the television set.
> Follow the instructions for the assembly of the wall
bracket.
CH+ /
POWER
VOL+ MENU
CH- /
Explanation
Source selection
Press the button several times to select the signal source
Show menu
Next channel

Navigation
Previous channel

Navigation
Increase volume

Navigation
Reduce volume

Navigation
Play/stop DVD (in DVD mode)
Eject DVD
Turn television set on/off
SOURCE
VOL-
51
